Description
Aeroflow’s range of oil pans available for most popular V8 engines are the perfect choice for street or track driven high-performance engines.

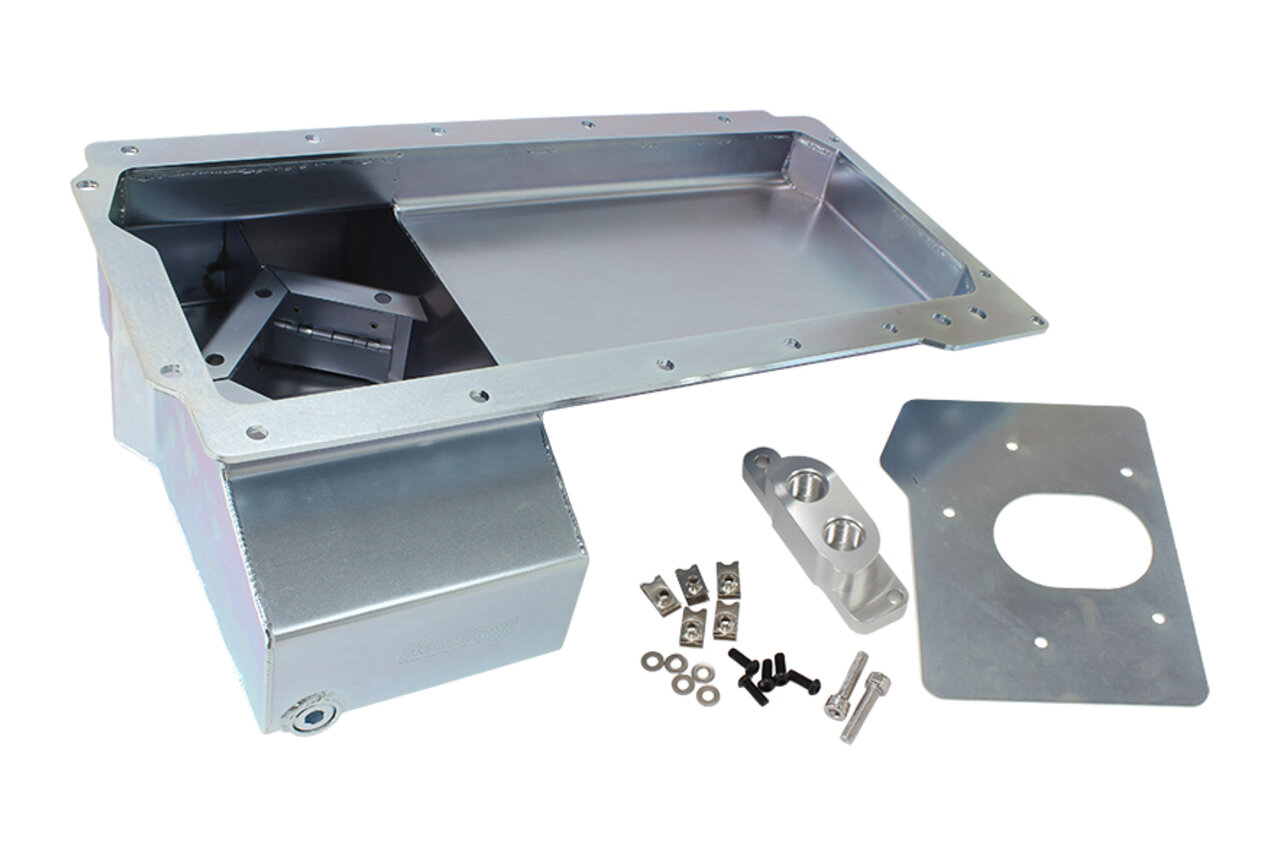

This fabricated front sump oil pan designed to suit GM LS Chev engines used in engine conversions in VB-VT Holden Commodore and other front sump vehicles. It features trap doors which keep oil at the pickup during hard acceleration and braking. Designed with wings to allow extra oil capacity without affecting ground clearance and help maintain oil temperature.
The OEM windage tray may be used with this pan, or purchase separately Aeroflow Performance windage tray AF82-2020 for improved oil control in any application. Aeroflow Performance makes an oil pick up to suit this race pan, this is sold separately as AF82-2409. It will also accept the standard OEM oil pick up (GM12572654).
Features
- Capacity 6.12L
- Extra Oil Capacity Wings
- Trap doors to prevent oil slosh
- 1/4″ NPT dipstick provision (requires the use of an aftermarket dipstick sold separately AF64-2123 or AF64-2123BLK).
This race oil pan will utilises a different oil filter setup from the factory OEM location due to limited space in conversion applications.
Included in the kit is an oil block adapter with two female -10 ORB to run an external oil filter and/or oil cooler such as AF64-4112, AF64-2075 or AF64-2061. This will need to be adapted to suit your application. Aeroflow Performance also have several other options available for remote mounting the oil filter:).
- AF82-2022 – similar to the one included in this kit instead of the oil filter hanging down vertically it mounts the oil filter horizontally or at a 90-degree angle.
- AF82-2013 – has 2 x female -10 ORB fittings attached to the block. This will allow an external oil filter and/or oil cooler setup to be ran such as AF64-4112, AF64-2075 or AF64-2061. This will need to be adapted to suit your application.
- AF82-2009 – GM LS 90-degree oil block adapter, this allows two female -10 ORB fittings placed 90-degree (Horizontal) position.
- AF82-2030 – GM LS slimline oil block adapter is perfect for tight clearances with -10AN male fittings attached to a very slim plate.
Aeroflow Part Number: AF82-2016
