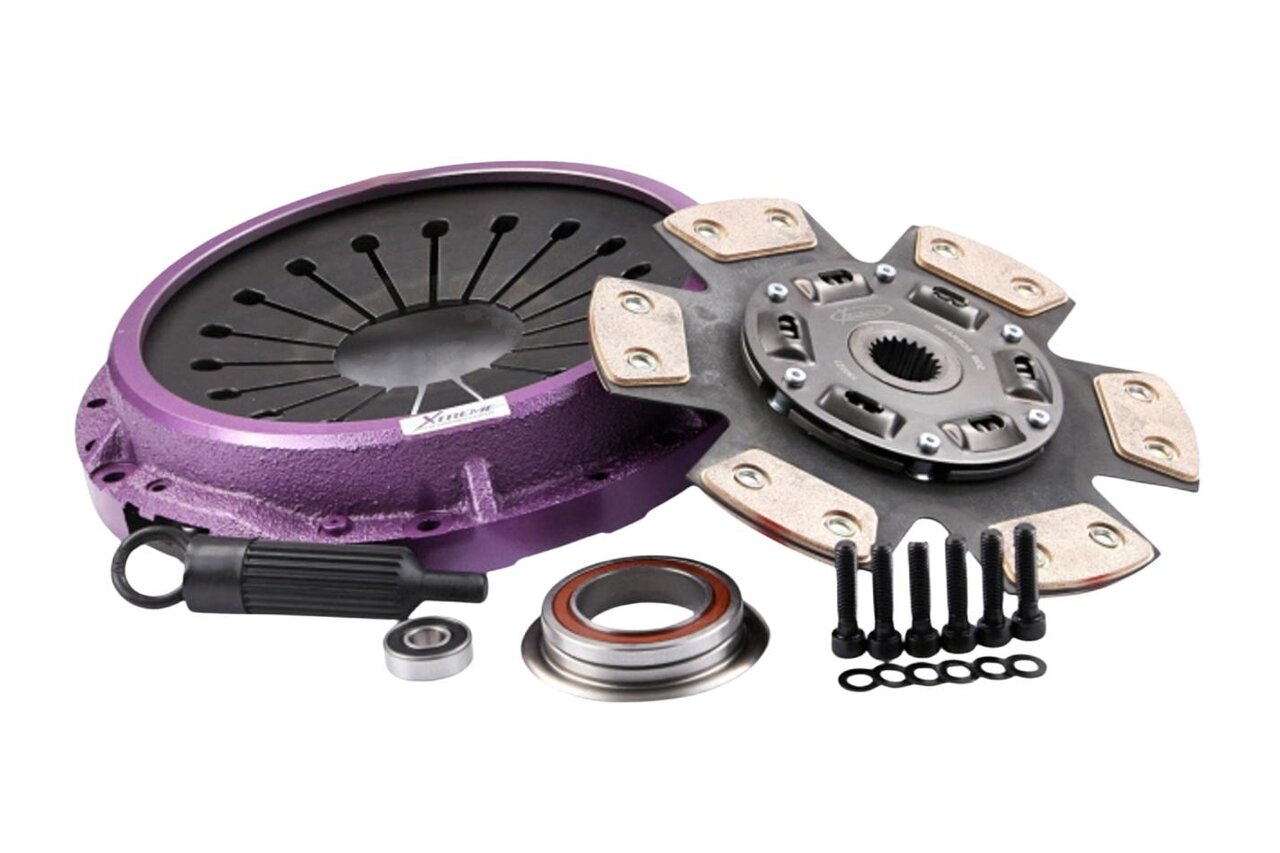

Xtreme Clutch Kit Sprung Ceramic suit Toyota Chaser Supra Soarer Cressida 1JZ 2.5L

Description

Xtreme Clutch Kit Sprung Ceramic suit Toyota Chaser Supra Soarer Cressida 1JZ 2.5L.

Xtreme Clutch Performance Clutches are built using the highest quality components, and undergo extensive testing to ensure they live up to their name. With friction disc options available from standard, through organic and heavy duty ceramic, along with pressure plates to suit even the highest power applications, flywheels, replacement bolts, and more, Xtreme Clutch have you covered. T.I. Performance proudly stocks the Xtreme Clutch range.

Xtreme Performance Sprung Ceramic Clutch Kit -Pull Type Clutch
Track Use Only

Suits the following vehicles:

• Toyota Chaser Tourer V (JZX100R & JZX90R). Engine: IJZGTE 2.5L 6 Cyl
• Toyota Supra GT Twin Turbo JZA70R. Engine: 1JZGTE 2.5L 6 Cyl
• Toyota Cresta JZX90R. Engine: 1JZGE 2.5L 6 Cyl
• Toyota Cresta Roulant G JZX100R. Engine: 1JZGTE 2.5L 6 Cyl
• Toyota Mark II / Cressida (JZX110R, IR-V JZX110R, Tourer V JZX90R, Tourer V JZX100R). Engine: 1JZGTE 2.5L 6 Cyl
• Toyota Soarer (JZZ30R & GT-T JZZ30R). Engine: 1JZGTE 2.5L 6 Cyl
• Toyota Verossa VR25 JZX110R. Engine: 1JZGTE 2.5L 6 Cyl

Specifications:

• Flywheel Step (mm): +0.5
• Clutch Disc Diameter (mm): 236
• Clutch Disc Spline Count: 21
• Clutch Disc Spline Diameter (mm): 29.0
• Disc Type: Sprung
• Friction Material: Ceramic
• Stage: 2
• Recommended Use: Track
• Clamping Force % Increase: 50%
• Torque (Nm) Inc FOS: 850
• Torque (ftlbs) Inc FOS: 630
• Spigot Bush/Bearing Included: Yes
• Aligning Tool Included: Yes
• Pressure Plate Bolts Included: Yes
• Spline Grease Included: Yes
• Note: Pull Type
• Transport Weight (kg): 10.6

Manufacturer Part Number: KTY24050-1B
