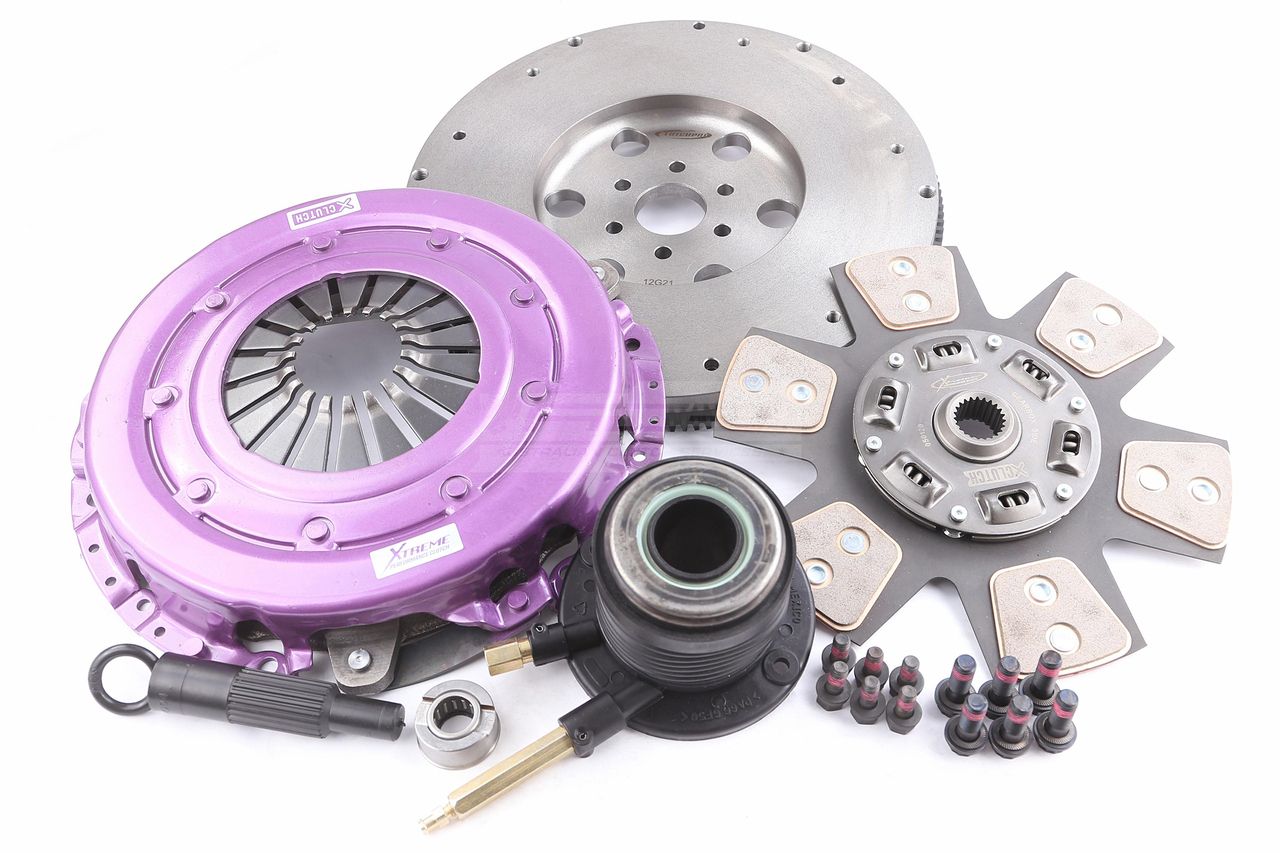

Xtreme Clutch Kit Sprung Ceramic w/ Flywheel suit FG FGX Falcon Barra 4L N/A TR6060

Description

Xtreme Clutch Kit Sprung Ceramic w/ Flywheel suit FG FGX Falcon Barra 4L N/A TR6060.

Xtreme Clutch Performance Clutches are built using the highest quality components, and undergo extensive testing to ensure they live up to their name. With friction disc options available from standard, through organic and heavy duty ceramic, along with pressure plates to suit even the highest power applications, flywheels, replacement bolts, and more, Xtreme Clutch have you covered. T.I. Performance proudly stocks the Xtreme Clutch range.

Sprung Ceramic Clutch Kit w/ Flywheel -Track Use

Suits the following vehicles:

• Ford FG FGX Falcon (STD & XR6 non turbo), Barra 4L
• Note: Suits TR6060 Transmission

Specifications:

• Xtreme Clutch Kit 600 Series
• Flywheel Step (mm): Flat
• Clutch Disc Diameter (mm): 266
• Clutch Disc Spline Count: 23
• Clutch Disc Spline Diameter (mm): 26
• Disc Type: Sprung
• Friction Material: Ceramic
• Stage: 2
• Recommended Use: Track
• Clamping Force % Increase: 55%
• Torque (Nm) Inc FOS: 960
• Torque (ftlbs) Inc FOS: 710
• Spigot Bush/Bearing Included: Yes
• Aligning Tool Included: Yes
• Flywheel Included: Single Mass
• Flywheel Bolts Included: Yes
• Concentric Slave Cylinder Included: Yes
• Pressure Plate Bolts Included: Yes
• Spline Grease Included: Yes
• Note: Conversion to Single Mass Flywheel
• Non Self Adjusting Clutch
• Transport Weight (kg): 21.5

Manufacturer Part Number: KFD27698-1B
