Description

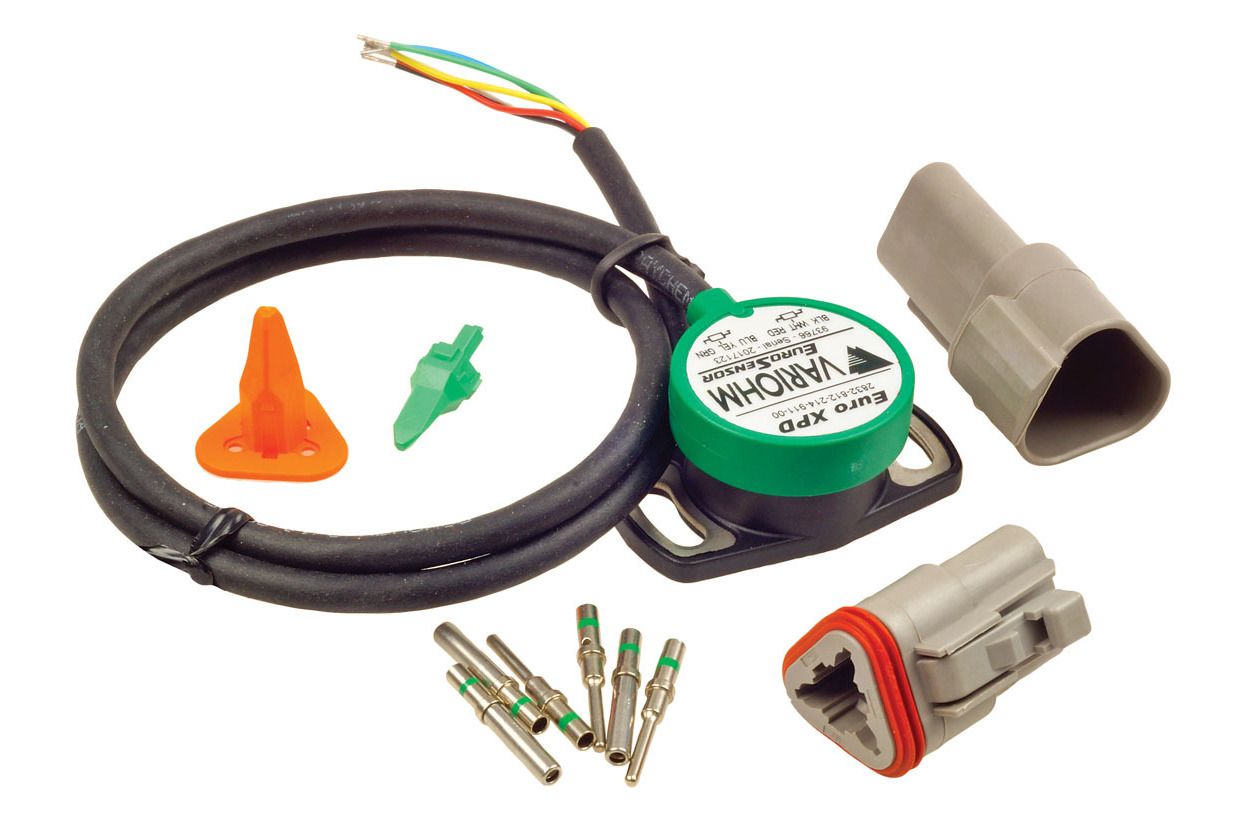

Variohm Eurosensor Contactless 8mm D Shaft Throttle Position Sensor / TPS. Includes Sensor, Connector & Terminals. Conventional Resistive Throttle Position Sensors are fairly robust, but if you want a step up, you cant beat a contactless TPS. Suitable for the most harsh and demanding environments, including motorsport, marine etc. This sensor has no mechanical stops, it can rotate 360 degrees. It is an active 6-wire sensor.
A finely tuned engine demands the most precise measuring equipment, and you can rely on T.I. Performance Sensors to provide the accurate data your ECU needs. Our range is built on premium original equipment brands like Bosch, Delco, VDO, Delphi and TI, ensuring consistent performance in all conditions, whatever your application. Datasheets available.
Specifications:
- Voltage: 5v
- Mount dimensions: 32mm
- Direction: CW: Green, Yellow, Blue wires; CCW: Red, White, Black wires
Full spec sheet: RWORKS_TPS-500.pdf
Variohm Eurosensor Part Number: TPS-500
Also Known As: Link 101-0100
