Tycab Red 8 B&S / 8ga Cable 85 Amp Single Core – 30m

Description

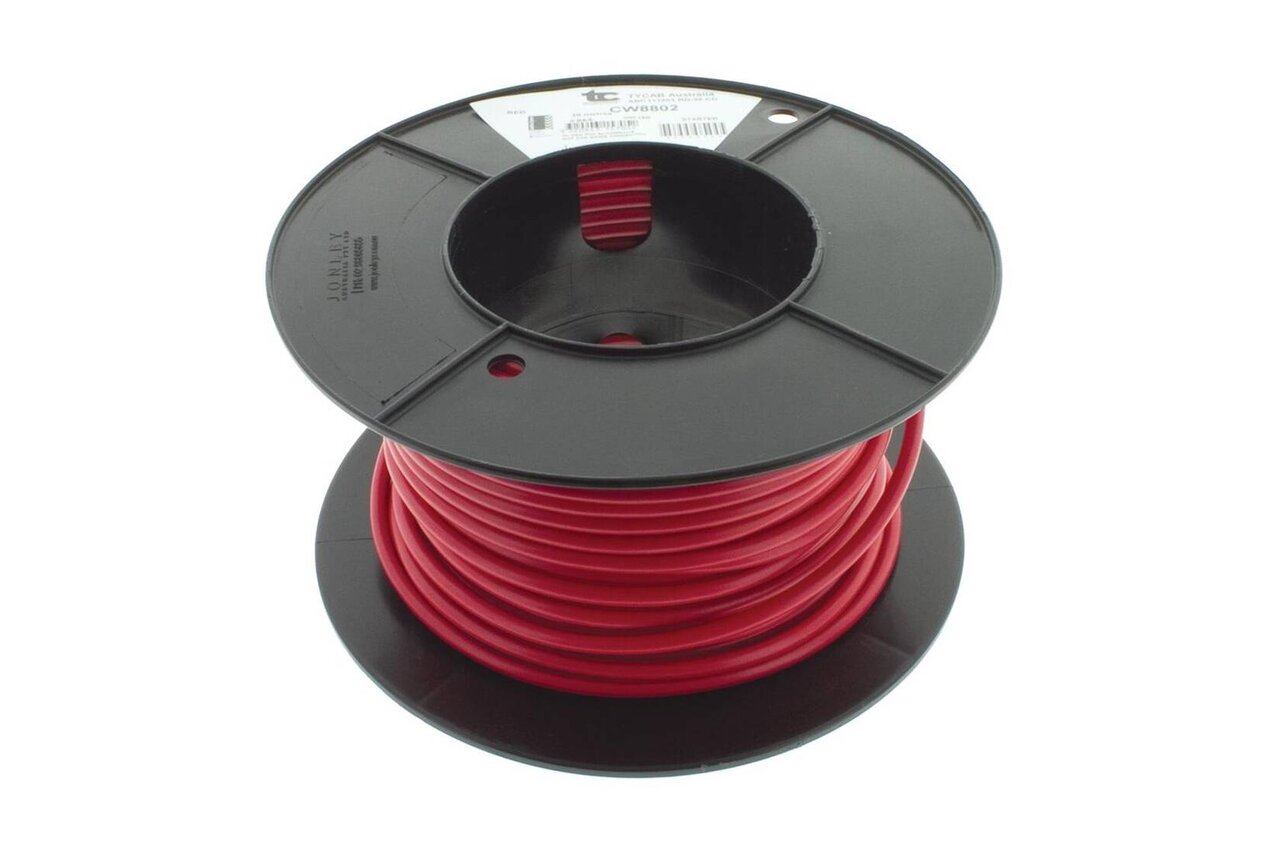

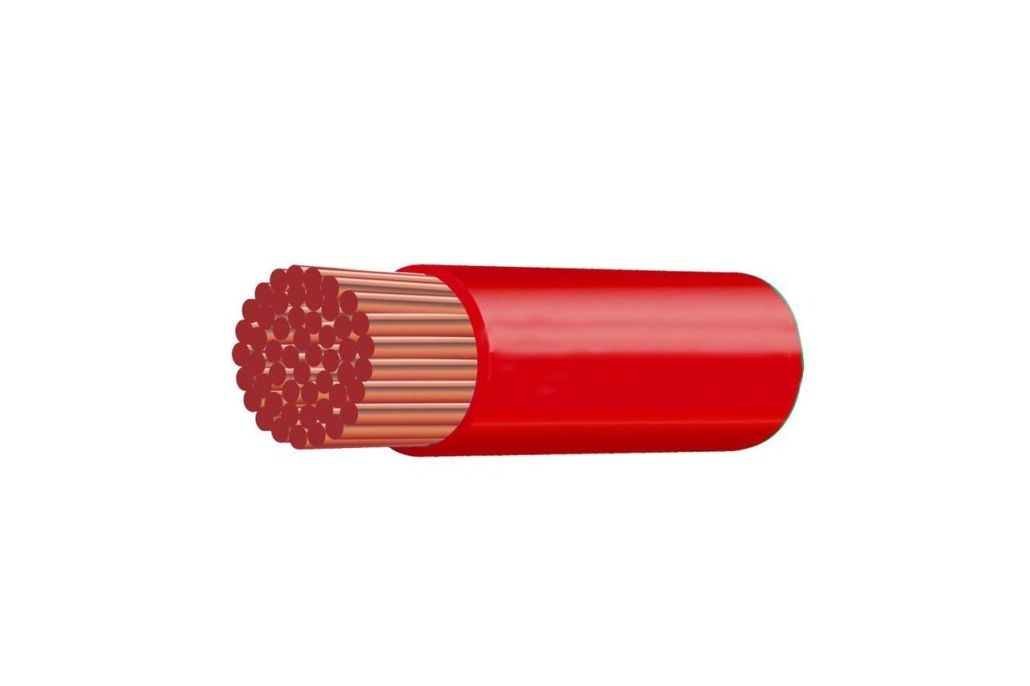

Tycab Red 8 B&S / 8ga Cable 85 Amp Single Core – 30m.

Tycab is Australia’s leading manufacturer of automotive cables, renowned for quality and reliability. With over 30 years of experience, Tycab has become a staple in the automotive aftermarket and OEM sectors. Their cables are made from the highest quality oxygen-free plain copper wire and comply with RoHS standards, ensuring safety and environmental friendliness. Tycab’s Single Core Cable, available in industry equivalents of 2.5mm, 3mm, 4mm, 5mm, and 6mm, features V90 PVC insulation and is available in various sheath and trace colors. These cables are excellent for general-purpose automotive wiring, providing flexibility and durability for various applications​.

Specifications:

• Size B&S: 8
• Area mm2: 7.71
• Amp@30°C: 74
• Colour: Red
• Length (m): 30
• Strands/Dia: 96/0.32
• Resistance: (Ohm/km): 2.4
• O.D(mm): 5.5
• Mass (kg/100m): 9.3
• Voltage: 50Vac or 120Vdc
• Applications: Battery feeds, general purpose automotive wiring
• Insulation thickness: 0.6mm

Manufacturer Part Number: CB108A1-030RD
