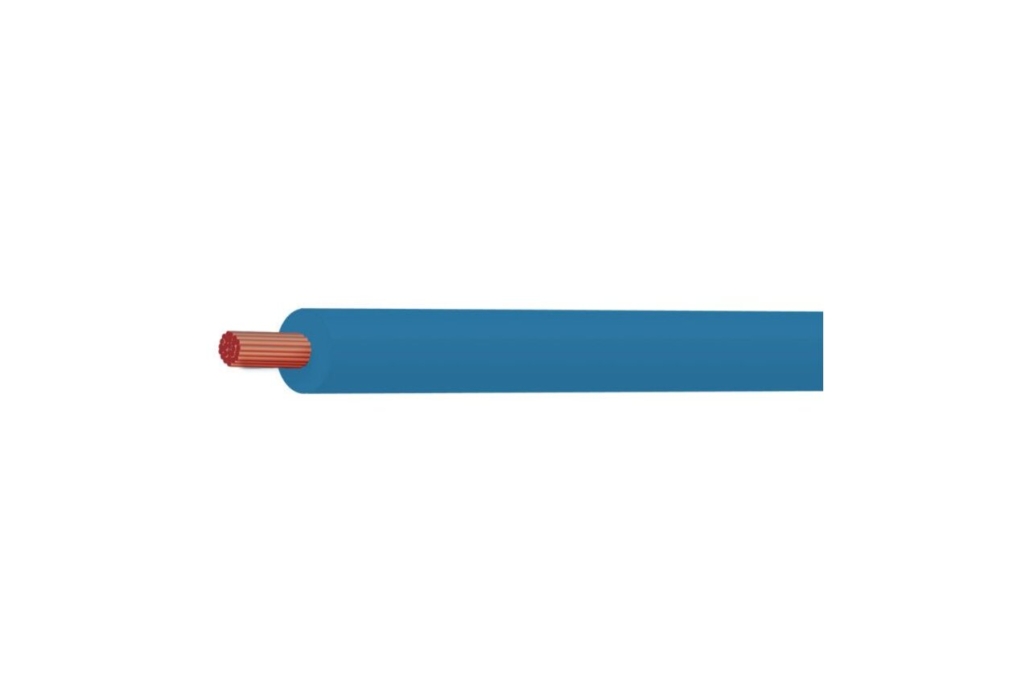

Tycab 5mm Single Core Blue V90 Automotive Cable (36/0.32) – 30m

Description

Tycab 5mm Single Core Blue V90 Automotive Cable (36/0.32) – 30m.

Plain Copper Wire to AS1125. Insulated to AS3808. Suitable for use in engine compartment. Rated up to 37A.

Tycab is Australia’s leading manufacturer of automotive cables, renowned for quality and reliability. With over 30 years of experience, Tycab has become a staple in the automotive aftermarket and OEM sectors. Their cables are made from the highest quality oxygen-free plain copper wire and comply with RoHS standards, ensuring safety and environmental friendliness. Tycab’s Single Core Cable, available in industry equivalents of 2.5mm, 3mm, 4mm, 5mm, and 6mm, features V90 PVC insulation and is available in various sheath and trace colors. These cables are excellent for general-purpose automotive wiring, providing flexibility and durability for various applications​.

Specifications:

• Length (m): 30M
• Colour: Blue
• Size: 5mm
• Rating (Amps): 37
• Strand Dia. (mm): 0.32
• No. of Strands: 36
• Area (mm): 2.90
• Nominal O.D (mm): 3.0
• Mass (kg/100m): 3.3
• Insulation: Oxygen Free V90 PVC Insulated
• Compliance: RoHS Compliant
• Also Known As: CW1509, ASC14104
• Note: Picture to be updated

Manufacturer Part Number: CB005A1-030BE
