Description

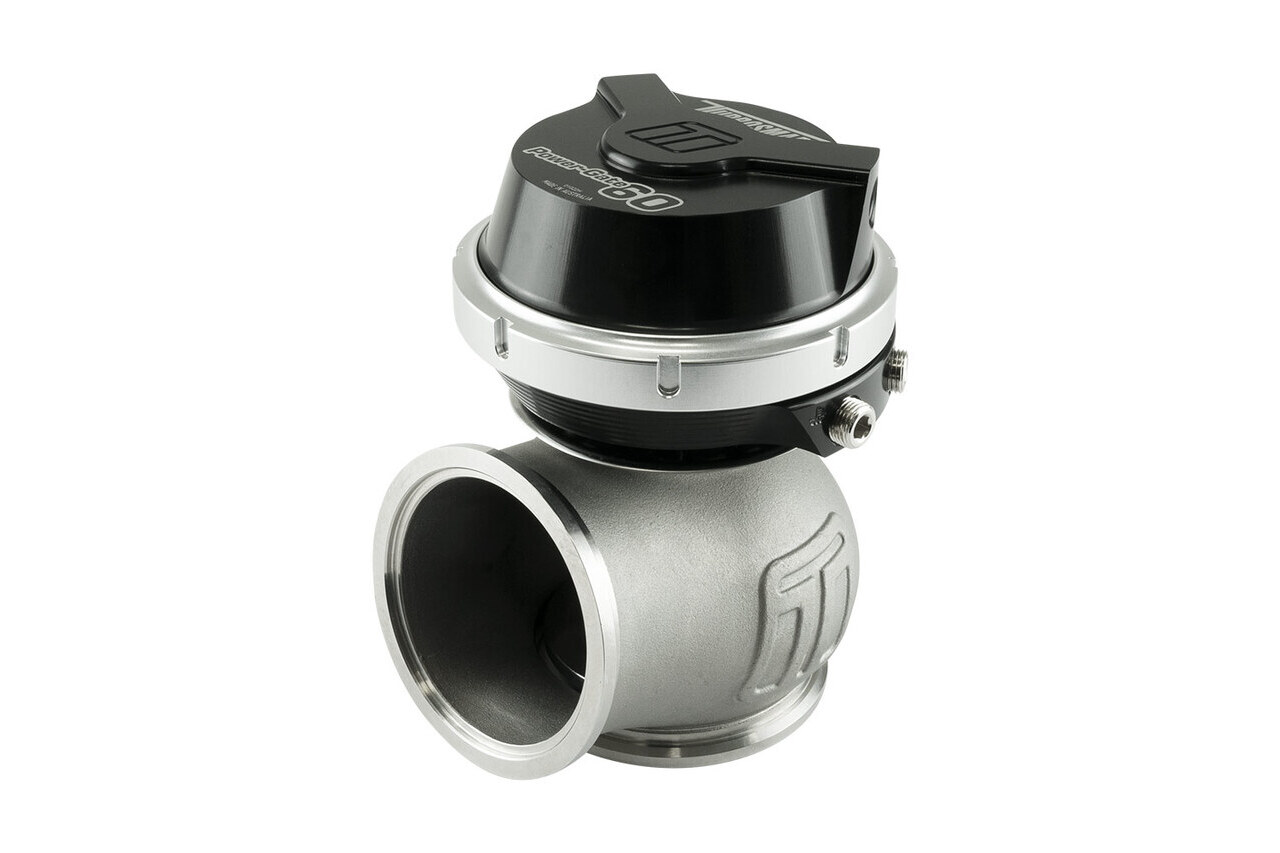

The Turbosmart GenV WG60 PowerGate60 External Wastegate is a proven, cost effective 60mm external wastegate.
As the largest option in the Turbosmart GenV range, it stands as the highest flowing poppet style wastegate in the world.
Engineered from the ground up, the GenV offers extensive user configurability, industry leading extended thermal performance, superior fatigue resistance, and top class flow performance for optimum boost control and maximum longevity.
The GenV external wastegate is a complete redesign of Turbosmart’s classic Gen4 range, sharing only the identical mounting orientation for a seamless upgrade path.
Computational Fluid Dynamics (CFD) optimised and rigorously validated in-house, this 60mm wastegate delivers unparalleled airflow and thermal management.
It serves as a direct-fit upgrade to all Gen4 Turbosmart wastegates and features a unique collar-locking system, 1/8″ NPT reference ports, and a variable actuator cap/base that allows for easy, 360-degree optional routing of reference hoses.
Features & Benefits
- World Class Airflow: Class-leading CFD and bench-validated flow performance
- Superior Thermal Management: Advanced thermal resistance with optional liquid actuator cooling
- Maximum Durability: High fatigue resistance with a Nitronic 60 valve guide and a high temp 347 stainless steel body
- 360-Degree Routing: Rotatable and clockable actuator housing simplifies reference hose installation
- Premium Hardware: Secured via strap type V-band clamps and loaded with 17-7 PH stainless steel springs
- Actuation Options: Standard Pneumatic, Compressed Gas/CO2 Version, or eWG (Electronically Actuated) Version
- Optional Upgrades: Integrated Wastegate Position Sensor (Available separately)
- Colour Choices: Black, Blue, Red, Purple and Sleeper
Specifications
- Wastegate Size: 60mm
- Fitment Style: 60mm V-Band
- Reference Ports: 1/8″ NPT
- Spring Type: 17-7 PH Stainless Steel (Full range of springs included)
- Base Material: High Temp 347 Stainless Steel
- Valve Guide: Nitronic 60
Manufacturer Part Number: TS-0555-1012
Frequently Asked Questions
Benefits of upgrading to a 60mm external wastegate?
A 60mm wastegate such as a Turbosmart WG60 offers much higher flow capacity, making it ideal for large turbochargers and high horsepower engine builds that require precise boost control.
Does the GenV WG60 wastegate come with a range of springs?

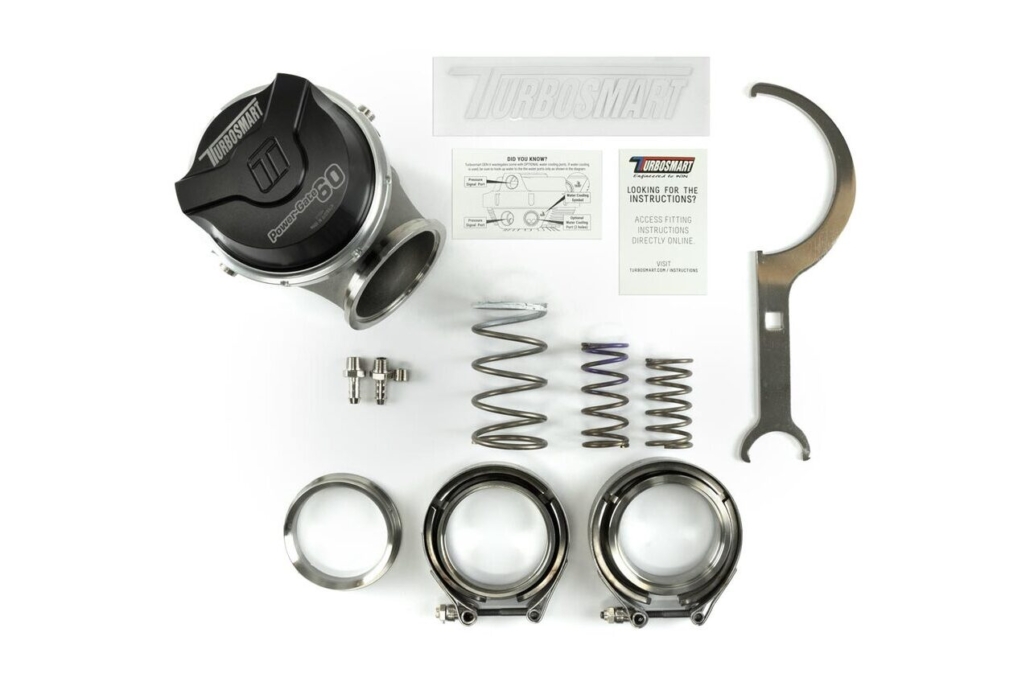

The GenV WG60 comes packaged with a full range of available springs inside the box including 3 PSI, 5 PSI, 7 PSI, and 14 PSI. This allows you to customise and configure the base mechanical boost pressure to match your specific tuning requirements.
Does the Turbosmart WG60 require water cooling?
Water cooling is optional as the wastegate is designed to perform without it in most scenarios. While liquid cooling can help reduce heat related stress in extreme motorsport environments, it is not compulsory for most street applications.
