Description

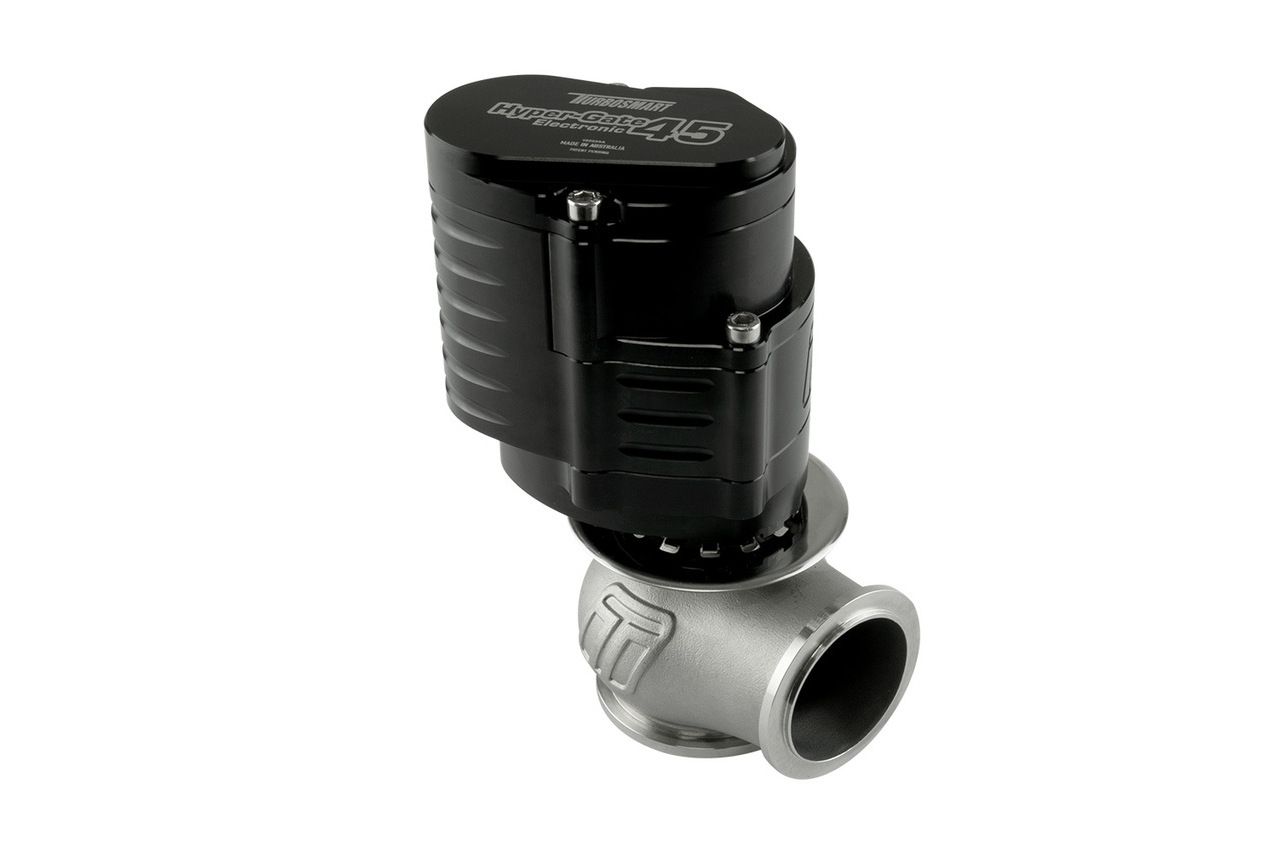

Turbosmarts Patent Pending, eWG45 is a fully electronic actuated 45mm wastegate Built on the successful, class-leading GenV HyperGate45 architecture, now with the kind of control never seen before. The eWG45 HyperGate45 is a 45mm Electronic External Wastegate that uses full electronic control without the limitations associated with traditional pneumatic control.
Starting with a Turbosmarts GenV wastegate body, you can be confident the mounting orientation will match your existing manifold and outlet hardware. The GenV Hypergate45 already had class-leading flow capacity and heat handling characteristics. Now featuring the Turbosmart Patent Pending eWG actuator system, you can also be sure of unparalleled control.
There are no springs, hoses, boost reference signals or associated limitations. Gone are Minimum boost levels associated with base spring pressure or heat-related issues with hoses. If your manifold priority is good enough, you can set your boost anywhere from zero to All of it All from your laptop or tuning interface. The eGate range requires a Dual Half-Bridge input for control, much like how an electronic throttle body is controlled and the strategy is as good as your imagination and your ECU or controller will allow.
Don’t have an ECU that has a spare Dual Half-Bridge Output? No problem at all, Check out the Turbosmart BlackBox Electronic Wastegate Controller with up to 2 independent channels via simple PWM inputs, or more advanced CAN-based inputs – All onboard and in the one unit!

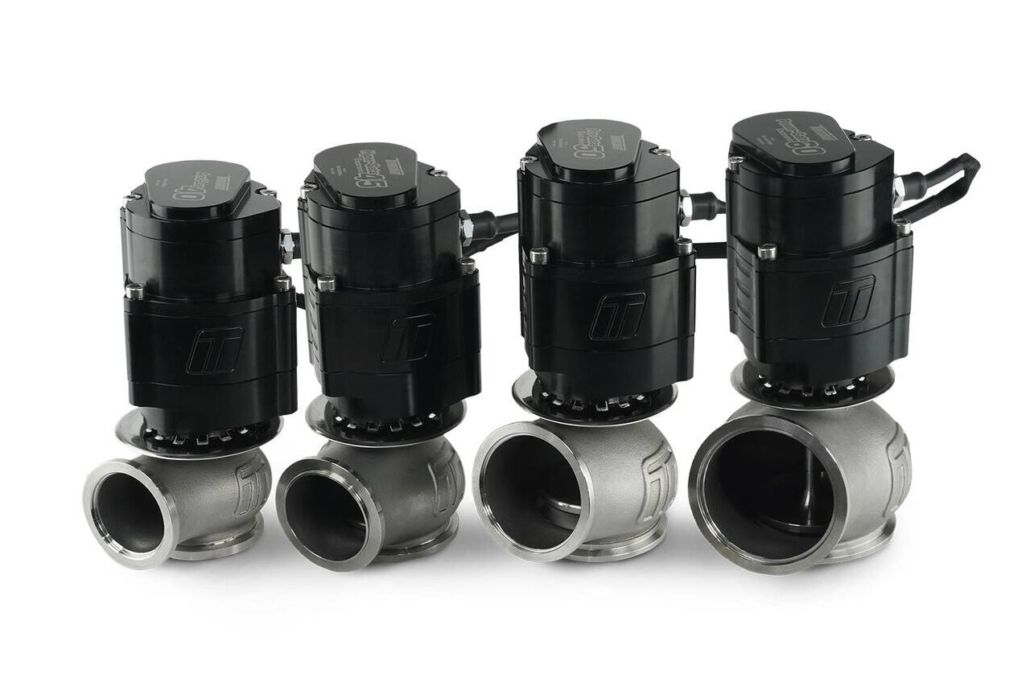

Available in
40mm CompGate40 eWG – TS-0552-1502
45mm HyperGate45 eWG -TS-0553-1502
50mm ProGate50 eWG – TS-0554-1502
60mm PowerGate60 eWG -TS-0555-1502
StraightGate50 eWG – TS-0565-1002
Features
Class Leading, CFD & Bench Validated Flow Performance
Nitronic 60 Valve Guide & High Temp 347 SS Body
Liquid Cooled, Electronic Actuator
Strap Type V-band clamps
User Adjustable Actuator Position
Onboard Analog 0-5V Wastegate Position Sensor
Onboard Analog 0-5V Actuator Temperature Sensor
Onboard Digital (PWM) Wastegate Position Sensor
Manufacturer Part Number: TS-0553-1502
