Description

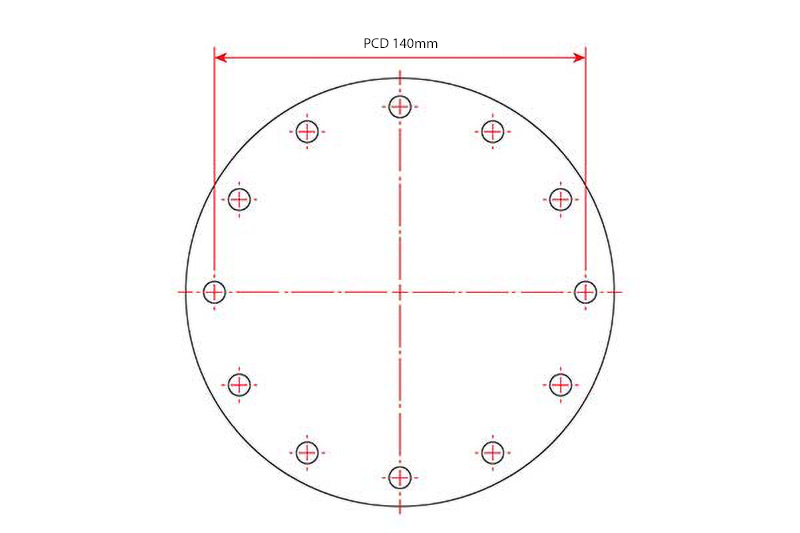

Raceworks Twin Pump Fuel Cell Hanger Suits 38mm Pumps Gen2. Adjustable pump height. Gen2 model with larger 12x140mm bolt pattern. Weld ring also available for installation into steel or alloy tanks. Formerly ALY-132BK.
Anodized black, this alloy dual fuel pump hanger can be fitted with one or two pumps, and has dual stainless electrical terminals allowing the pumps to be staged separately. E85 ready with teflon seals and viton o-rings. AN-8 O-Ring Ports. O-ring seal to tank / mounting ring.
These hangers are ideal for retrofitting an EFI fuel pump into older steel or plastic tank carby vehicles. See the linked items for steel or alloy weld on rings for mounting, fuel pumps, fittings and hose. Adjustable height – 220mm post suits tank depth of 180mm to 275mm or deeper with longer hose. 41mm filler cap. O-Ring in hanger base, use the fuel cell mounting ring without o-ring.
This model suits 38mm pumps from Raceworks and Pierburg including 7.21088.62.0 and EFP-501.
Raceworks fuel pump brackets have been designed to attractively mount and insulate a variety of fuel pumps. The range includes brackets for single or twin-mount configuration of 39mm and 38mm pumps, engineered from precision alloy, and hardcoat anodised to enhance your fuel system installation.
Formerly known as: ALY-132BK
All Raceworks products come with a 2 year warranty.
Raceworks Part Number: ALY-332BK
