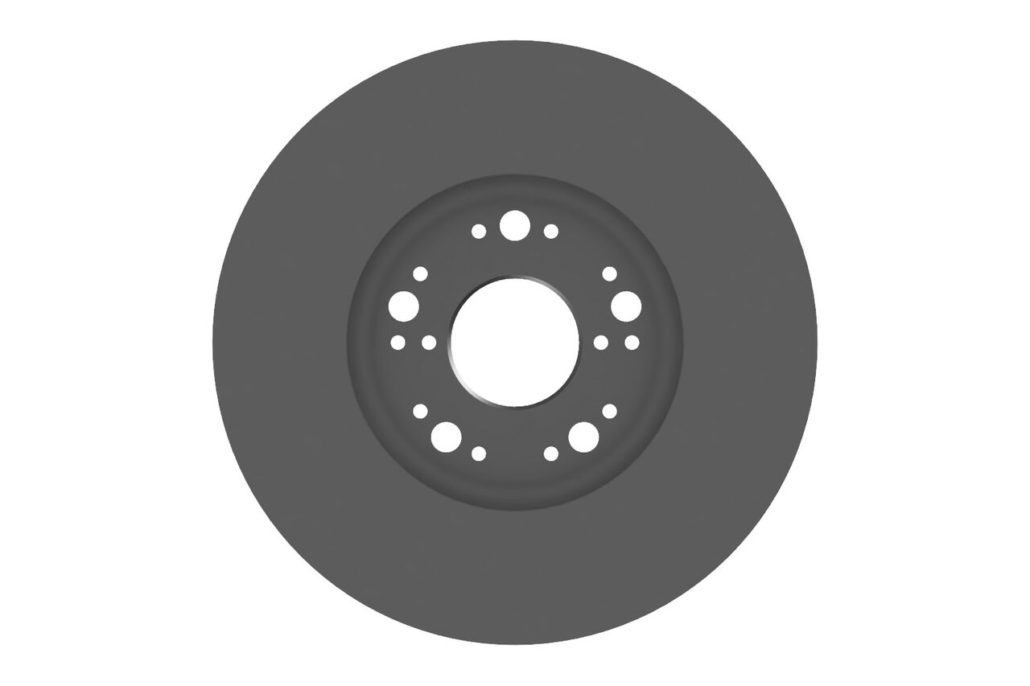

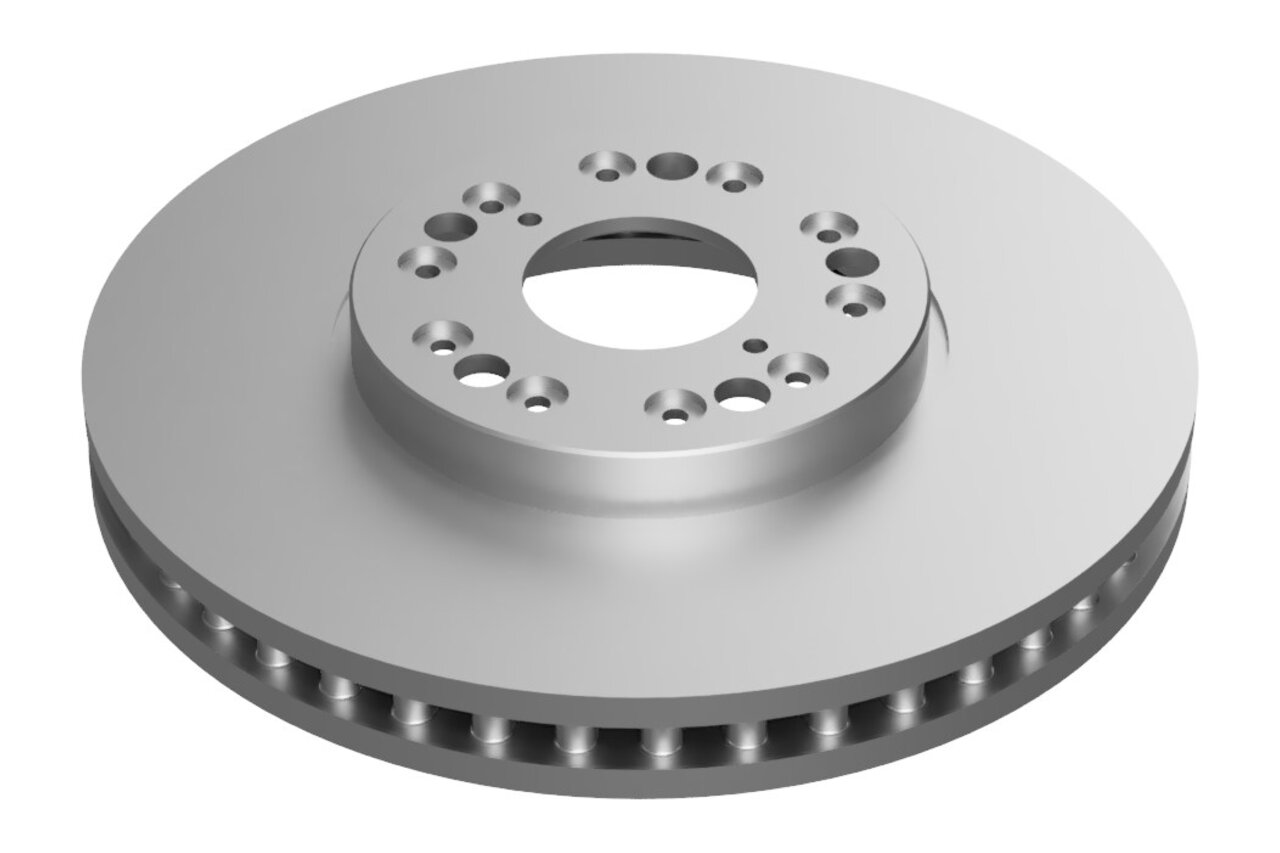

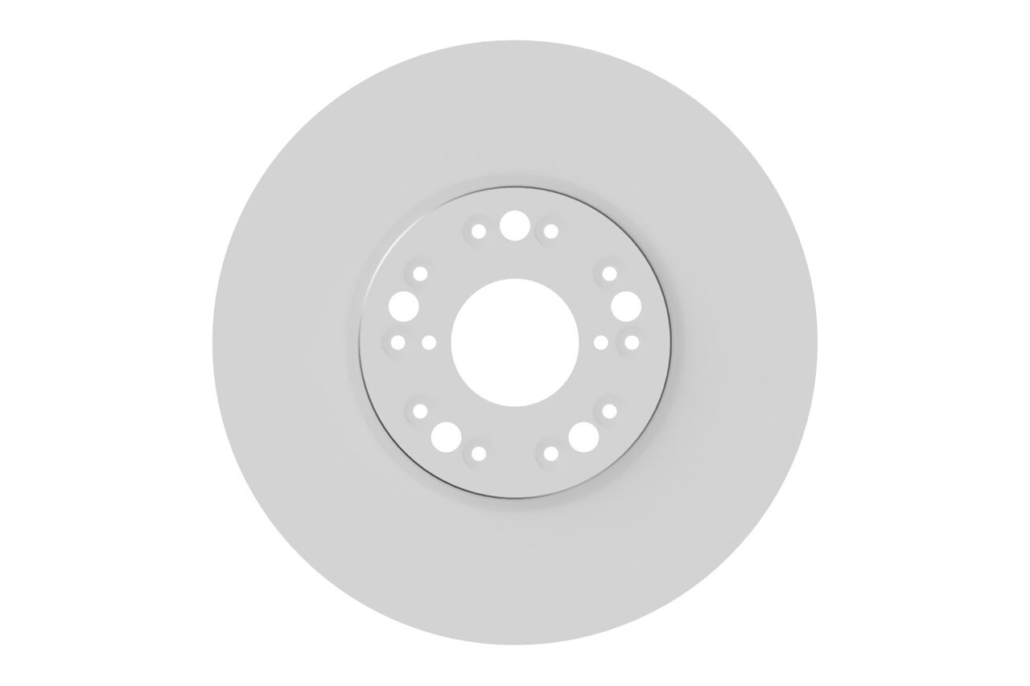

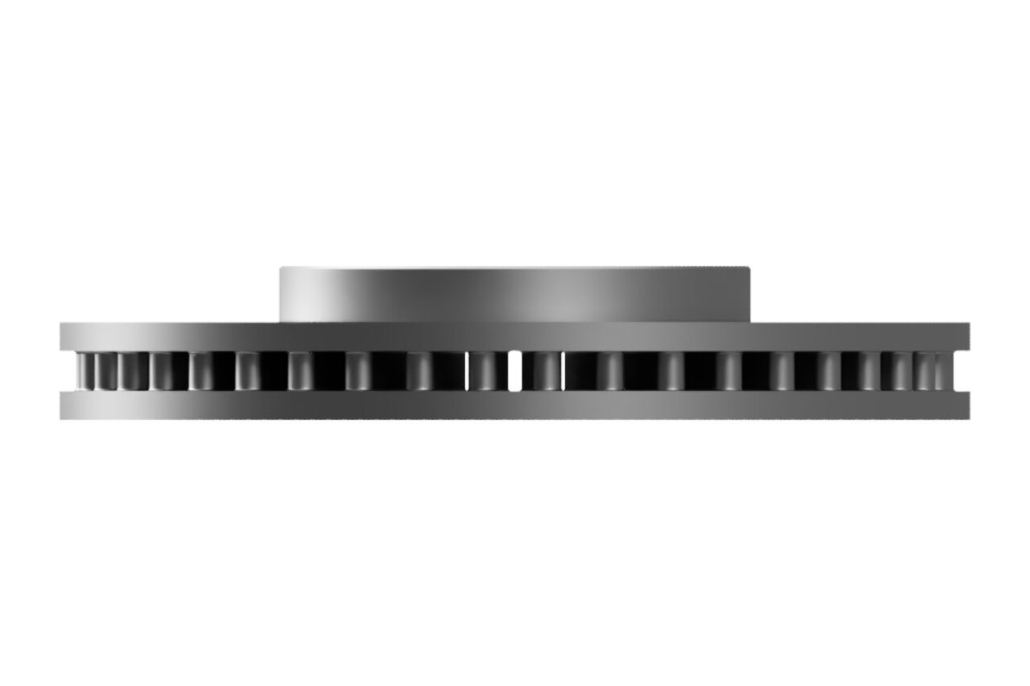

Protex Ultra Front Disc Rotor 296mm suit Supra JZA80, Chaser JZX100R, Altezza, Lexus GS300 IS200 IS300 SC430

Description

Protex Ultra Front Disc Rotor 296mm suit Supra JZA80, Chaser JZX100R, Altezza, Lexus GS300 IS200 IS300 SC430. x2 quantity required per front end. Popular brake pads to suit: DB1395CP.

Protex is one of Australia’s leading brake parts specialists, with over 20 years of experience. Offering Australia’s largest range of brake components, Protex provides solutions for everything from everyday driving to demanding performance applications. Built with a focus on safety, performance and reliability, Protex brake parts are developed using advanced technology to deliver dependable braking for every journey.

Protex Ultra Rotors are designed as a general purpose OE replacement solution for most vehicles on Australia’s roads. Precision manufactured and balanced with a durable cast iron composition, these rotors use OE based pillar designs and construction, with multiple vane designs selected to suit different vehicle applications. The result is consistent braking performance, enhanced pedal feel and quiet operation.

Every rotor is fully protected with Ultracoat Z360® protective environmental coating, providing superior anti corrosion protection while helping make fitting quicker and easier. Designed to OE replacement standards, Protex Ultra Rotors offer a practical combination of braking efficiency, durability and long service life.

Specifications

• Diameter (mm) 296
• Thickness (mm) 32
• Min Thickness (mm) 30
• Height (mm) 51
• Centre Bore (mm) 62
• Holes/Studs 5
• PCD (mm) 114.3
• Pack Weight (Kg) 9.27
• Pack Dimensions (mm) 335x315x70
• Surface Machining STD
• Surface Coating Z360 – Ultracoat

Suits the following vehicles

• Lexus GS300 JZS147R / JZS160R. Engine: 2JZGE 3.0L 24v 6 Cyl
• Lexus GS300 V300 JZS161. Engine: 2JZGTE 3.0L 24v 6 Cyl
• Lexus IS200 GXE10R. Engine: 1GFE 1.0L 24v 6 Cyl
• Lexus IS300 JCE10R. Engine: 2JZGE 3.0L 24v 6 Cyl
• Lexus LS400 UCF10R. Engine: 1UZFE 4.0L 32v V8
• Lexus SC430 UZZ40R. Engine: 3UZFE 4.3L 32v V8
• Toyota Altezza AS300 JCE10R. Engine: 2JZGE 3.0L 24v 6 Cyl
• Toyota Altezza RS200 SXE10R. Engine: 3SGE 2.0L 16v 4 Cyl
• Toyota Aristo V300 JZS161R. Engine: 2JZGTE 3.0L 24v 6 Cyl
• Toyota Chaser Tourer V JZX90R / JZX100R. Engine: 1JZGTE 2.5L 24v 6 Cyl
• Toyota Cresta Roulant G JZX100R. Engine: 1JZGTE 2.5L 24v 6 Cyl
• Toyota Crown Athlete V JZS171R. Engine: 1JZGTE 2.5L 24v 6 Cyl
• Toyota Mark II JZX110R. Engine: 1JZFSE / 1JZGTE 2.5L 24v 6 Cyl
• Toyota Mark II IR-S JZX110R. Engine: 1JZFSE 2.5L 24v 6 Cyl
• Toyota Mark II IR-V JZX110R. Engine: 1JZGTE 2.5L 24v 6 Cyl
• Toyota Mark II Tourer V JZX90R. Engine: 1JZGTE 2.5L 24v 6 Cyl
• Toyota Mark II Tourer V JZX100R. Engine: 1JZGTE 2.5L 24v 6 Cyl
• Toyota Soarer JZZ30R. Engine: 1JZGTE 2.5L 24v 6 Cyl
• Toyota Soarer UZZ32R. Engine: 1UZFE 4.0L 32v V8
• Toyota Soarer GT-T JZZ30R. Engine: 1JZGTE 2.5L 24v 6 Cyl
• Toyota Supra JZA80R. Engine: 2JZGE 3.0L 24v 6 Cyl
• Toyota Verossa JZX110R. Engine: 1JZFSE / 1JZGTE 2.5L 24v 6 Cyl

Manufacturer Part Number: DR748
