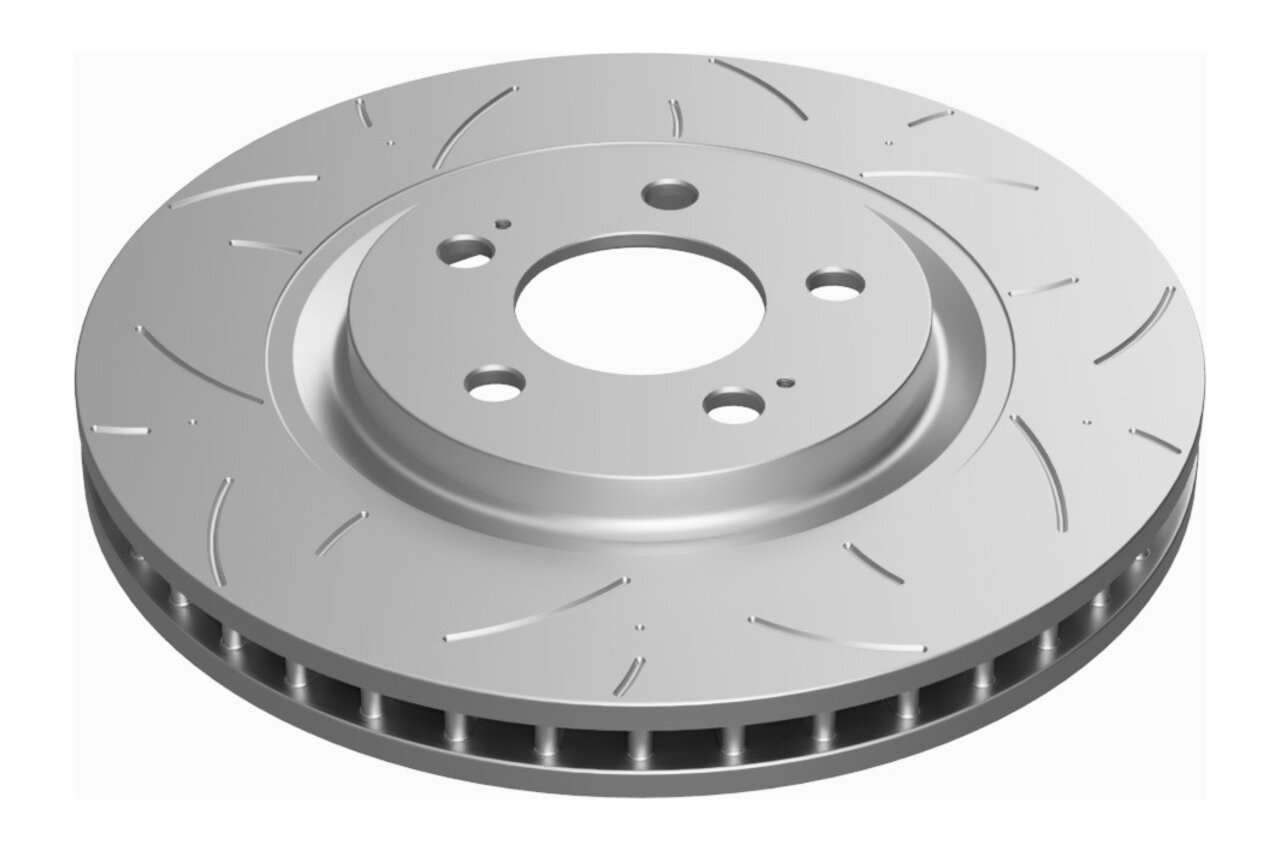

Protex NS5 Slotted Front Disc Rotor 325mm Upgrade suit BA Falcon XR6 XR8

Description

Protex NS5 Slotted Front Disc Rotor 325mm Upgrade suit BA Falcon XR6 XR8. x2 quantity required per front end. Popular brake pads to suit: 7599CP.

Protex is one of Australia’s leading brake parts specialists, with over 20 years of experience. Offering Australia’s largest range of brake components, Protex provides solutions for everything from everyday driving to demanding performance applications.

The new Protex Nova Slot (NS5) marks the next evolution in performance brake rotor technology. Designed for 4WDs, SUVs, and performance vehicles, the NS5 rotor combines advanced engineering with practical benefits that make it the smart choice for your vehicle.

Features

• Bi-directional slot design – Developed using a formula driven CAD process, the unique 5 group slot pattern optimises cooling, pedal feel, and brake torque. This design enhances fade resistance, out gassing, and debris removal; delivering consistent performance on and off road.
• High carbon composition – Manufactured from specialised high carbon cast iron, NS5 offers superior thermal stability and reduced distortion under extreme heat. Combined with Z360 ultra corrosion protection, it ensures durability even in harsh conditions.
• Low noise and pad wear – Road tested for quiet operation and reduced dust, NS5 minimises NVH issues while optimising pad life, ensuring a smoother and cleaner braking experience.
• Smart Dot wear indicator – Integrated 10 point Smart Dot technology provides a visual analysis of rotor wear, without wheel removal. This saves time for technicians and improves workshop efficiency.

Specifications

• Diameter (mm) 325
• Thickness (mm) 32
• Min Thickness (mm) 30
• Height (mm) 45.3
• Centre Bore (mm) 71.5
• Holes/Studs 5
• PCD (mm) 114.3
• Material High Carbon (H)
• Surface Machining Slotted (NS5) Bi-Directional Nova Slot
• Surface Coating Z360 – Ultracoat

Suits the following vehicles

• Ford BA Falcon (XR6, XR6T, XR8). Engines: 4L Barra/T 24v 6 Cyl, 5.4L Boss 260 32v V8

Manufacturer Part Number: PDR1170HNS5

Also known as: DBA T3 DBA42104S, Protex Standard PDR1170HS, PDR1171HS
