Description

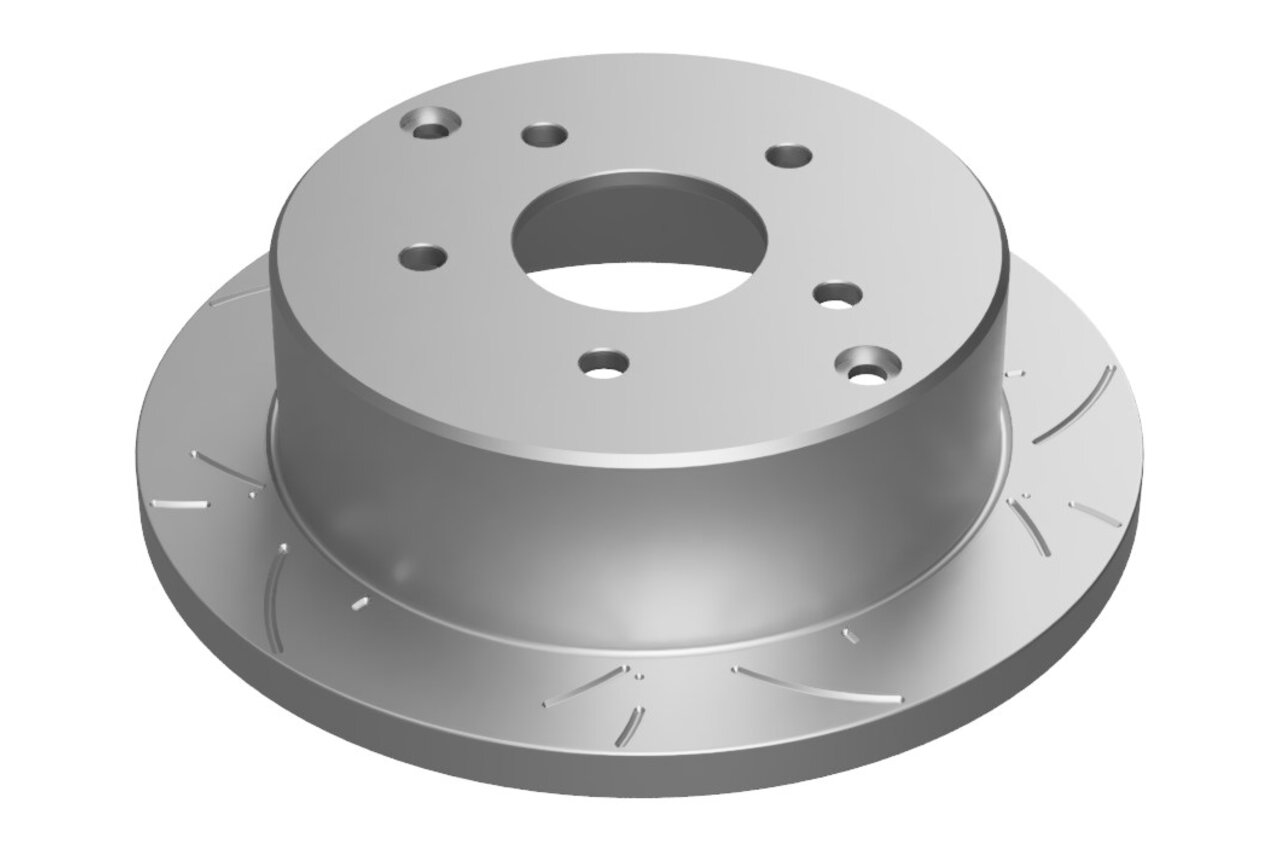

Protex NS5 Slotted Rear Disc Rotor Rear 286mm suit VT-VZ Commodore. x2 quantity required per rear end. Popular brake pads to suit: DB1332UP.
Protex is one of Australia’s leading brake parts specialists, with over 20 years of experience. Offering Australia’s largest range of brake components, Protex provides solutions for everything from everyday driving to demanding performance applications. Built with a focus on safety, performance and reliability, Protex brake parts are developed using advanced technology to deliver dependable braking for every journey.
The new Protex Nova Slot (NS5) marks the next evolution in brake rotor technology. Designed for 4WDs, SUVs, and performance vehicles, the NS5 combines advanced engineering with practical benefits that make it the smart choice for your vehicle.
Bi-directional slot design
Developed using a formula driven CAD process, the unique 5 group slot pattern optimises cooling, pedal feel, and brake torque.
This design enhances fade resistance, out gassing, and debris removal; delivering consistent performance on and off road.
High carbon composition
Manufactured from specialised high carbon cast iron, Protex says NS5 offers superior thermal stability and reduced distortion under extreme heat.
Combined with Z360 ultra corrosion protection, it ensures durability even in harsh conditions.
Low noise and pad wear
Road tested for quiet operation and reduced dust, NS5 minimises NVH issues while optimising pad life, ensuring a smoother and cleaner braking experience.
Smart Dot wear indicator
Integrated 10 point Smart Dot technology provides a clear visual analysis of rotor wear, without wheel removal.
This saves time for technicians and improves workshop efficiency.”
Also known as: DBA T2 DBA041S, DBA T3 DBA4041S, Protex Standard DR041
Specifications
- Diameter (mm) 286
- Thickness (mm) 16
- Min Thickness (mm) 13.9
- Height (mm) 78.6
- Centre Bore (mm) 70
- Holes/Studs 5
- PCD (mm) 120
- Material High Carbon (H)
- Surface Machining Slotted (NS5) Bi-Directional Nova Slot
- Surface Coating Z360 – Ultracoat
Suits the following vehicles
- Holden VT VX VY VZ Commodore. Engines: L36 L67 L76 LEO LY7 304 LS1
- Holden VT VX VY VZ Calais. Engines: L36 L67 L76 LY7 304 LS1
- Holden WH WK WL Caprice. Engines: L36 L67 L76 LY7 LS1
- Holden WH WK WL Statesman. Engines: L36 L67 L76 LY7 LS1
- Also suits Holden Crewman, Monaro, One Tonner, HSV models & Chevrolet Lumina
Manufacturer Part Number: PDR041HNS5
