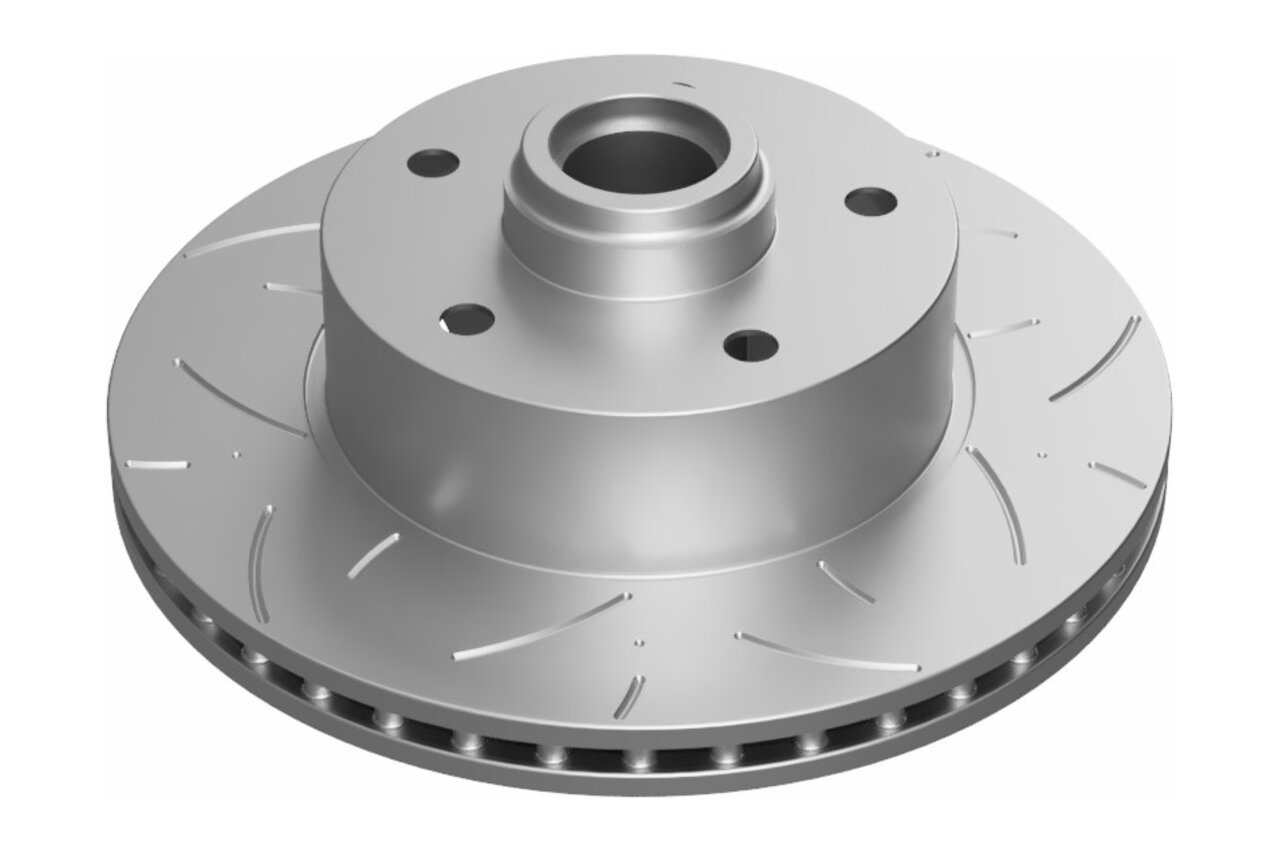

Protex NS5 Slotted Front Disc Rotor 276mm suit Holden Belmont Monaro Kingswood

Description

Protex NS5 Slotted Front Disc Rotor 276mm suit Holden Belmont Monaro Kingswood. x2 quantity required per front end. Popular brake pads to suit: DB1023CP or DB6CP.

Protex is one of Australia’s leading brake parts specialists, with over 20 years of experience. Offering Australia’s largest range of brake components, Protex provides solutions for everything from everyday driving to demanding performance applications. Built with a focus on safety, performance and reliability, Protex brake parts are developed using advanced technology to deliver dependable braking for every journey.

The new Protex Nova Slot (NS5) marks the next evolution in brake rotor technology. Designed for 4WDs, SUVs, and performance vehicles, the NS5 combines advanced engineering with practical benefits that make it the smart choice for your vehicle.

Bi-directional slot design

Developed using a formula driven CAD process, the unique 5 group slot pattern optimises cooling, pedal feel, and brake torque.
This design enhances fade resistance, out gassing, and debris removal; delivering consistent performance on and off road.

High carbon composition

Manufactured from specialised high carbon cast iron, Protex says NS5 offers superior thermal stability and reduced distortion under extreme heat.
Combined with Z360 ultra corrosion protection, it ensures durability even in harsh conditions.

Low noise and pad wear

Road tested for quiet operation and reduced dust, NS5 minimises NVH issues while optimising pad life, ensuring a smoother and cleaner braking experience.

Smart Dot wear indicator

Integrated 10 point Smart Dot technology provides a clear visual analysis of rotor wear, without wheel removal.
This saves time for technicians and improves workshop efficiency.”

Also known as: DBA T2 DBA014S, DBA T3 DBA4014S, Protex Standard DR014

Specifications

• Diameter (mm) 276
• Thickness (mm) 25.4
• Min Thickness (mm) 24.5
• Height (mm) 72
• Centre Bore (mm) HUB
• Holes/Studs 5
• PCD (mm) 120.65
• Material High Carbon (H)
• Surface Machining Slotted (NS5) Bi-Directional Nova Slot
• Surface Coating Z360 – Ultracoat

Suits the following vehicles

• Holden HQ HX Belmont. Engines: 253 308
• Holden HQ HJ HX HZ WB Kingswood. Engines: 253 308
• Holden HQ HJ HX HZ Monaro. Engines: 253 308
• Holden HQ HX HZ WB One Tonner. Engines: 253 308
• Holden HQ Panel Van Belmont. Engines: 253 308
• Holden HX HZ Panel Van Kingswood. Engines: 253 308
• Holden HQ HJ HX HZ Premier. Engines: 253 308
• Holden HQ HX HZ Sandman. Engines: 253 308
• Holden HQ HJ HX HZ WB Statesman. Engines: 253 308
• Holden HQ HX HZ WB Utility. Engines: 253 308

Manufacturer Part Number: PDR014HNS5
