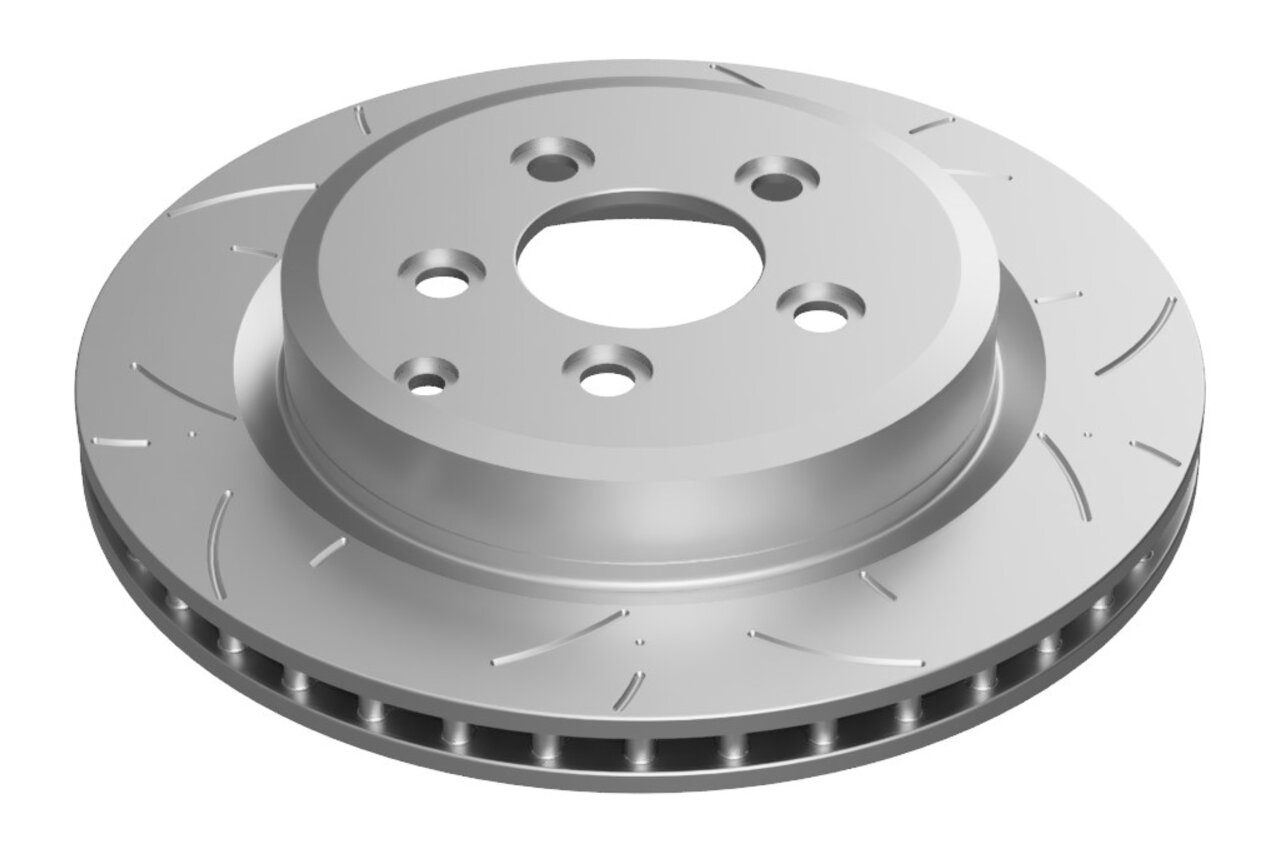

Protex NS5 Slotted Rear Disc Rotor 328mm PBR Upgrade suit AU3 BF FG Falcon SX SY SZ Territory

Description

Protex NS5 Slotted Rear Disc Rotor 328mm PBR Upgrade suit AU3 BF FG Falcon SX SY SZ Territory. To suit standard rear brake system. x2 quantity required per rear end. Popular pads to suit: DB1376 (UP/CP) or DB1675 (UP/CP/F).

Protex is one of Australia’s leading brake parts specialists, with over 20 years of experience. Offering Australia’s largest range of brake components, Protex provides solutions for everything from everyday driving to demanding performance applications. Built with a focus on safety, performance and reliability, Protex brake parts are developed using advanced technology to deliver dependable braking for every journey.

The new Protex Nova Slot (NS5) marks the next evolution in brake rotor technology. Designed for 4WDs, SUVs, and performance vehicles, the NS5 combines advanced engineering with practical benefits that make it the smart choice for your vehicle.

Bi-directional slot design

Developed using a formula driven CAD process, the unique 5 group slot pattern optimises cooling, pedal feel, and brake torque.
This design enhances fade resistance, out gassing, and debris removal; delivering consistent performance on and off road.

High carbon composition

Manufactured from specialised high carbon cast iron, Protex says NS5 offers superior thermal stability and reduced distortion under extreme heat.
Combined with Z360 ultra corrosion protection, it ensures durability even in harsh conditions.

Low noise and pad wear

Road tested for quiet operation and reduced dust, NS5 minimises NVH issues while optimising pad life, ensuring a smoother and cleaner braking experience.

Smart Dot wear indicator

Integrated 10 point Smart Dot technology provides a clear visual analysis of rotor wear, without wheel removal.
This saves time for technicians and improves workshop efficiency.”

Also known as: DBA T2 DBA2108S, DBA T3 DBA42108S, Protex Standard DR12317

Specifications

• Diameter (mm) 328
• Thickness (mm) 26
• Min Thickness (mm) 24
• Height (mm) 58.5
• Centre Bore (mm) 70.5
• Holes/Studs 5
• PCD (mm) 114.3
• Material High Carbon (H)
• Surface Machining Slotted (NS5) Bi-Directional Nova Slot
• Surface Coating Z360 – Ultracoat

Suits the following vehicles

• Ford BA Falcon (XR8). Engine: 5.4L Boss 260 32v V8
• Ford BF Falcon (XR6, XR6T). Engine: 4L Barra/T 24v 6 Cyl
• Ford BF Falcon (XR8). Engine: 5.4L Boss 260 32v V8
• Ford FG Falcon (XR8). Engine: 5.4L Boss 290 32v V8
• Ford FG X Falcon (XR8). Engine: 5.0L Boss 335 32v V8
• Ford FG X Falcon (XR8 Sprint). Engine: 5.0L Boss 345 32v V8
• Ford SX SY SZ Territory. Engines: 4L Barra, 4L Barra Turbo, 276DT

Manufacturer Part Number: PDR12317HNS5
