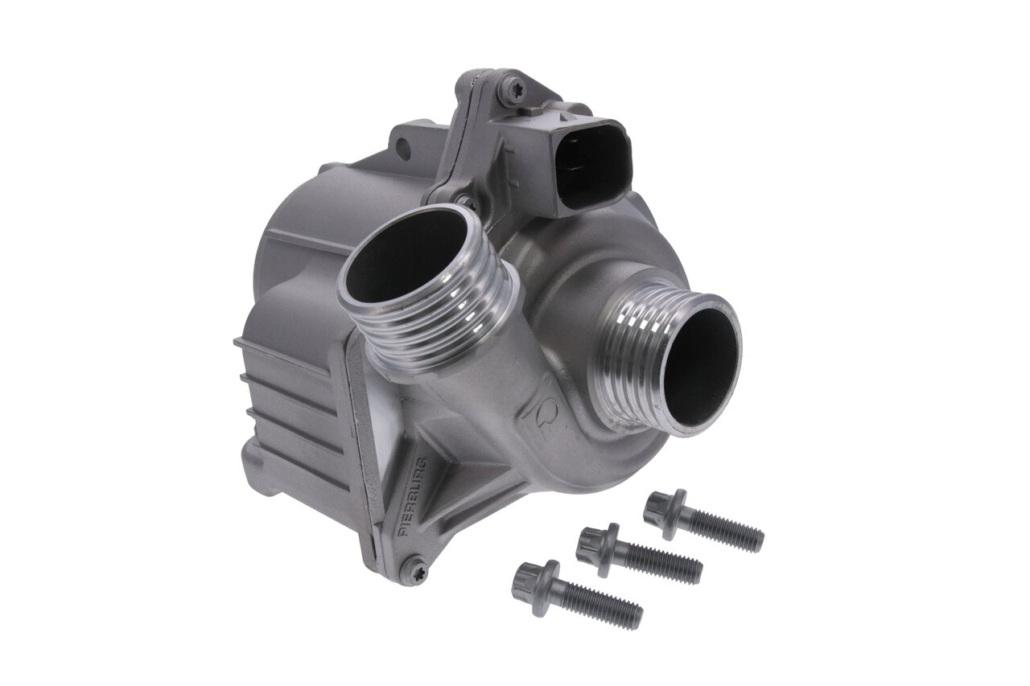

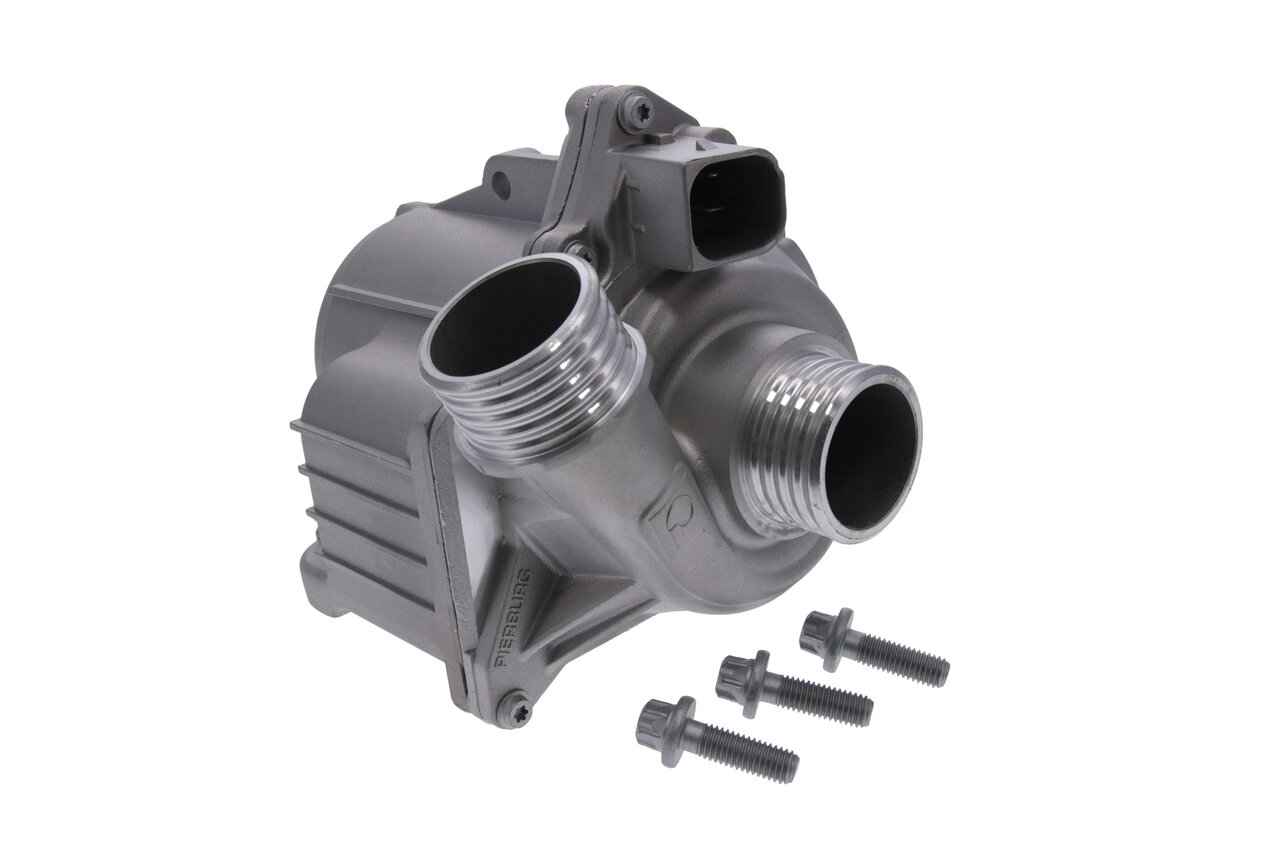

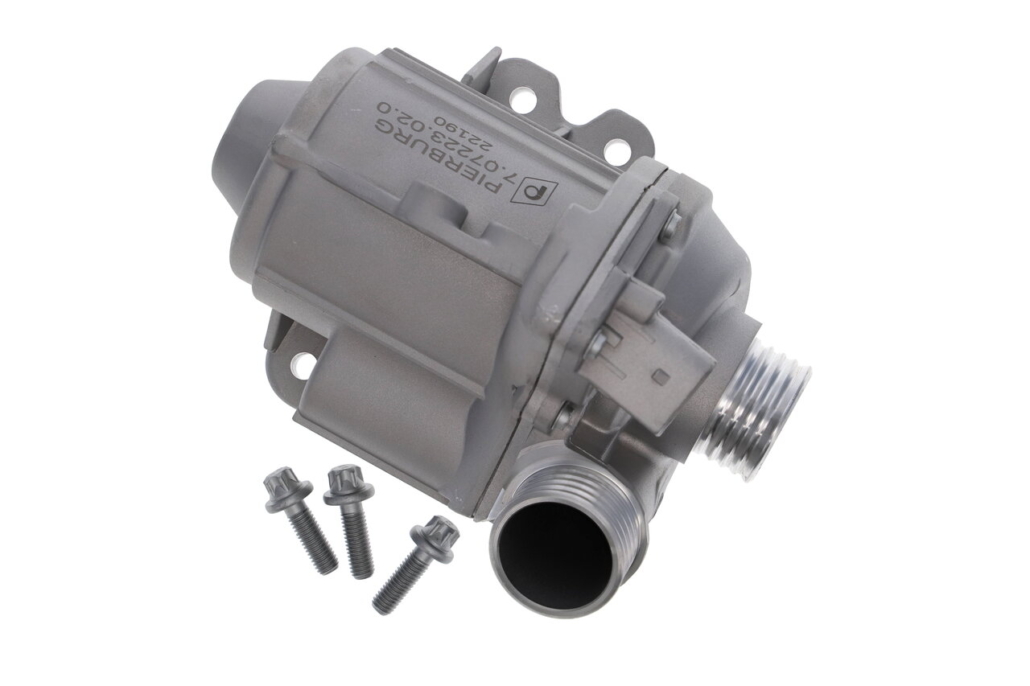

Pierburg CWA400 PWM Electric Water Pump / Intercooler Pump

Description

Pierburg CWA400 PWM Electric Water Pump / Intercooler Pump.

T.I. Performance have a high quality range of Electric Water Pumps to suit OEM replacement and Performance applications.

The CWA400 is a next generation high performance Brushless electric water pump, commonly used for engine coolant or water to air intercooler applications.

Capable of up to 220l/min flow at 0.5 bar pressure, this pump moves a lot of fluid — 2x that of the CWA200! This version of the pump uses PWM control.

Specifications:

• Power: 400W @ 12V DC (Approx 36A) , Power Reduction Below 12V
• Flow Rate: 220l/min @ 0.55bar (150l/min @ 0.85bar)
• Temperature range: -40°C – 128°C (water) / -40°C – 140°C (ambient)
• Control: PWM Control / Simple On/Off Mode
• Weight: 2.15kg
• Protection: IP67

See EWP-001 Datasheet for more information.
Suits the following models:

• BMW 135i E82 N54 B30A 6cyl 3.0L Twin Turbo 3.08 – 10.13
• BMW 135i E88 Cabriolet N54 B30A 6cyl 3.0L Twin Turbo 3.08 on
• BMW 335i E90 / 91 / 93 N54 B30A 6cyl 3.0 Twin Turbo 3.06 – 3.10
• BMW 535i F07 GT N55 B30 6cyl 3.0L Dir. Inj. Twin Turbo 10.09 – 3.17 Identify by VIN.
• BMW 535i F10 / 11 N55 B30 / A 6cyl 3.0L Dir. Inj. Twin Turbo 2009 – 3.17 Identify by VIN.
• BMW 640i F06 /12 / 13 N55 B30 6cyl 3.0L Dir. Inj. Turbo 8.11 on Identify by VIN.
• BMW 740i F01 / 02 N54 B30A 6cyl 3.0L Twin Turbo 03.09 – 09.12
• BMW 740i F01 / 02 N55 B30A 6cyl 3.0L Twin Turbo 10.12 on
• BMW X4 F26 xDrive 35i N55 B30M 6cyl 3.0 Dir. Inj. Turbo 6.14 on
• BMW X5 xDrive N55 B30 A 6cyl 3.0 1.10 – 09.13
• BMW X6 E71 xDrive35i N54 B30 6cyl 3.0 Twin Turbo 7.08 – 8.10
• BMW Z4 E89 sDrive 35i N54 B30 6cyl 3.0 Twin Turbo 4.09 on

Pierburg Part Number: 7.07223.10.0

Also Known As: Pierburg 7.07223.10.0, CWA400-PWM
