Pierburg CWA400 LIN Electric Water Pump / Intercooler Pump

Description

Pierburg CWA400 LIN Electric Water Pump / Intercooler Pump. See CPS-273 for connector.

T.I. Performance have a high quality range of Electric Water Pumps to suit OEM replacement and Performance applications.

The CWA400 is a next generation high performance Brushless electric water pump, commonly used for engine coolant or water to air intercooler applications.

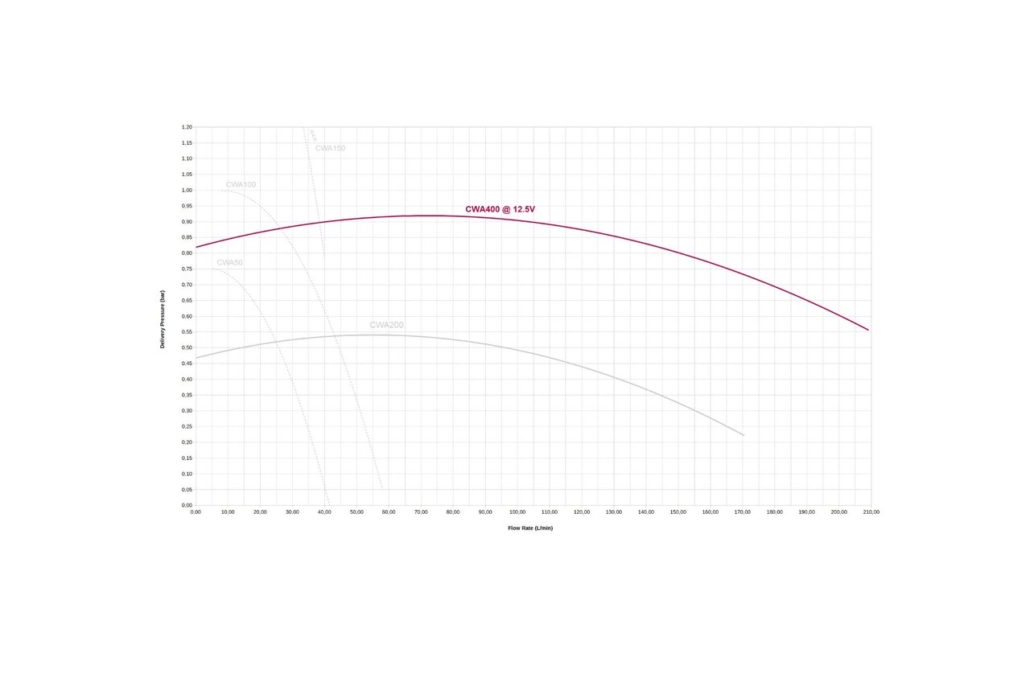

Capable of up to 220l/min flow at 0.5 bar pressure, this pump moves a lot of fluid — 2x that of the CWA200! This version of the pump uses LIN control.

Specifications:

• Power: 400W @ 12V DC (Approx 36A) , Power Reduction Below 12V
• Flow Rate: 220l/min @ 0.55bar (150l/min @ 0.85bar)
• Temperature range: -40°C – 128°C (water) / -40°C – 140°C (ambient)
• Control: LIN Bus / Simple On/Off Mode
• Weight: 2.15kg
• Protection: IP67

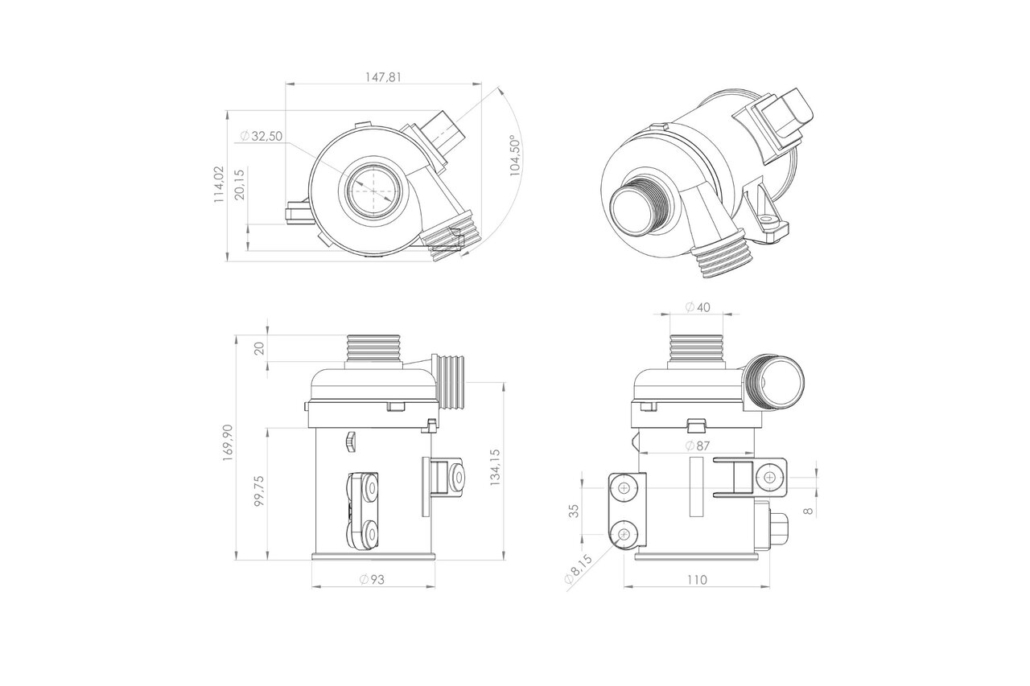

See EWP-065 Datasheet for more information.
Suits the following models:

• BMW 228i F23 N20 B20A 4cyl 2.0L Dir. Inj. Turbo 2.15 – 10.16
• BMW 328i F30 / 31 / 34 N20 B20A 4cyl 2.0L Dir. Inj. Turbo 2.12 – 1.17
• BMW 428i F32 / 33 / 36 N20 B20B 4cyl 2.0 Turbo 10.13 – 1.18
• BMW 528i F10 / F11 N20 B20A 4cyl 2.0 Dir. Inj. Turbo 9.11 – 3.17
• BMW X1 E84 xDrive 28i N20 B20A 4cyl 2.0 Dir. Inj. Turbo 9.12 – 9.15
• BMW X3 F25 xDrive 20i N20 B20A 4cyl 2.0 Dir. Inj. Turbo 12.11 – 3.13
• BMW X3 F25 xDrive 28i N20 B20A 4cyl 2.0 Dir. Inj. Turbo 5.12 – 1.17
• BMW X4 F26 xDrive 28i N20 B20A 4cyl 2.0 Dir. Inj. Turbo 6.14 – 4.18
• BMW X5 F15 xDrive 40e N20 B20A 4cyl 2.0 Dir. Inj. Turbo 6.16 – 11.18
• BMW Z4 E89 sDrive 28i N20 B20 4cyl 2.0 Turbo 9.11 – 1.19

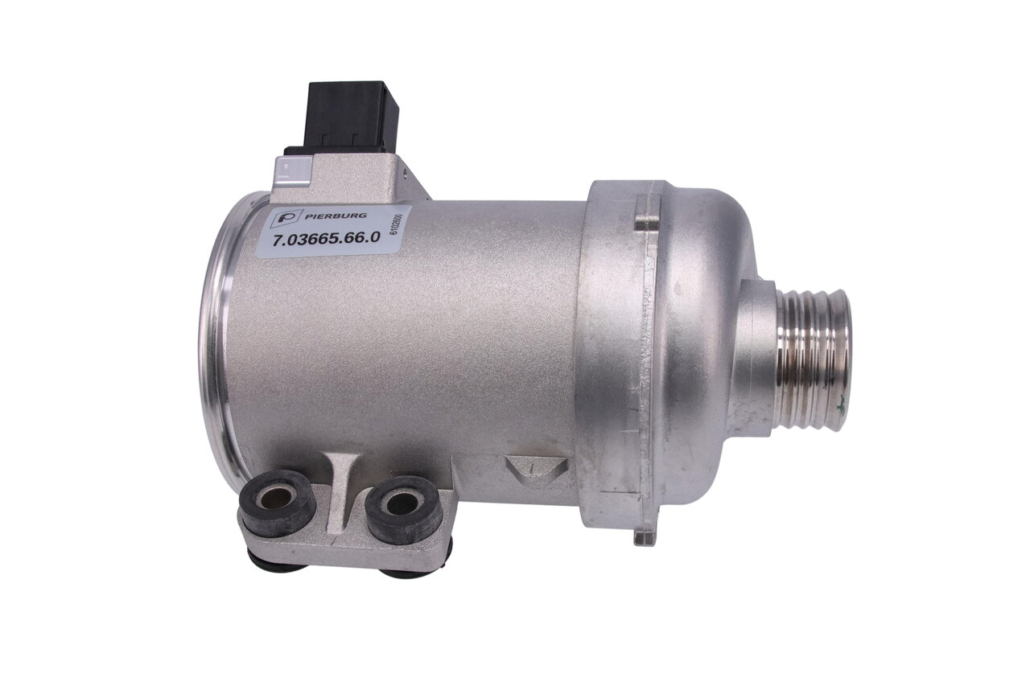

Pierburg Part Number: 7.03665.66.0

Also Known As: Pierburg 7.03665.66.0, CWA400-LIN, BMW 11517604027 , 11518625097 , 11518635089
