Description

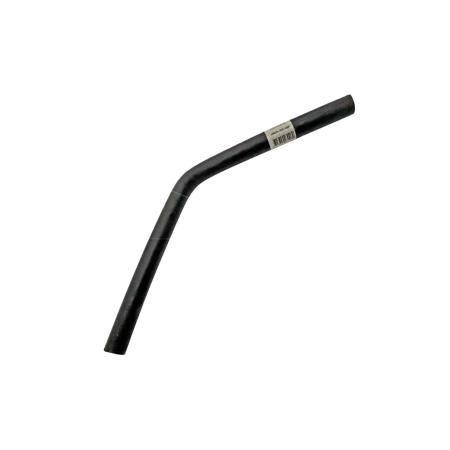

Mackay 25mm (1″) 45 degree Hose Bend suit Fuel & Oil -300mm x 300mm.
Mackay 90 Degree Universal Hose Bends to suit water, are perfect for plain water and automotive coolant applications. Manufactured using an electrochemical degradation (ECD) resistant EPDM rubber tube, lock-stitch knitted Aramid fibre reinforcement, with an EPDM rubber cover for heat and ozone resistance, these hoses are engineered for ease of installation, superior durability, and exceptional resistance to harsh environments, making them the go to choice for automotive systems.
Mackay is a trusted manufacturer of high-quality automotive hoses, mounts, and rubber components, engineered for durability and performance. With decades of experience, Mackay products meet OEM standards, ensuring reliability, superior fitment and longevity for Australian drivers.
Specifications:
- Material: EPDM Rubber and Aramid Fibre Reinforcement
- Resistance: Heat, Ozone, and Electrochemical Degradation
- Working Temperature Range: -40°C to 125°C (-40°F to 257°F)
- Exceeds Radiator Hose Specification SAE J20R4 Type EC Class D-1and Class D-2
- Note: Not suitable for fuel, oil transfer or brake fluid applications
| ID mm | ID Inches | Arm 1 Centreline Length (A1) | Arm 2 Centreline Length (A2) | Centreline Radius (R) | Maximum Working Pressure | Burst Pressure Requirement |
|---|---|---|---|---|---|---|
| 63mm | 2 1/2″ | 300mm | 300mm | 95mm | 0.14 MPa / 20 psi | 0.55 MPa / 80 psi |

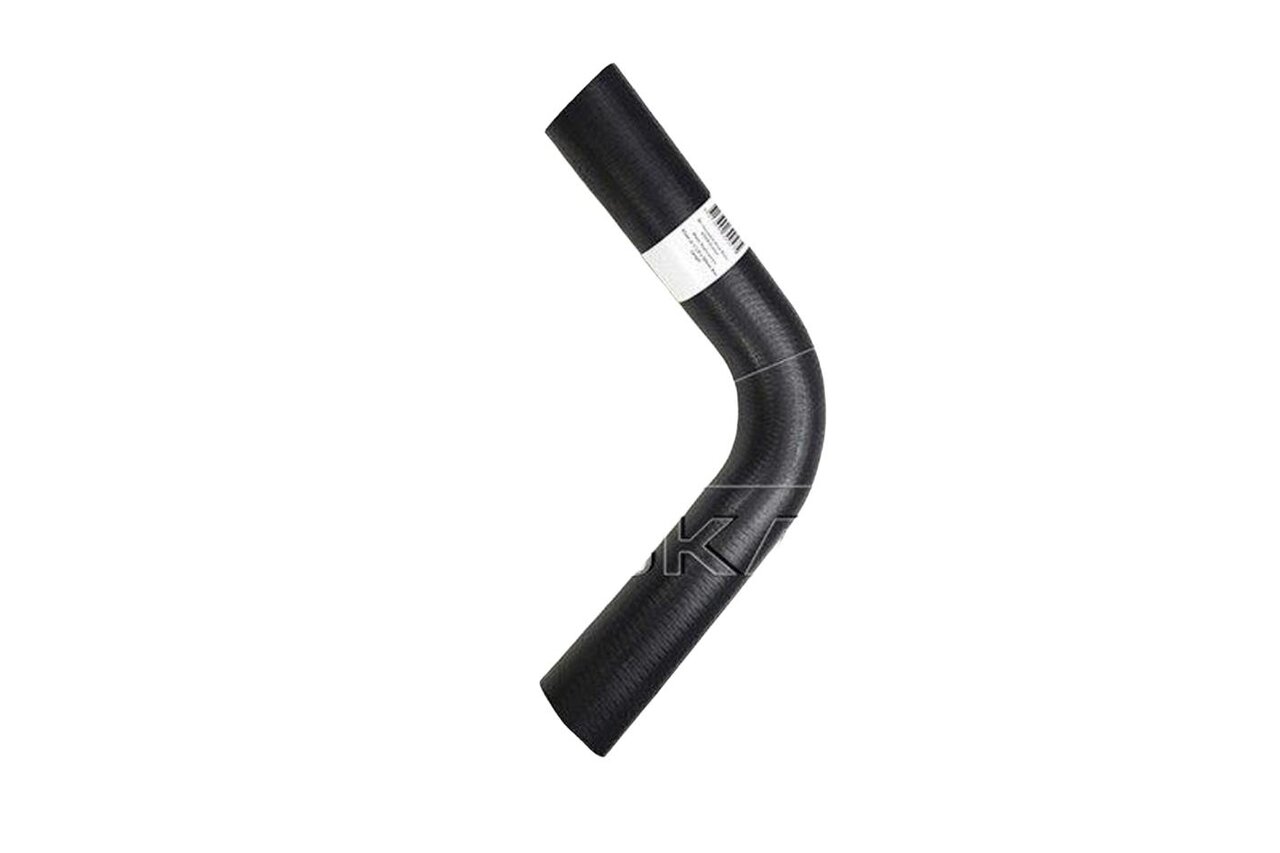

Manufacturer Part Number: UHB63-300
