Description

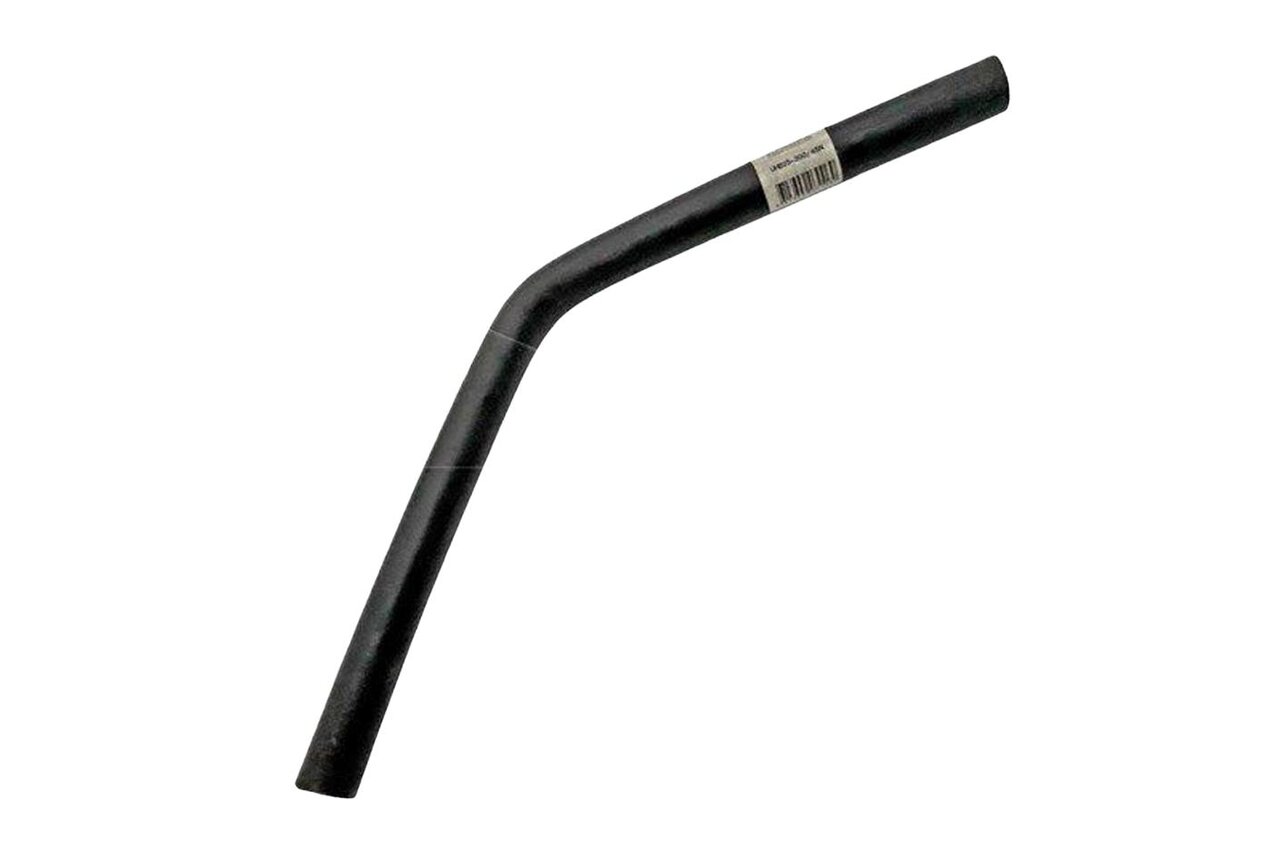

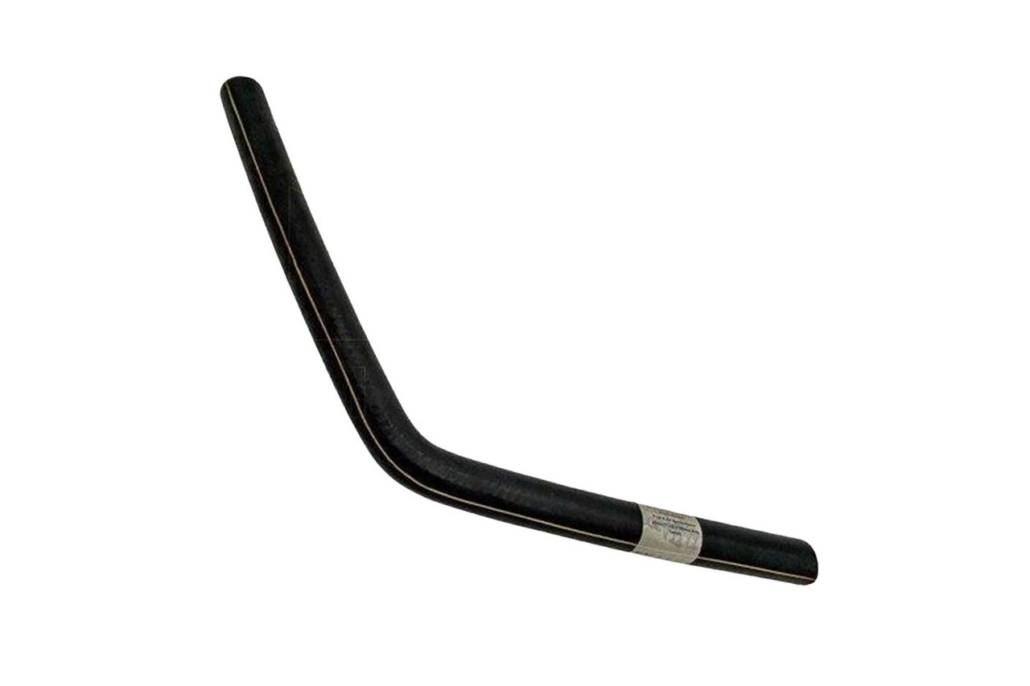

Mackay 25mm (1″) 45 degree Hose Bend suit Fuel & Oil -300mm x 300mm.
The Mackay 45 degree fuel and oil universal hose bend (size 25mm) is suitable for fuel filler and turbo intercooler applications and are manufactured with an OE grade nitrile/PVC (NBR/PVC) blended rubber tube and cover for fuel, oil and ozone resistance, with a knitted high tensile strength para-aramid fibre for maximum burst protection. This hose is suitable for use with leaded and unleaded petrol, ethanol blended fuels up to E85, diesel, lubricating oil as well as crankcase and fuel vapour applications. This hose is not suitable for fuel injection, in-tank fuel submersion, coolant, brake fluid or marine applications. Both the 45 & 90 degree universal hose bends for water and fuel/oil are engineered for ease of installation, superior durability, and exceptional resistance to harsh environments, making them the go to choice for automotive systems.
Mackay is a trusted manufacturer of high-quality automotive hoses, mounts, and rubber components, engineered for durability and performance. With decades of experience, Mackay products meet OEM standards, ensuring reliability, superior fitment and longevity for Australian drivers.
Specifications:
- Manufactured with an OE grade nitrile/PVC (NBR/PVC) blended rubber tube and cover for fuel, oil and ozone resistance, with a knitted high tensile strength para-aramid fibre for maximum burst protection
- Suitable for fuel filler and turbo intercooler applications
- Working Temperature Range -34°C to 100°C (-29°F to 212°F)
- Exceeds Fuel Hose Specification SAE J30R6
- Note: This hose is not suitable for fuel injection, in-tank fuel submersion, coolant, brake fluid or marine applications
| ID mm | ID Inches | Arm 1 Centreline Length (A1) | Arm 2 Centreline Length (A2) | Maximum Working Pressure | Burst Pressure Requirement |
|---|---|---|---|---|---|
| 25mm | 1” | 300mm | 300mm | 0.24 MPa / 35 psi | 1.20 MPa / 175 psi |
Manufacturer Part Number: UHB25-300/45N
