Deutsch DTM 12-Way Connector Kit

Description

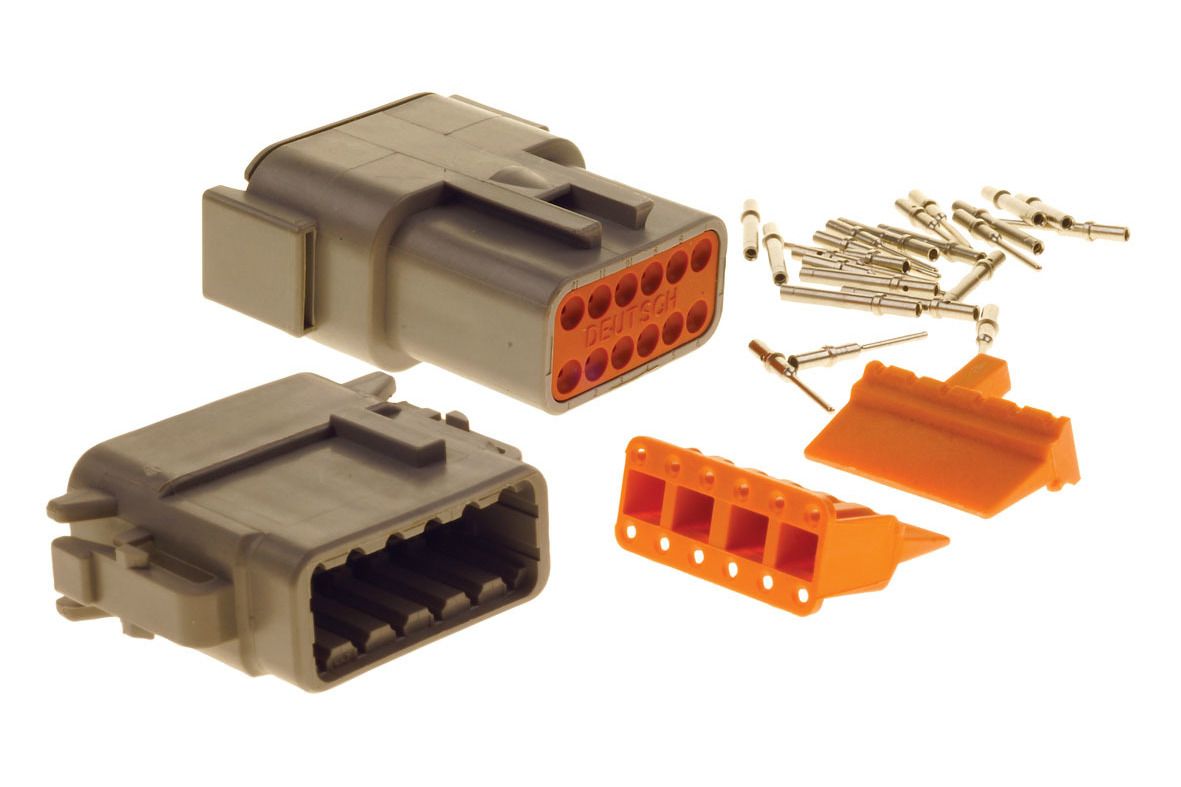

Deutsch DTM 12-Way Connector Kit.

Deutsch connectors are manufactured from a high quality thermoplastic, offering excellent corrosion resistance. They feature a wide operating temperature range, secure locking mechanisms, and a positive contact retention system. The included weatherproof seals are resistant to most common industrial and engine fluids, and are designed to work with multiple wire gauges. Deutch DT Connector Reference Guide

Specifications:

• Housing: Thermoplastic
• Seal: Silicone Rubber
• Wedgelocks: Thermoplastic
• Contact Size: 20
• Contact Rating: 7.5A @ 125°C
• Shock: 50G
• Vibration: 20G rms 10-2000Hz
• Operating Temperature: -55°C to 125°C

See our other items for the Crimp Tools & Removal Tool.

Deutsch Part Number: CPS-123

Also Known As: HT-031017
