Clock Spring suit Toyota Hilux GGN25R KUN26R 3 Pin Plug & Landcruiser 1VD-FTV Late

Description

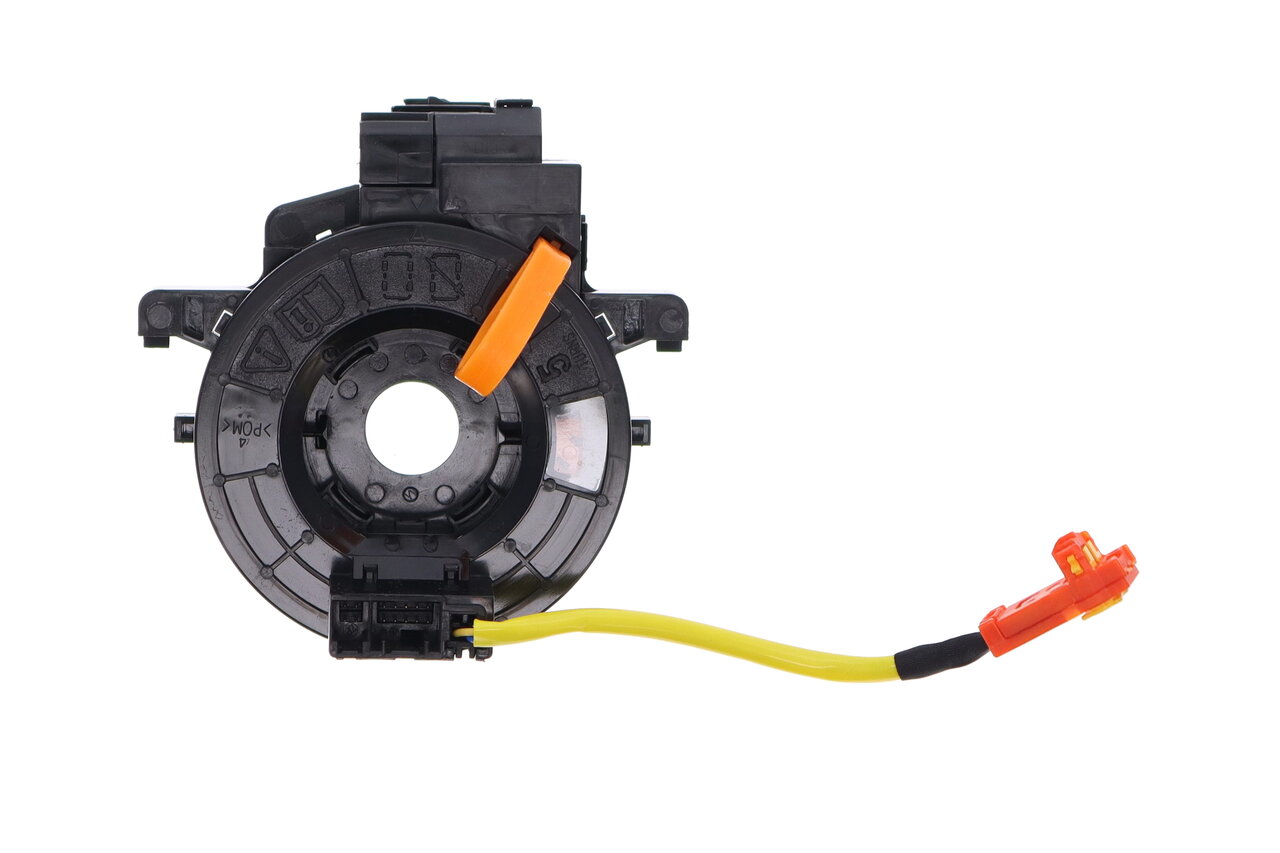

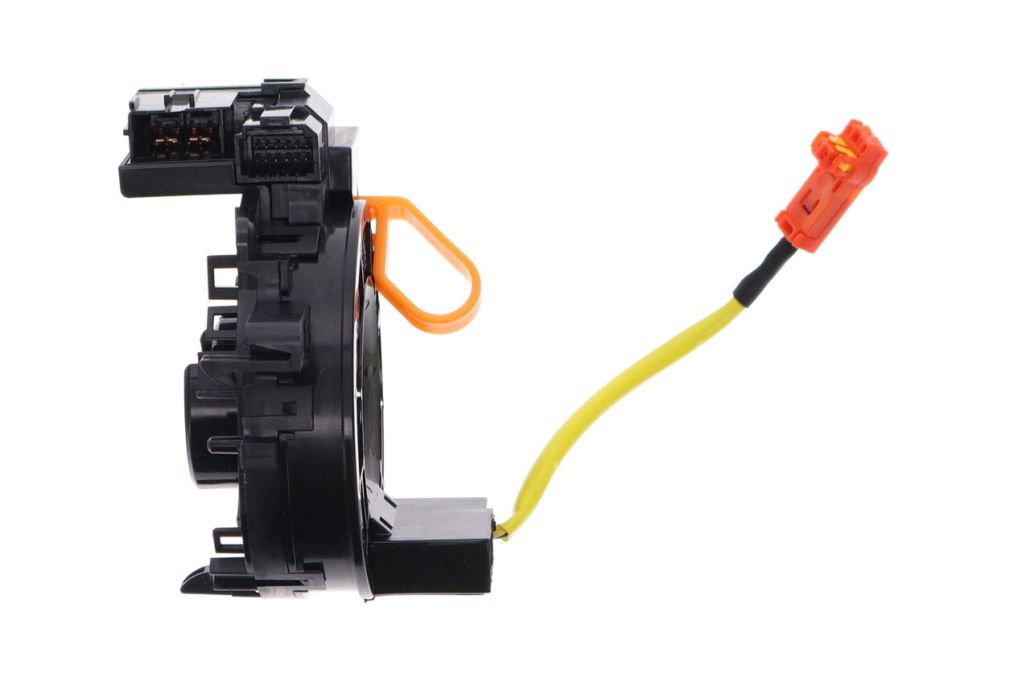

Clock Spring suit Toyota Hilux GGN25R KUN26R 3 Pin Plug & Landcruiser 1VD-FTV Late. See below for further vehicle & engine fittment. See CKS-021 for Hilux GGN25R & KUN26R 14 pin plug version, also see CKS-017 for earlier Landcruiser 1VD-FTV fittment.

T.I. Performance have added a comprehensive range of clock springs, also known as spiral cable, or contact reel. Located in the steering column directly behind the steering wheel, these allow the vehicles electrical system to maintain connection with the steering wheel, enabling features including driver airbag deployment, horn operation, steering wheel audio controls, cruise control buttons, and other steering wheel mounted controls. Clock springs are wear components, as the internal ribbon cable is twisted as the steering wheel turns. Replacement is required due to normal wear and tear, steering column repairs, accidents or airbag deployment, or diagnostic fault codes related to SRS or steering wheel functions. Browse the best quality clock springs for your vehicle, here at T.I. Performance.

Suits the following models:

• TOYOTA AQUA NHP10 1NZ-FXE 4cyl 1.5Lt 12.11 – 12.14 With TFT Multi Info Display
• TOYOTA AURIS NZE151 1NZ-FE 4cyl 1.5Lt 10.06 – 8.12 With Audio And Navigation Controls
• TOYOTA AURIS ZRE152 2ZR-FE 4cyl 1.8Lt 10.06 – 9.09 With Audio & Navigation
• TOYOTA AURIS ZRE152 2ZR-FAE 4cyl 1.8Lt 10.09 – 8.12
• TOYOTA BLADE AZE154 2AZ-FE 4cyl 2.4Lt 12.06 – 4.12
• TOYOTA BLADE AZE156 2AZ-FE 4cyl 2.4Lt 12.06 – 4.12
• TOYOTA BLADE GRE156 2GR-FE V6cyl 3.5Lt 8.07 – 4.12
• TOYOTA COROLLA NZE141 (IMP) 1NZ-FE 4cyl 1.5Lt 10.06 – 4.12 With Navigation
• TOYOTA COROLLA ZRE142 2ZR-FE 4cyl 1.8Lt 10.06 – 4.12 14 Pin. With Pre-Collision Or Navigation
• TOYOTA COROLLA ZRE152R 2ZR-FE 4cyl 1.8Lt 5.07 – 1.14 Leather Steering Wheel
• TOYOTA ESTIMA ACR50 2AZ-FE 4cyl 2.4Lt 1.06 – 10.19
• TOYOTA ESTIMA AHR20 2AZ-FXE 4cyl 2.4Lt 6.06 – 5.16 W/O Sensor
• TOYOTA ESTIMA GSR50 2GR-FE V6cyl 3.5Lt 1.06 – 5.16 With Navigation
• TOYOTA ESTIMA GSR55 2GR-FE V6cyl 3.5Lt 1.06 – 5.16 With Navigation
• TOYOTA HILUX GGN15R 1GR-FE V6cyl 4Lt 3.05 – 9.15 14 Pin Plug
• TOYOTA HILUX GGN25R 1GR-FE V6cyl 4Lt 3.05 – 9.15 14 Pin Plug
• TOYOTA HILUX KUN16R 1KD-FTV 4cyl 3Lt Turbo 3.05 – 9.15 14 Pin Plug
• TOYOTA HILUX KUN26R 1KD-FTV 4cyl 3Lt Turbo 3.05 – 9.15 W/O Sensor. W/O VSC. 14 Pin Plug
• TOYOTA HILUX TGN16R 2TR-FE 4cyl 2.7Lt 7.11 – 9.15 14Pin Plug
• TOYOTA MARK X ANA10 2AZ-FE 4cyl 2.4Lt 9.07 – 10.13 5 Pin
• TOYOTA PREVIA ACR50R 2AZ-FE 4cyl 2.4Lt 3.06 – 9.19
• TOYOTA PRIUS ZVW30R 2ZR-FXE 4cyl 1.8Lt 4.09 – 2.16 W/O Sensor
• TOYOTA PRIUS A ZVW40 2ZR-FXE 4cyl 1.8Lt 4.11 – 2.21 W/O Sensor
• TOYOTA PRIUS A ZVW41 2ZR-FXE 4cyl 1.8Lt 4.11 – 3.21 W/O Sensor
• TOYOTA PRIUS C NHP10R 1NZ-FXE 4cyl 1.5Lt 3.12 – 3.20 W/O Sensor
• TOYOTA PRIUS V ZVW40R 2ZR-FXE 4cyl 1.8Lt 5.12 – 12.21 W/O Sensor
• TOYOTA RACTIS NCP100 1NZ-FE 4cyl 1.5Lt 10.05 – 8.10 With Navigation
• TOYOTA RACTIS SCP100 2SZ-FE 4cyl 1.3Lt 10.05 – 8.10 With Navigation
• TOYOTA RACTIS NCP120 1NZ-FE 4cyl 1.5Lt 11.10 – 5.14 W/O Sensor
• TOYOTA RUKUS AZE151R 2AZ-FE 4cyl 2.4Lt 5.10 – 2.16
• TOYOTA SIENTA NCP81 1NZ-FE 4cyl 1.5Lt 9.13 – 6.15
• TOYOTA TARAGO ACR50R 2AZ-FE 4cyl 2.4Lt 3.06 – 9.19
• TOYOTA TARAGO GSR50R 2GR-FE V6cyl 3.5Lt 2.07 – 9.19
• TOYOTA VELLFIRE ANH20 2AZ-FE 4cyl 2.4Lt 5.08 – 1.15
• TOYOTA VELLFIRE ANH25 2AZ-FE 4cyl 2.4Lt 4.08 – 1.15
• TOYOTA VELLFIRE ATH20 2AZ-FXE 4cyl 2.4Lt 12.11 – 1.15
• TOYOTA VELLFIRE GGH20 2GR-FE V6cyl 3.5Lt 5.08 – 1.15
• TOYOTA VELLFIRE GGH25 2GR-FE V6cyl 3.5Lt 5.08 – 1.15
• TOYOTA VITZ NCP91 1NZ-FE 4cyl 1.5Lt 1.05 – 12.10 With Audio Controls
• TOYOTA VITZ NSP130 1NR-FE 4cyl 1.3Lt Dir Inj 12.10 – 3.14 With Navigation
• TOYOTA VITZ SCP90 2SZ-FE 4cyl 1.3Lt 1.05 – 12.10 With Audio Controls
• TOYOTA VITZ KSP90 1KR-FE 3cyl 1.0Lt 2.05 – 12.10 With Audio Controls
• TOYOTA WISH ZGE20 2ZR-FAE 4cyl 1.8Lt 4.09 – 10.17 With Audio Control
• TOYOTA YARIS NCP130R 2NZ-FE 4cyl 1.3Lt 11.11 – 4.20
• TOYOTA YARIS NCP131R 1NZ-FE 4cyl 1.5Lt 11.11 – 4.20
• TOYOTA YARIS NCP90R 2NZ-FE 4cyl 1.3Lt 11.05 – 10.11 Leather Steering Wheel
• TOYOTA YARIS NCP91R 1NZ-FE 4cyl 1.5Lt 11.05 – 10.11

PAT Premium packaging was created to combat the rise of low-quality aftermarket products in Australia. Now, select products that are sourced in bulk from leading manufacturers like Pierburg, Bosch, Delphi, and more come in distinctive PAT Premium packaging, ensuring easy identification of genuine products. Designed to alleviate confusion and guarantee quality, each package includes an authentication hologram.

PAT Premium Part Number: CKS-016
