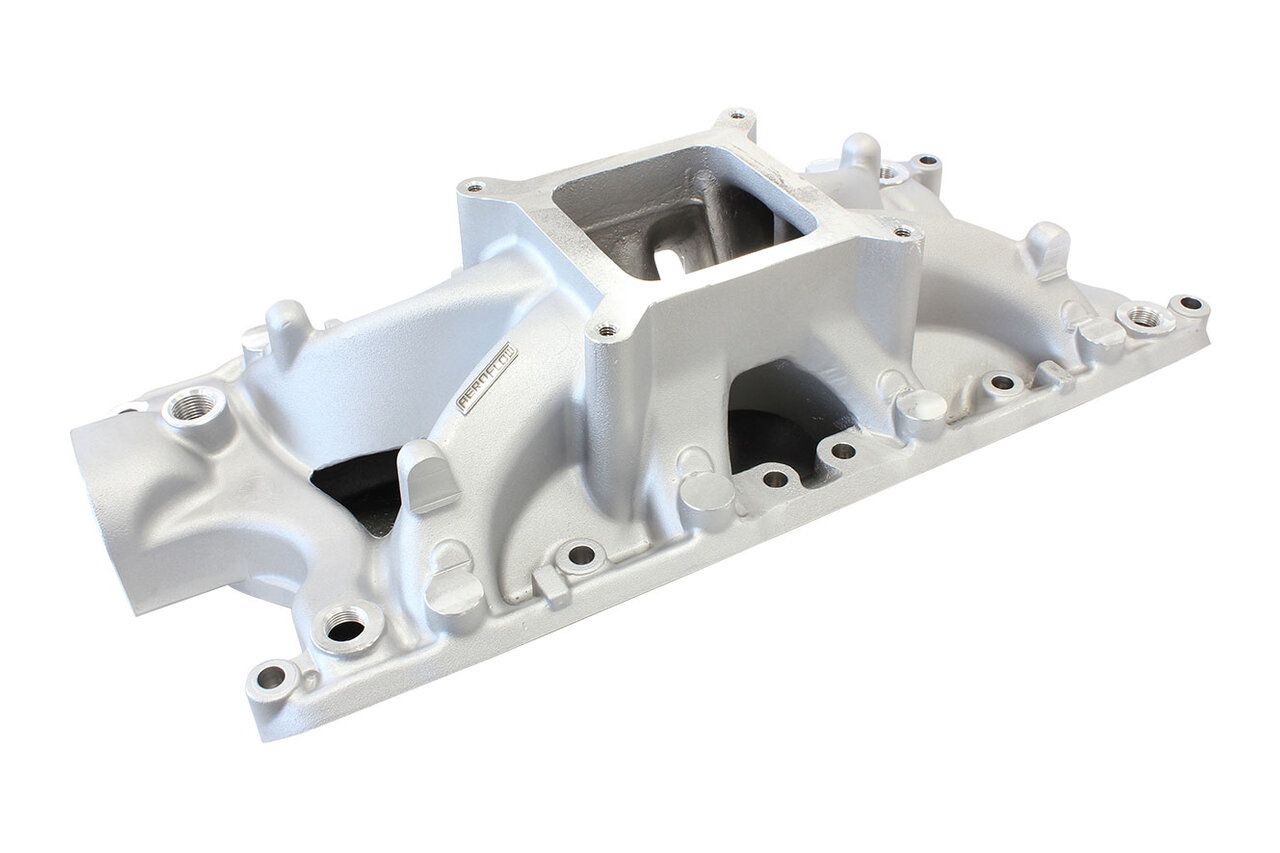

Aeroflow SBF Windsor Hi Rise Single Plane Intake Manifold Ford Windsor V8 – Natural

Description

Ford 289-302W Hi-Rise Single Plane Intake Manifold, Natural Cast Finish. 3000 – 8000 RPM, Square Bore Carburettor Pad, Non-EGR.

Get the maximum power from your carburetted engine with this Hi Rise Small Block Ford carburetted cast intake manifold. This single-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept after market square-bore carburettors with either manual or electric choke options available on today’s market. Specifically designed for 289,302 and 351 cubic inch small-block Ford Windsor engines operating from 3000 to7500 rpm range. In most cases,these manifolds accept late model water necks, air conditioning, alternator and H.E.I. ignition systems. This manifold is a Hi-Rise race style manifold designed for high rpm. It does feature dual distributor hold-downs and four corner water ports plus a fifth water outlet in the front of the manifold. Intake Runners should be port matched to your cylinder heads for optimal performance. • Fits Small Block Ford 289 and 302 Windsor Engines. • Single Plane Configuration. • RPM operating range – 3000 to 7000. • Natural Cast Finish.

Aeroflow Part Number: AF6000-2002
