Aeroflow FG Falcon Barra Turbo Intake Manifold – Natural

Description

Aeroflow Ford Falcon FG Barra Intake Manifold – Natural Cast Finish. -8ORB Fuel Rails to suit 14mm 3/4″ Length Fuel Injectors.

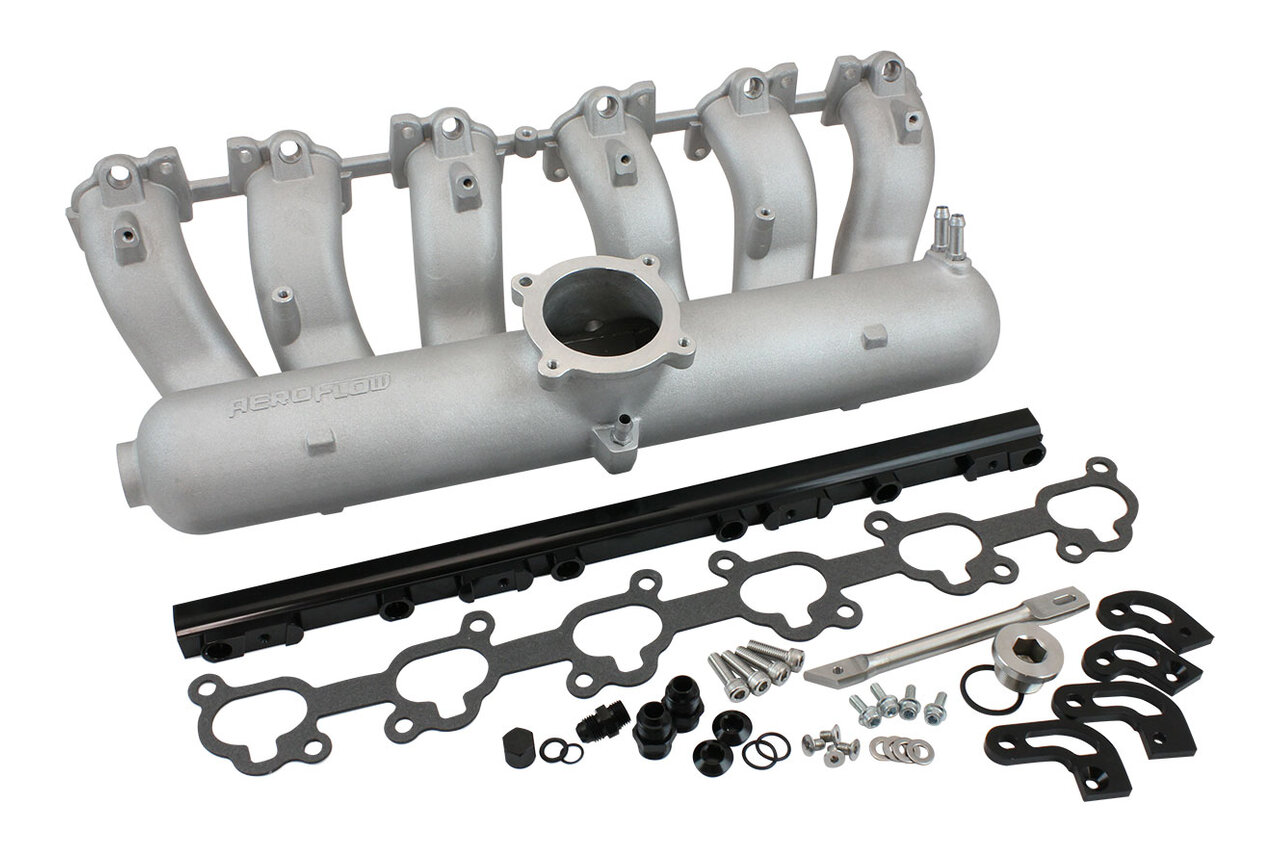

Upgrade your Barra intake manifold with Aeroflow Performance cast FG style intake manifold. It is manufactured to replicate the OE factory FG design, ensuring optimal compatibility with the Ford Falcon Barra engine platform. It accepts the Ford FG OE throttle body with a centre feed which is a great upgrade for any Barra engine looking for higher horsepower. Also, a great retrofit option with the ability to relocate the throttle body inlet in another direction making this manifold perfect for narrow engine bay installs during conversions. Each intake manifold features vacuum ports with factory hose barbs to suit the factory OE hoses. A -8ORB billet fuel rail with -8AN adapter fittings are included in this kit to suit 3/4″ length 14mm injectors (FG turbo factory injectors will also work). A stainless-steel centre brace to support the throttle body and intake gasket is provided for installation.

Aeroflow Part Number: AF6028-7000
