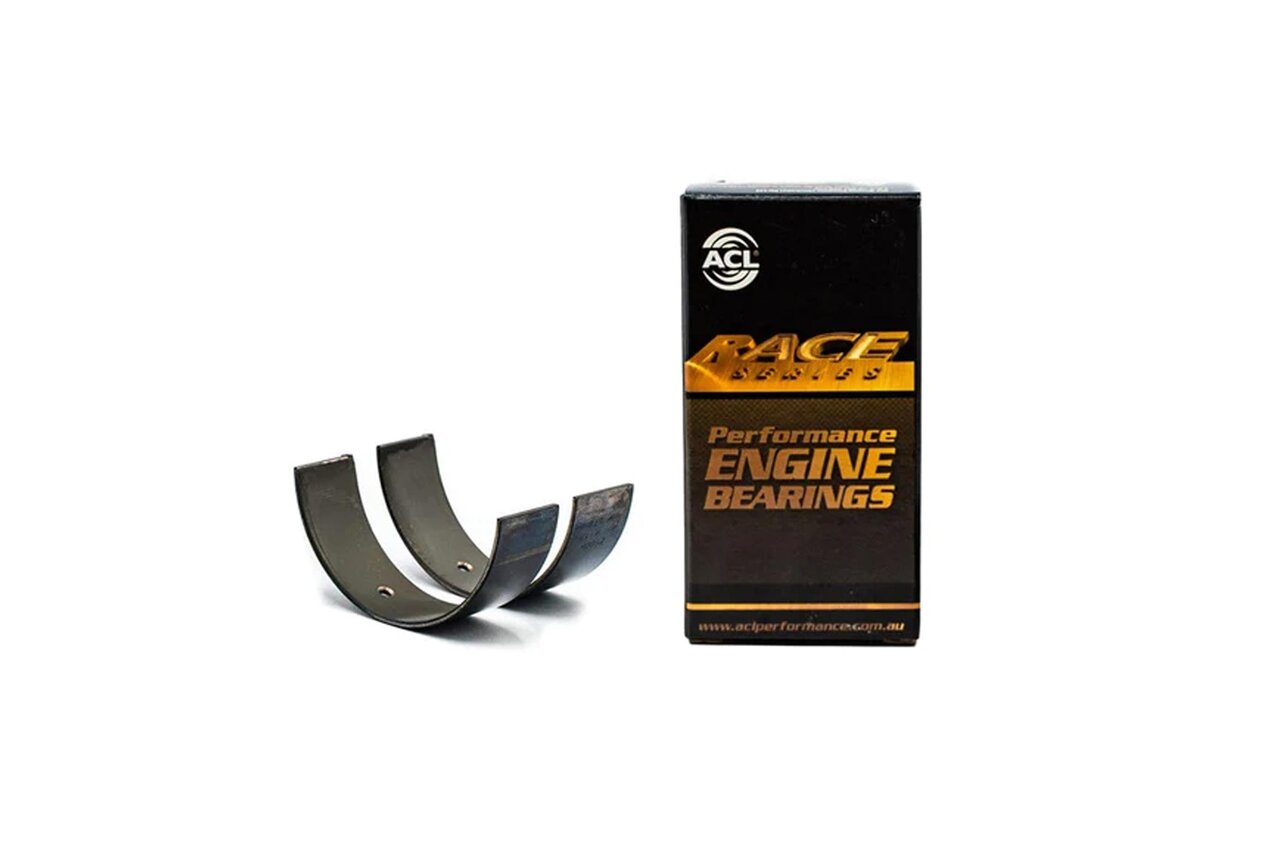

ACL Race Series Main Bearings suit Holden VZ VE VF Commodore Alloytec V6 LE0 LY7 LLT LFX LF1 SIDI

Description

ACL Race Series Main Bearings suit Holden VZ VE VF Commodore Alloytec V6 LE0 LY7 LLT LFX LF1 SIDI. Available in STD, .25, .025 sizes. We ship STD unless specified at checkout.

Founded in Tasmania, Australia in 1922, ACL is a globally recognised manufacturer specialising in high-performance engine bearings and components. Known for precision and durability, ACL Bearings are widely used in motorsports and high-performance applications, especially within engines that require reliable support under intense loads. View the full catalogue here

Specifications:

• Material: Race Series (Tri-Metal)
• Position: 1,2,4
  • Std Shaft Diam: 2.6768″/2.6775″ (67.992mm/68.008mm)
  • Oil Clearance: TBA
  • Maximum Wall: 0.0954″ (2.422mm)
  • Housing Bore: 2.8687″/2.8694″ (72.866mm/72.882mm)
  • Max Length: 0.7780″ (19.750mm)
• Position: 3 – Upper
  • Std Shaft Diam: 2.6768″/2.6775″ (67.992mm/68.008mm)
  • Oil Clearance: TBA
  • Maximum Wall: 0.0954″ (2.422mm)
  • Housing Bore: 2.8687″/2.8694″ (72.866mm/72.882mm)
  • Max Length: 0.9560″ (24.290mm)
• Position: 3 – Lower
  • Std Shaft Diam: 2.6768″/2.6775″ (67.992mm/68.008mm)
  • Oil Clearance: TBA
  • Maximum Wall: 0.0954″ (2.422mm)
  • Housing Bore: 2.8687″/2.8694″ (72.866mm/72.882mm)
  • Max Length: 0.7780″ (19.750mm)

Suits the following engines:

• Holden 3.6 Alloytec LE0 LY7 3566cc V6 DOHC
• Holden 3.6 Alloytec LLT LFX 3566cc V6 DOHC SIDI
• Holden 3.6 Alloytec LCA H9 3566cc V6 DOHC 24
• Holden 3.6 Alloytec LW2 LWR 3566CC V6 DOHC LPG
• Holden 3.2 Alloytec LU1 3195cc V6 DOHC 24V VCT EFI
• Holden 3.0 Alloytec LF1 LFW 2997cc V6 DOHC SIDI

Suits the following vehicles:

• Holden VZ Commodore, LY7 3.6L V6
• Holden VE Commodore, LY7 LE0 LFX LWR LF1 LFW LW2
• Holden VF Commodore, LFW LFX LWR
• Also suits WL & WM Statesman, LY7

Manufacturer Part Number: 4M2273H-STD
