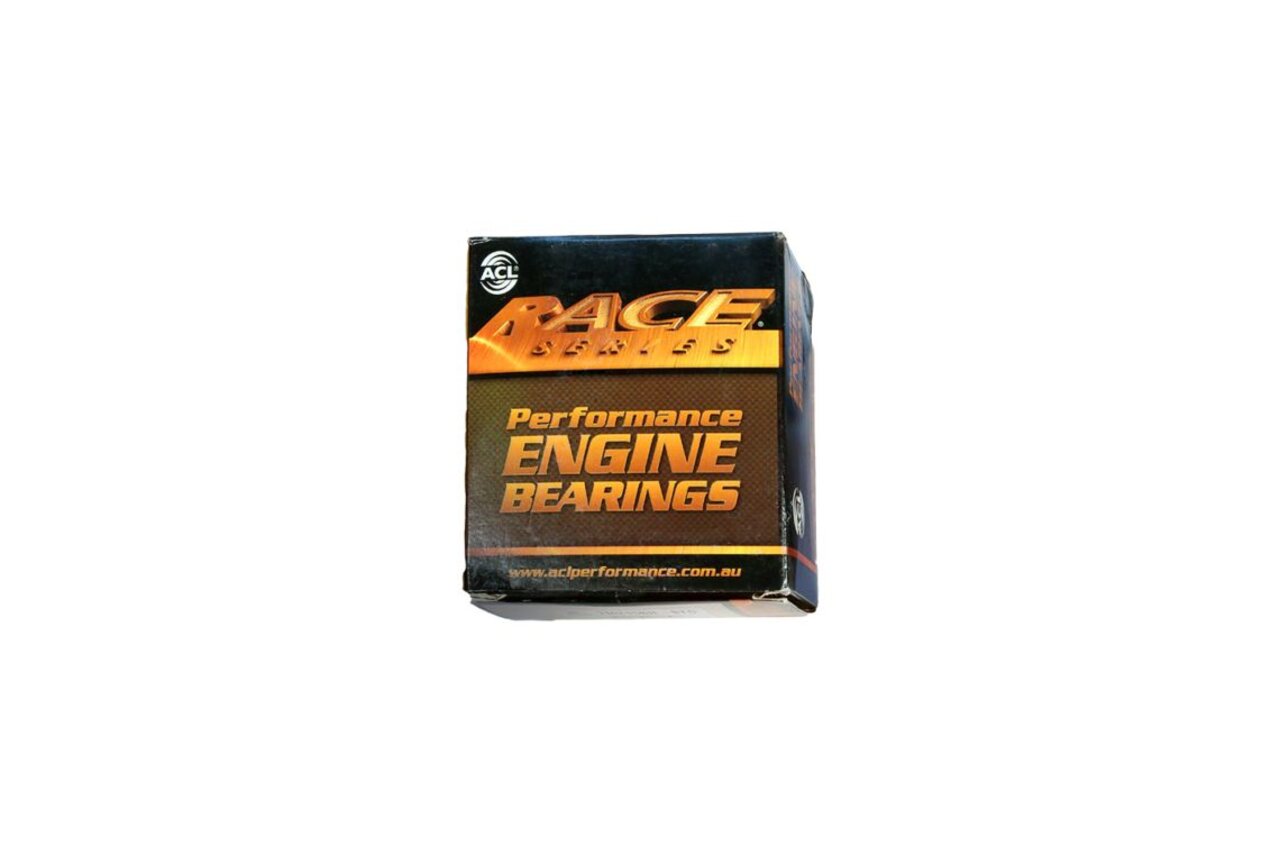

ACL Camshaft Bearing Set suit XY-XF Falcon 4.1 & 3.3 X-Flow 6 Cyl

Description

ACL Camshaft Bearing Set suit XY-XF Falcon 4.1 & 3.3 X-Flow 6 Cyl.

Founded in Tasmania, Australia in 1922, ACL is a globally recognised manufacturer specialising in high-performance engine bearings and components. Known for precision and durability, ACL Bearings are widely used in motorsports and high-performance applications, especially within engines that require reliable support under intense loads. View the full catalogue here

Specifications:

• Camshaft Bearing Set: 4C5826
• Camshaft Bearings: 5828
  • Manufacturer: ACL
  • Min Std Shaft Size: 1.8095in / 45.961mm
  • Max Std Shaft Size: 1.8105in / 45.987mm
  • Min Std Tunnel Size: 1.963in / 49.86mm
  • Max Std Tunnel Size: 1.964in / 49.886mm
  • Max Wall At Crown: 0.0758in / 1.925mm
  • Max Overall Length: 0.7299in / 18.54mm
  • Min Vertical Oil Clearance: 0.0009in / 0.023mm
  • Max Vertical Oil Clearance: 0.0049in / 0.125mm
  • Material: F23
• Camshaft Bearings: 5746
  • OE Part Number 1: CODE-6261B
  • Manufacturer: ACL
  • Min Std Shaft Size: 1.8095in / 45.961mm
  • Max Std Shaft Size: 1.8105in / 45.987mm
  • Min Std Tunnel Size: 1.9780in / 50.241mm
  • Max Std Tunnel Size: 1.9790in / 50.267mm
  • Max Wall At Crown: 0.0833in / 2.116mm
  • Max Overall Length: 0.7299in / 18.54mm
  • Min Vertical Oil Clearance: 0.0009in / 0.022mm
  • Max Vertical Oil Clearance: 0.0050in / 0.126mm
  • Material: F23
• Camshaft Bearings: 5826
  • Manufacturer: ACL
  • Min Std Shaft Size: 1.8095in / 45.961mm
  • Max Std Shaft Size: 1.8105in / 45.987mm
  • Min Std Tunnel Size: 1.9330in / 49.098mm
  • Max Std Tunnel Size: 1.9340in / 49.124mm
  • Max Wall At Crown: 0.0608in / 1.544mm
  • Max Overall Length: 0.7299in / 18.54mm
  • Min Vertical Oil Clearance: 0.0009in / 0.023mm
  • Max Vertical Oil Clearance: 0.0049in / 0.124mm
  • Material: F23
• Camshaft Bearing Set: 5827
  • Manufacturer: ACL
  • Min Std Shaft Size: 1.8095in / 45.961mm
  • Max Std Shaft Size: 1.8105in / 45.987mm
  • Min Std Tunnel Size: 1.948in / 49.48mm
  • Max Std Tunnel Size: 1.949in / 49.505mm
  • Max Wall At Crown: 0.0683in / 1.735mm
  • Max Overall Length: 0.7299in / 18.54mm
  • Min Vertical Oil Clearance: 0.0009in / 0.023mm
  • Max Vertical Oil Clearance: 0.005in / 0.126mm
  • Material: F23

Suits the following engines:

• Ford 3.3 X Flow Alum 3276cc 6 Cyl OHV 12V Carb ULP
• Ford 3.3 X Flow Alum 3276cc 6 Cyl OHV 12V Carb
• Ford 200 3.3 XFlow CI 3276cc 6 Cyl OHV 12V Carb
• Ford 4.1 X Flow Alloy 4092cc 6 Cyl OHV 12V ULP EFI
• Ford 4.1 X Flow Alloy Head 4092cc 6 Cyl OHV Carb
• Ford 4.1 X Flow Alloy 4092cc 6 Cyl OHV Carb ULP
• Ford 250 X Flow Cast Iron 4092cc 6 Cyl OHV 12V
• Ford 4.1 X Flow Alloy Head 4092cc 6 Cyl ULP EFI

Suits the following vehicles:

• XY XA XB XC XD XE XF Falcon

Manufacturer Part Number: 4C5826-STD
