Description
The Turbosmart FPR Pro 10 Series provides market-leading fuel control and response via true 1:1 ratio and superior flow and bypass capacity for vehicles with -10 / 10AN fuel feed and -10 / 10AN return fittings. Utilising our Stainless Steel Valve Seat & Milspec Diaphragm, the FPR10 Pro Series suits all Fuel types, including Race Fuel and aggressive leaded fuels. Our FPR10 Pro Range includes 1 x 10AN inlet, 4 x 8AN outlet ports and an 10AN return and is available in Pro EFI (50psi to 130psi) and Pro M (50psi to 100psi) for Mechanical Pump Systems.
Available in Pro (EFI) and Pro M (Mechanical Pump) – Suits Up to 3000HP Systems.
Features
10AN Inlet and Return
4 x 8AN Fuel Distribution
Stainless Steel Valve Seat
Suitable for all fuel types
1:1 Class Leading Ratio & Response
Adjustable Pressure
1/8 NPT Pressure Sensor Port
Unique Locking Collar Design
Milspec Diaphragm

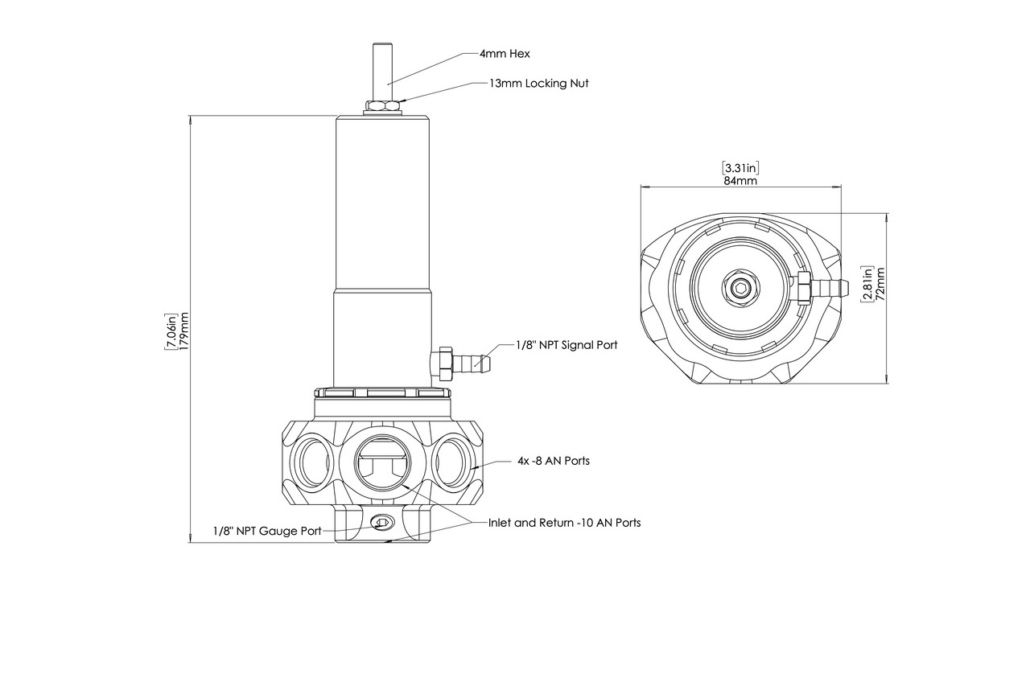

Detailed Specific Fuel Flow Data & Spec
FPR10 Pro Series (EFI & Mechanical) available in:
FPR10 Pro 5 Port EFI Suit -10AN (Black) TS-0404-1242
FPR10 Pro M 5 Port Mechanical Pump Suit -10AN (Black) TS-0404-1342
Manufacturer Part Number: TS-0404-1342
