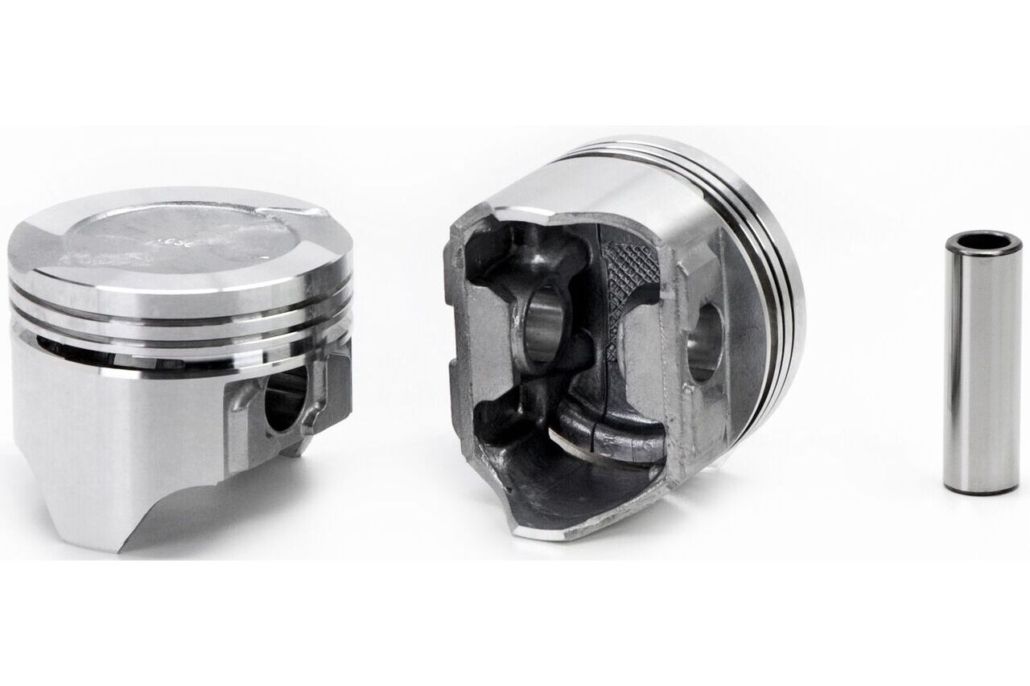

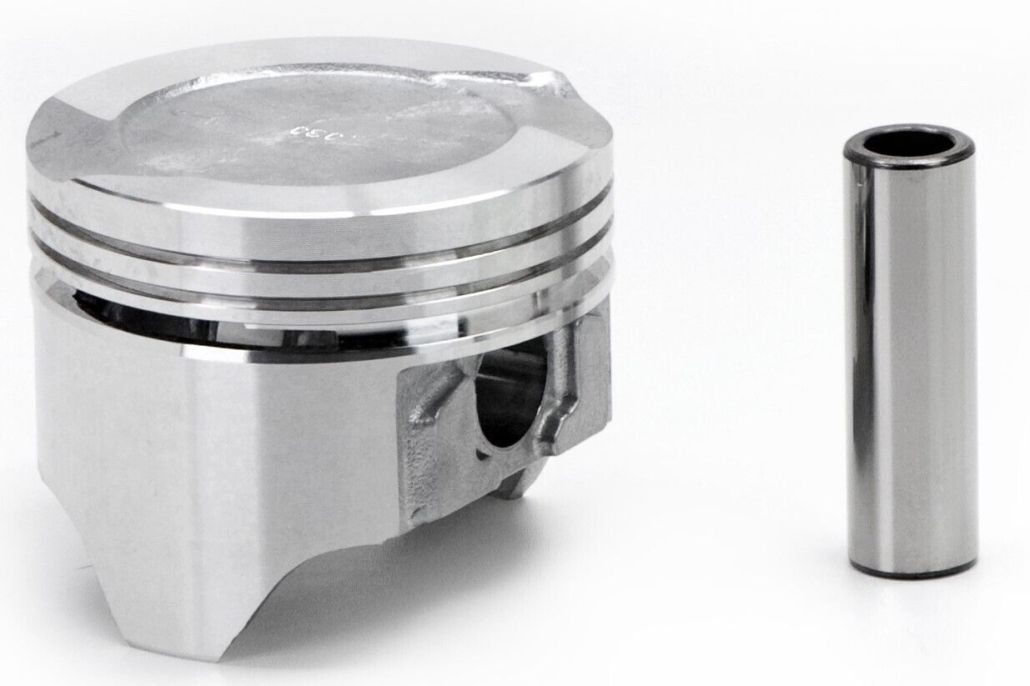

Silvolite Dish Top Piston & Pin Set 6.5cc suit XW-XE Falcon 302c 351c Cleveland V8

Description

Silvolite Dish Top Piston & Pin Set 6.5cc suit XW-XE Falcon 302c 351c Cleveland V8. Available in 0.75, 1.00, 1.50 sizes. We ship 0.75 unless specified at checkout.

Specifications:

• Piston Set: 8 x Piston & Pins
• Std Bore Size: 4.000″
• Size: 0.75mm / .030″
• Head Type: Dish Top with 2 Valve Reliefs (6.5cc)
• Piston Type: Cast
• Length: 3.230″
• Comp Height: 1.630″ – .060″
• Pin Size: .9122″ x 3.020″
• Pin Type: Press Fit
• Skirt Coating: No
• Piston to Bore: See Label on Box
• Top Ring Width: 5/64″
• 2nd Ring Width: 5/64″
• Oil Ring Width: 3/16″
• Ring Set: 2M139 or 139

Suits the following engines:

• Ford 351 Cleveland 5768cc V8 OHV 16V Carb Lead
• Ford 302 Cleveland 4944cc V8 OHV 16V Carb Lead

Manufacturer Part Number: 8P1099-0.75
