Raceworks Remote Idle Speed Control Kit

Description

Raceworks Remote Idle Speed Control Kit. Ideal for situations where a standard idle control valve won’t fit, such as ITBs, or where it needs to be hidden. Equivalent to HT-020304.

This idle speed controller is ECU controlled and operates the stepper motor in small steps starting from zero (0) where the pintle has extended and completely closed the air bypass. The ECU will then operate the stepper motor up to 255 steps fully retracting the pintle.

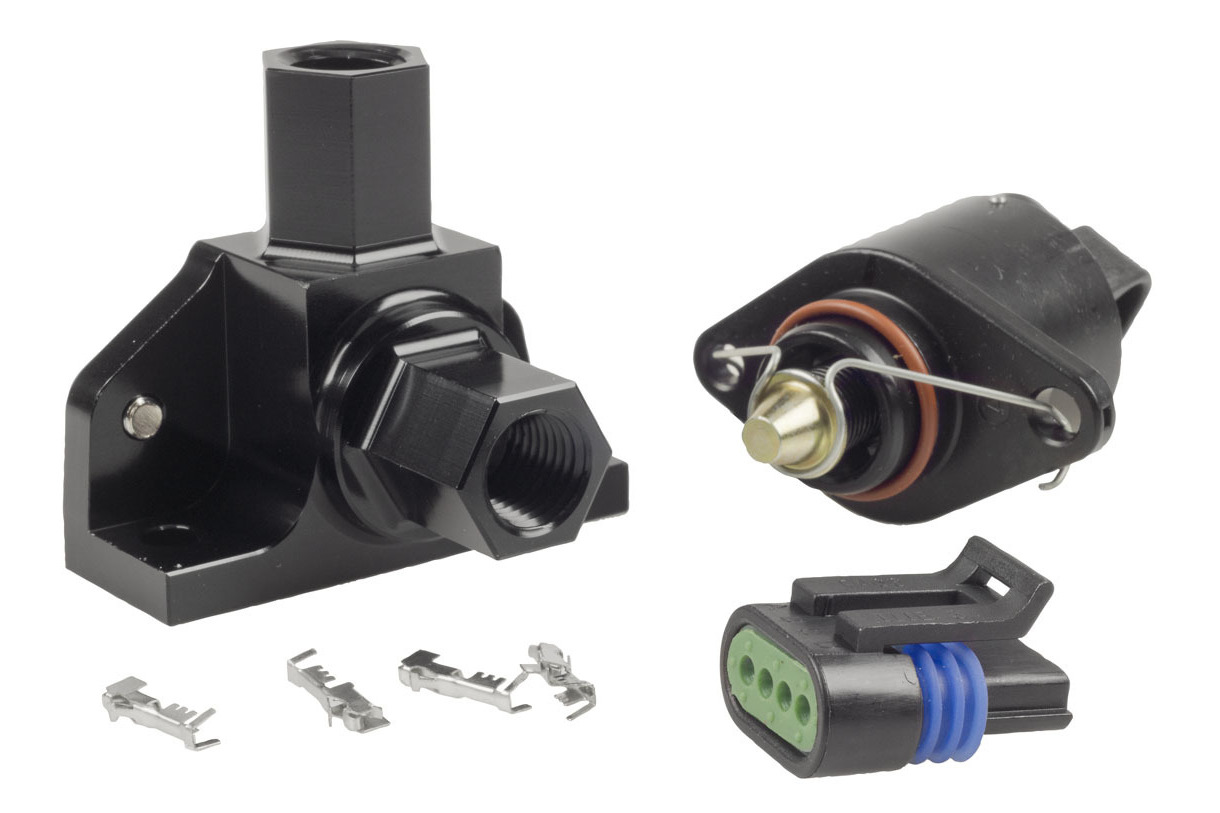

Includes:

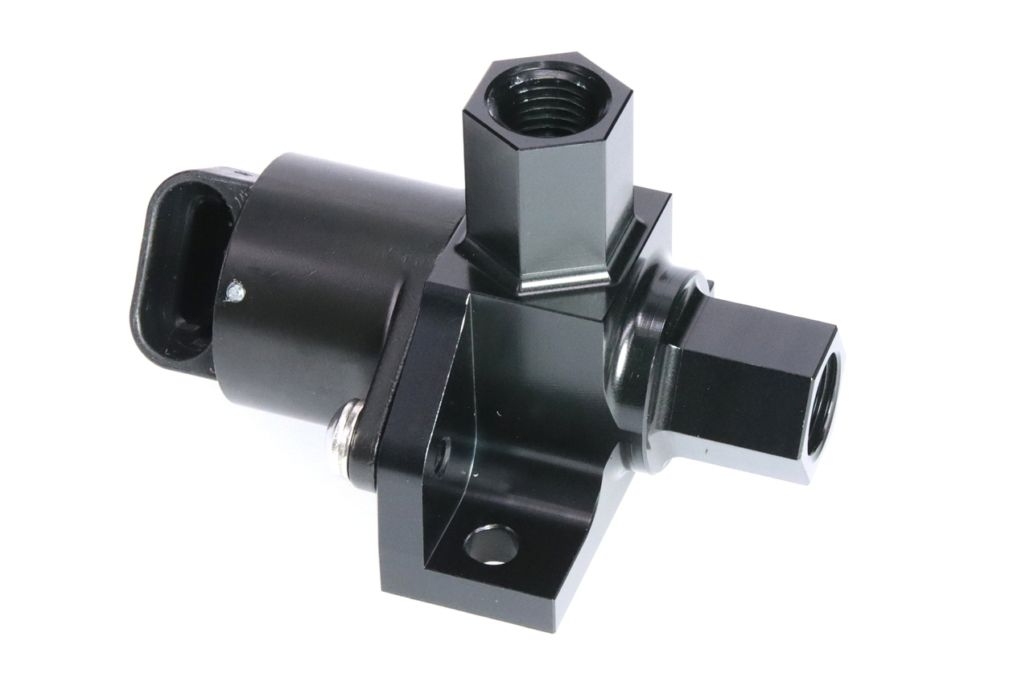

• Billet Aluminium Mount (contains 2x 1/4 NPT Ports)
• 4-wire Stepper Motor
• Connector, plug & pins

Full spec sheet: LR-RWORKS-DATA-ALY-056BK.pdf

There’s nothing worse than a stalling or stumbling engine. Ensure you have tip top idle control using our range of high quality Idle Speed Controllers, designed to replace OEM applications or fit aftermarket setups using simple 2-wire control.

All Raceworks products come with a 2 year warranty.

Raceworks Part Number: ALY-056BK

Also Known As: HT-020304
