Description

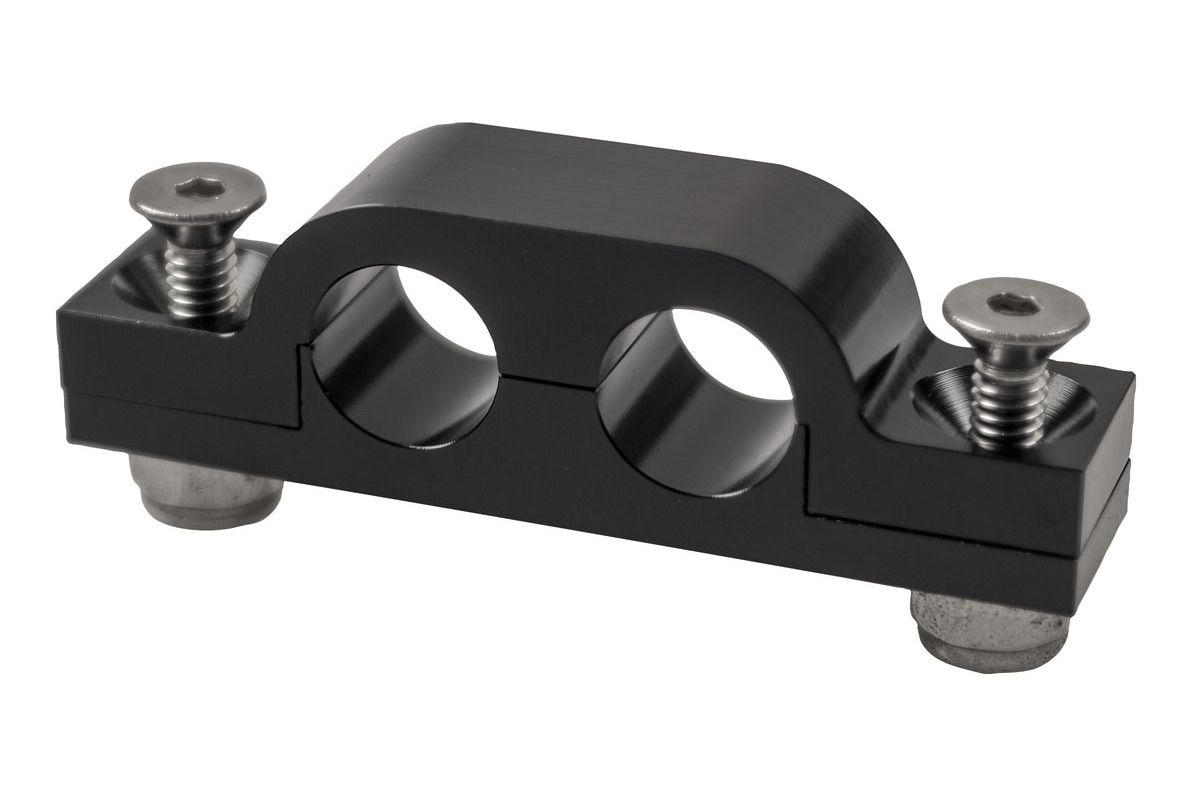

Raceworks 7/16″ / 11.1mm Billet Aluminium Panel Mountable Line Separator.
Hose Fitting Chart
Part Number | ID Metric | ID Imperial | 100 Series | 120 Series | 200/220/240 Series | 260 Series | 400 Series | 600 Series |
RWF-148-6MM | 6.4mm | 1/4″ | -3 | -3 | ||||
RWF-148-8MM | 7.9mm | 5/16″ | -4 | -5 | ||||
RWF-148-10MM | 9.5mm | 3/8″ | -6 | |||||
RWF-148-11MM | 11.1mm | 7/16″ | -4 | -6 | -4 | |||
RWF-148-12MM | 12.7mm | 1/2″ | -8 | |||||
RWF-148-13MM | 13.5mm | 17/32″ | -6 | -6 | -8 | -5 | ||
RWF-148-14MM | 14.3mm | 9/16″ | ||||||
RWF-148-16MM | 15.9mm | 5/8″ | -8 | -8 | -10 | -6 | -10 | |
RWF-148-17MM | 16.7mm | 21/32″ | ||||||
RWF-148-19MM | 19.1mm | 3/4″ | -12 | -8 | ||||
RWF-148-21MM | 20.6mm | 13/16″ | -10 | -10 | ||||
RWF-148-24MM | 23.8mm | 15/16″ | -12 | -12 | -10 | |||
RWF-148-25MM | 25.4mm | 1″ | -12 |
Raceworks hose accessories make the difference between an average finish an and exceptional finish. From billet alloy line separators, to P Clamps and P Clips, this range will allow you to tidy up your hose installation.
All Raceworks products come with a 2 year warranty.
Raceworks Part Number: RWF-148-11MM
