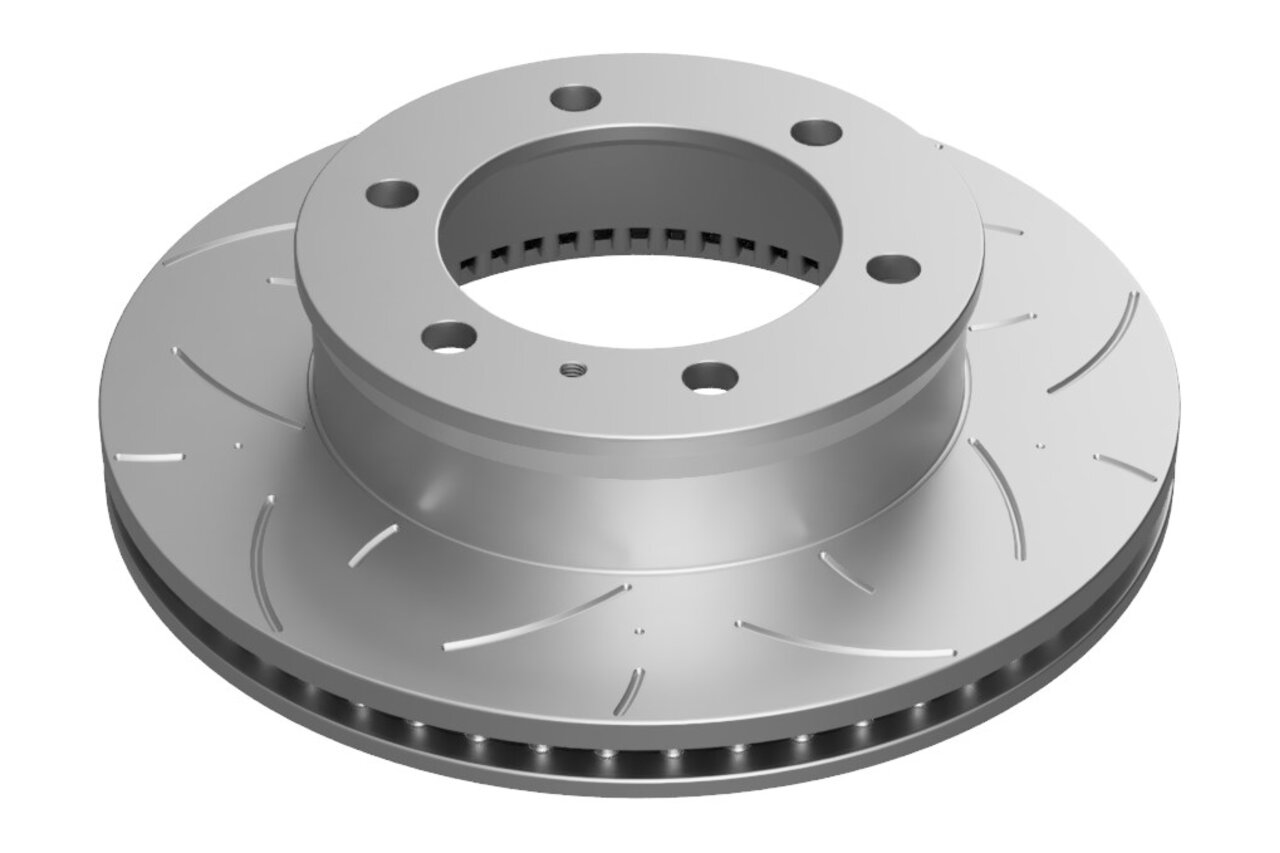

Protex NS5 4WD Slotted Front Brake Disc Rotor 288.5mm suit Ford PJ PK Ranger (WEAT) & Mazda

Description

Protex NS5 4WD Slotted Front Brake Disc Rotor 288.5mm suit Ford PJ PK Ranger (WEAT) & Mazda. x2 quantity required per front end. Popular brake pads to suit: DB1681F.

Protex is one of Australia’s leading brake parts specialists, with over 20 years of experience. Offering Australia’s largest range of brake components, Protex provides solutions for everything from everyday driving to demanding performance applications.

The new Protex Nova Slot (NS5) marks the next evolution in performance brake rotor technology. Designed for 4WDs, SUVs, and performance vehicles, the NS5 rotor combines advanced engineering with practical benefits that make it the smart choice for your vehicle.

Features

• Bi-directional slot design – Developed using a formula driven CAD process, the unique 5 group slot pattern optimises cooling, pedal feel, and brake torque. This design enhances fade resistance, out gassing, and debris removal; delivering consistent performance on and off road.
• High carbon composition – Manufactured from specialised high carbon cast iron, NS5 offers superior thermal stability and reduced distortion under extreme heat. Combined with Z360 ultra corrosion protection, it ensures durability even in harsh conditions.
• Low noise and pad wear – Road tested for quiet operation and reduced dust, NS5 minimises NVH issues while optimising pad life, ensuring a smoother and cleaner braking experience.
• Smart Dot wear indicator – Integrated 10 point Smart Dot technology provides a visual analysis of rotor wear, without wheel removal. This saves time for technicians and improves workshop efficiency.

Specifications

• Diameter (mm) 288.5
• Thickness (mm) 28
• Min Thickness (mm) 26
• Height (mm) 70.5
• Centre Bore (mm) 98
• Holes/Studs 6
• PCD (mm) 139.7
• Material High Carbon (H)
• Surface Machining Slotted (NS5) Bi-Directional Nova Slot
• Surface Coating Z360 – Ultracoat

Suits the following vehicles

• Ford PJ PK Ranger. Engine: 3.0L WEAT 4 Cyl
• Ford PE PG PH Courier. Engines: 2.5L WLAT 4 Cyl, 2.6L G6 4 Cyl, 4.0L 1V V6 6 Cyl
• Mazda B2500 Bravo UN. Engine: 2.5L WLAT 4 Cyl
• Mazda B2600 Bravo UN. Engine: 2.6L G6 4 Cyl
• Mazda B4000 Bravo. Engine: 4.0L 1V V6 6 Cyl
• Mazda Bounty UN. Engine: 2.5L WLAT 4 Cyl
• Mazda Bravo UN. Engines: 2.5L WLAT 4 Cyl, 2.6L G6 4 Cyl, 4.0L 1V V6 6 Cyl
• Mazda BT50 UN. Engines: 2.5L WLAT 4 Cyl, 3.0L WEAT 4 Cyl

Manufacturer Part Number: FDR12502HNS5

Also known as: DBA T2 DBA2952S, DBA T3 DBA42952S, Protex Standard DR12502
