Melling Melling Standard Volume Oil Pump suit GenIII LS1 LS2 LS3 L98 V8

Description

Melling Melling Standard Volume Oil Pump suit GenIII LS1 LS2 LS3 L98 V8.

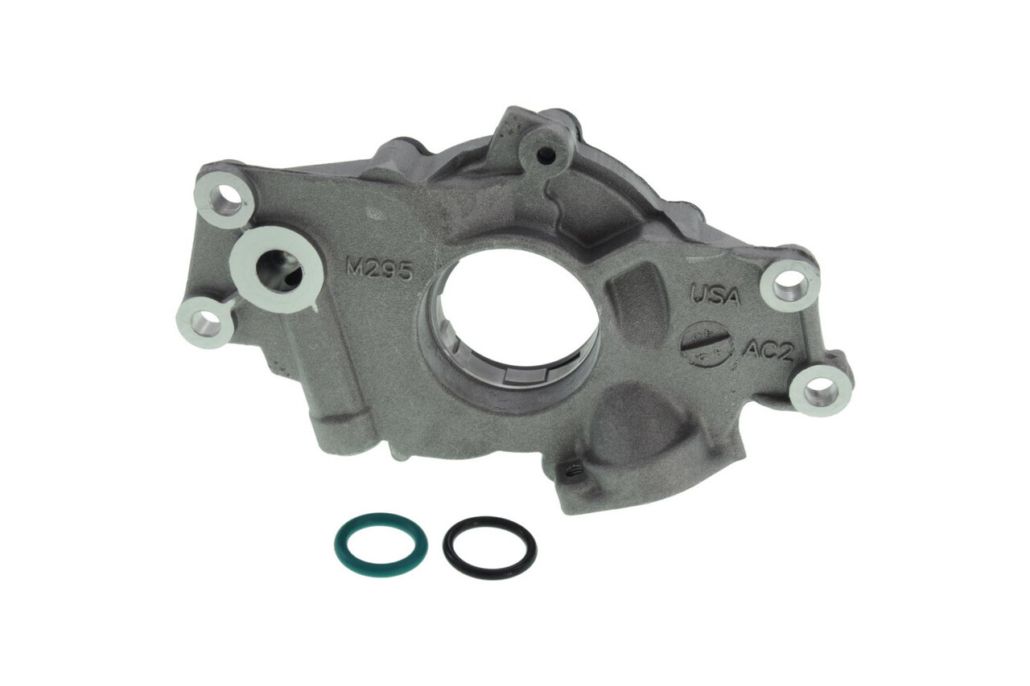

The Melling M295 pump is a standard pressure, standard volume pump that is considered a suitable replacement for the factory oil pump (GM part # 12586665) and offers improved resistance against cavitation at higher RPMs. The cast aluminum housing is CNC-machined and hardcoat anodized. The cast iron cover is CNC-machined and phosphate coated. The relief valve features a screw-in valve plug.

The factory LS oil pump suffers from cavitation above 6,200 RPM, which results in a drop in oil flow of nearly 1 GPM by 7,000 RPM. This cavitation can also aerate the oil, which causes drops in oil pressure and can result in oil starvation. Engines that run at RPM’s above 6,200 should use this upgraded Melling pump to prevent these issues.

Suits Non-DOD/AFM applications or where DOD/AFM has been deleted.

Specifications:

• Factory volumetric flow rate, around 6.8 GPM
• 20 PSI Pressure Relief Valve Spring
• 0.96 Displ (cuin/rev)
• The cast aluminum housing is CNC machined and hardcoat anodized
• The cast iron cover is CNC machined and phosphate coated. The cover also features countersunk screws for more timing cover clearance.
• The relief valve features a screw in valve plug with the optional lower stock pressure spring supplied
• Compatible with factory GM oil pickup tubes

Manufacturer Part Number: M295
