Description

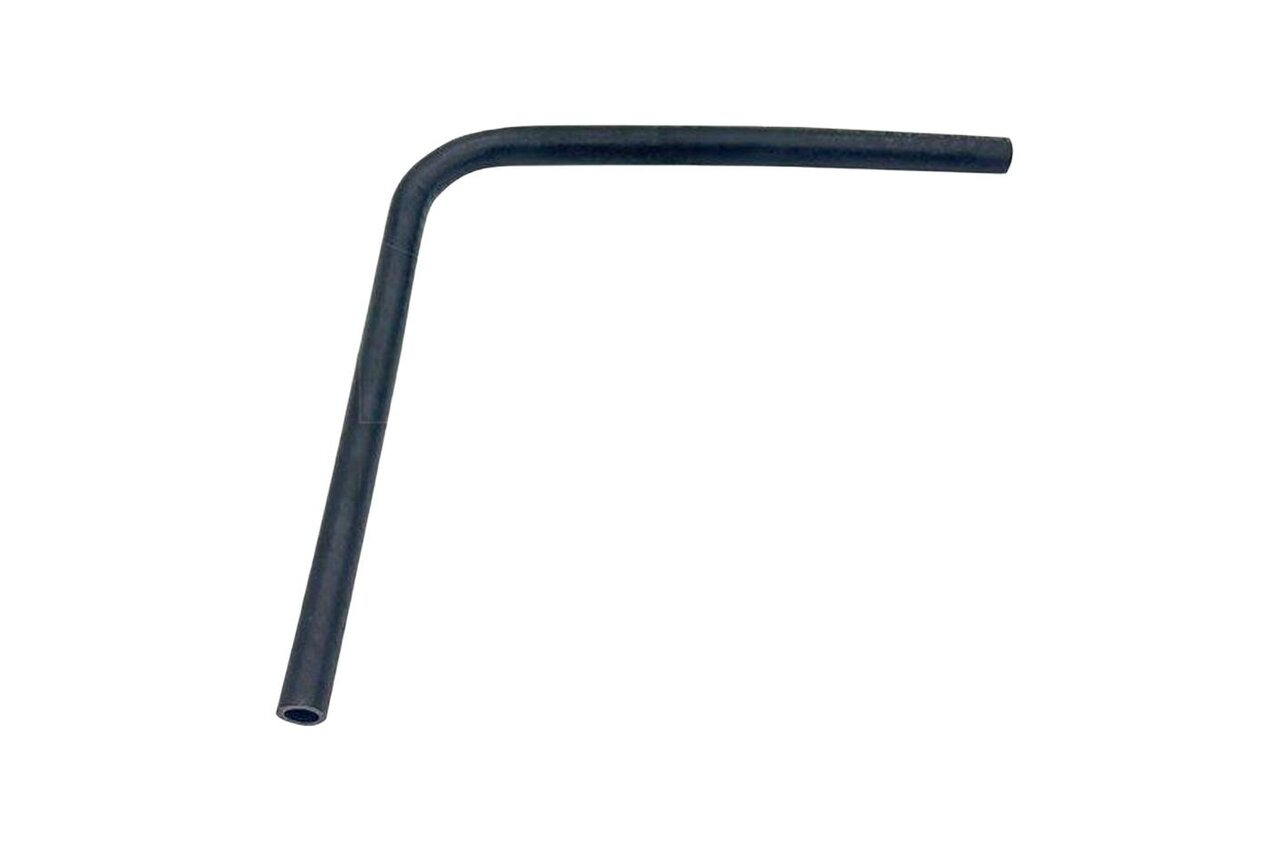

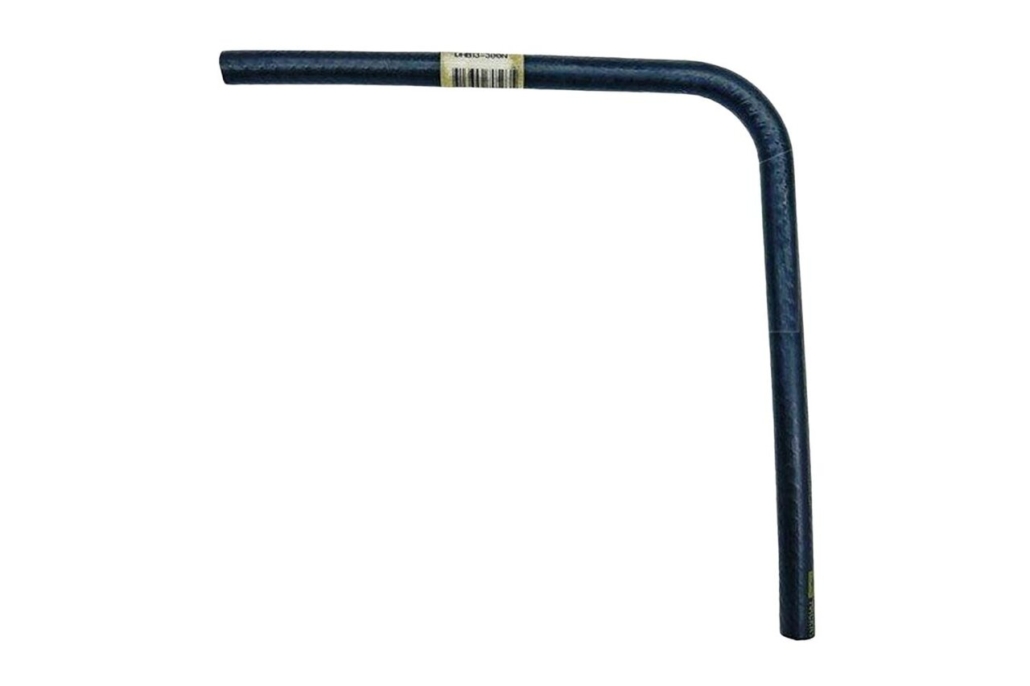

Mackay 13mm (1/2″) 90 degree Hose Bend suit Fuel & Oil -300mm x 300mm.
Mackay 90 degree fuel & oil universal hose bends (sizes 8mm to 19mm ID) are suitable for low pressure fuel applications and are manufactured using a nitrile (NBR) rubber tube, lock-stitch knitted aramid fibre reinforcement, with an oil resistant hypalon (CSM) rubber outer cover for maximum heat and ozone protection. These hoses are suitable for use with leaded and unleaded petrol, ethanol blended fuels up to E85, diesel, lubricating oil as well as crankcase and fuel vapour applications. These hoses are not suitable for fuel injection, in-tank fuel submersion, coolant, brake fluid or marine applications. Both the 45 & 90 degree universal hose bends for water and fuel/oil are engineered for ease of installation, superior durability, and exceptional resistance to harsh environments, making them the go to choice for automotive systems.
Mackay is a trusted manufacturer of high-quality automotive hoses, mounts, and rubber components, engineered for durability and performance. With decades of experience, Mackay products meet OEM standards, ensuring reliability, superior fitment and longevity for Australian drivers.
Specifications:
- Manufactured using a nitrile (NBR) rubber tube, lock-stitch knitted aramid fibre reinforcement, with an oil resistant hypalon® (CSM) rubber outer cover for maximum heat and ozone protection
- Suitable for low pressure fuel applications
- Working Temperature Range: -34°C to 100°C (-29°F to 212°F)
- Exceeds Fuel Hose Specification SAE J30R6
- Note: This hose is not suitable for fuel injection, in-tank fuel submersion, coolant, brake fluid or marine applications
| ID mm | ID Inches | Arm 1 Centreline Length (A1) | Arm 2 Centreline Length (A2) | Centreline Radius (R) | Maximum Working Pressure | Burst Pressure Requirement |
|---|---|---|---|---|---|---|
| 13mm | 1/2” | 300mm | 300mm | 50mm | 0.24 MPa / 35 psi | 1.20 MPa / 175 psi |
Manufacturer Part Number: UHB13-300N
