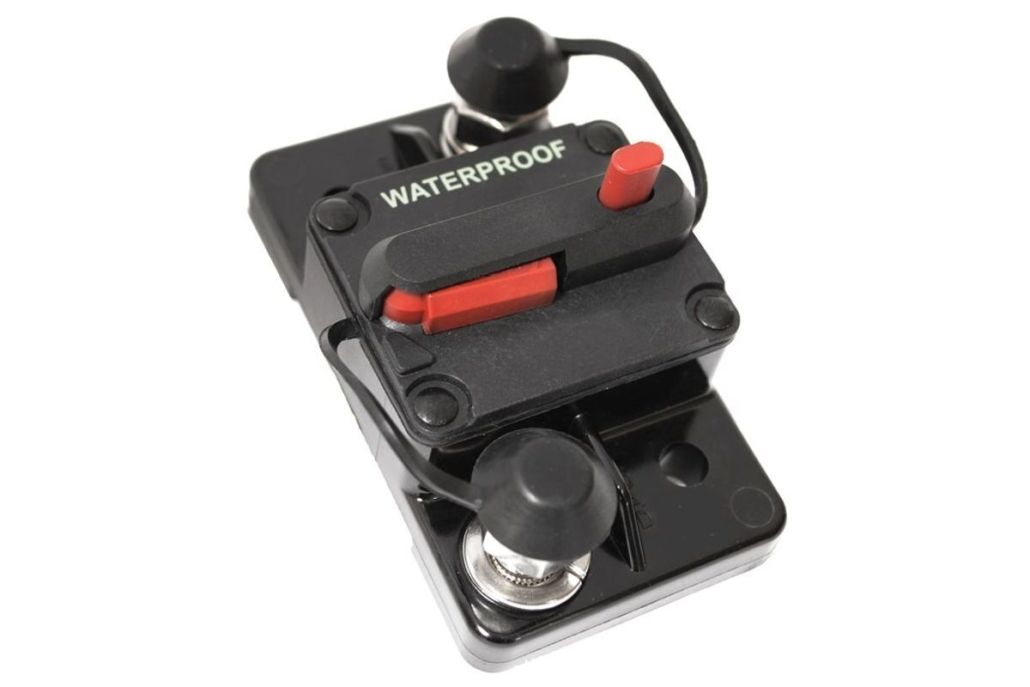

LV Automotive 40A Heavy Duty Waterproof Surface Mount Circuit Breaker

Description

LV Automotive 40A Heavy Duty Waterproof Surface Mount Circuit Breaker.

Applications:

• Buses & Trucks
• Industrial Applications
• Marine & RV

Specifications:

• Housing Material: Thermoset Plastic UL Rated 94V0
• Stud Size: 3/8 inch – 16
• Rating: 30 – 300 Amp/48Vdc
• Interrupt Capacity: 3000A 30Vdc for 30A – 150A C/B’s
• Interrupt Capacity: 1500A 30Vdc for 175A – 300A C/B’s
• Operating Temp: -32C to 92C
• Storage Temp: -34C to 149C
• Ignition Protected: SAE J1171
• Testing: SAE J1625, ABYC-E11, UL1077
• IP Rating: IP67
• Mounting Hole Diameter.: 7mm

Manufacturer Part Number: LV4710
