Description
Nexus Ti6L Transmission Interface Kit – Suits GM 6L series.
This device, in conjunction with a Nexus series 6Lx0 transmission harness (HT-187007), enables a Nexus ECU or VCU to integrate and control a supported GM 6L series automatic transmission. This kit is plug and play with a Rebel LS ECU and terminated harness via the transmission breakout connector.

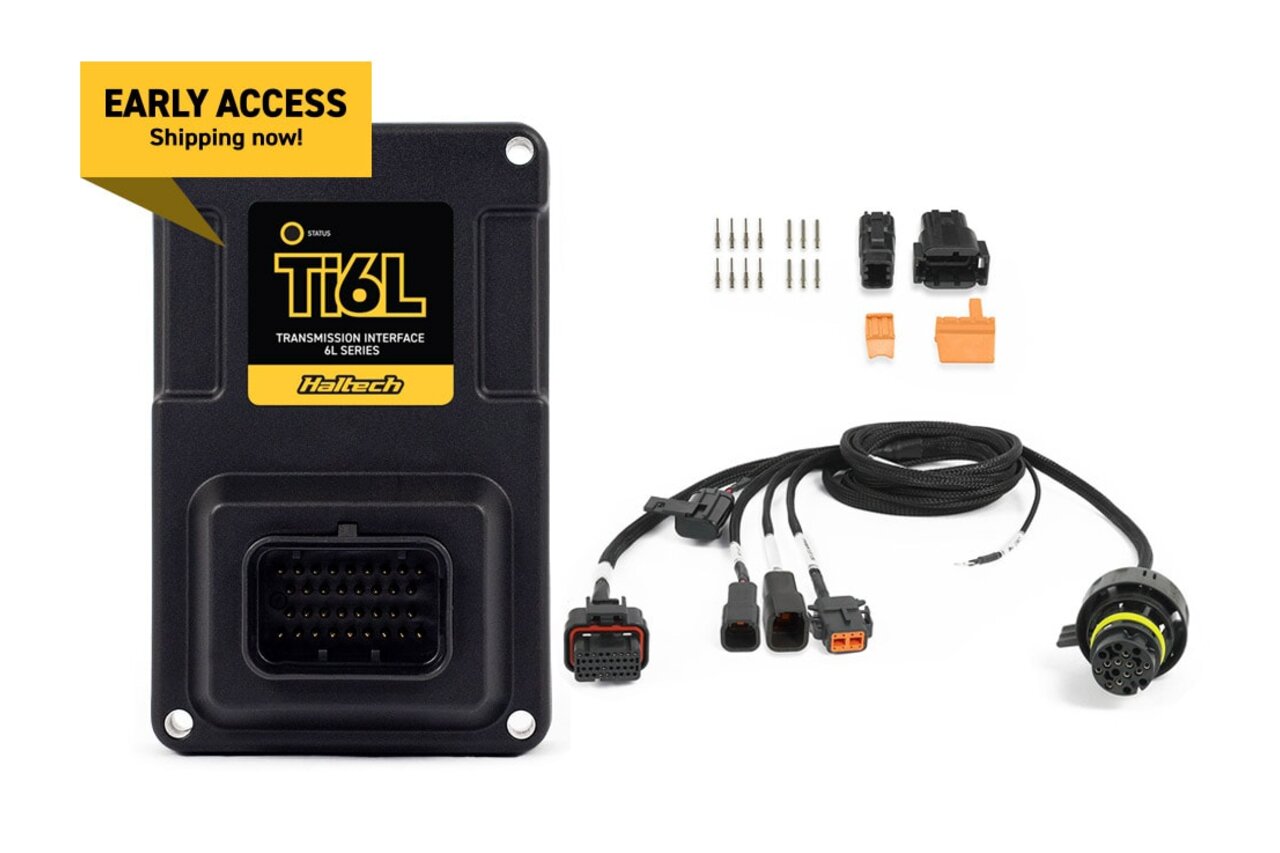

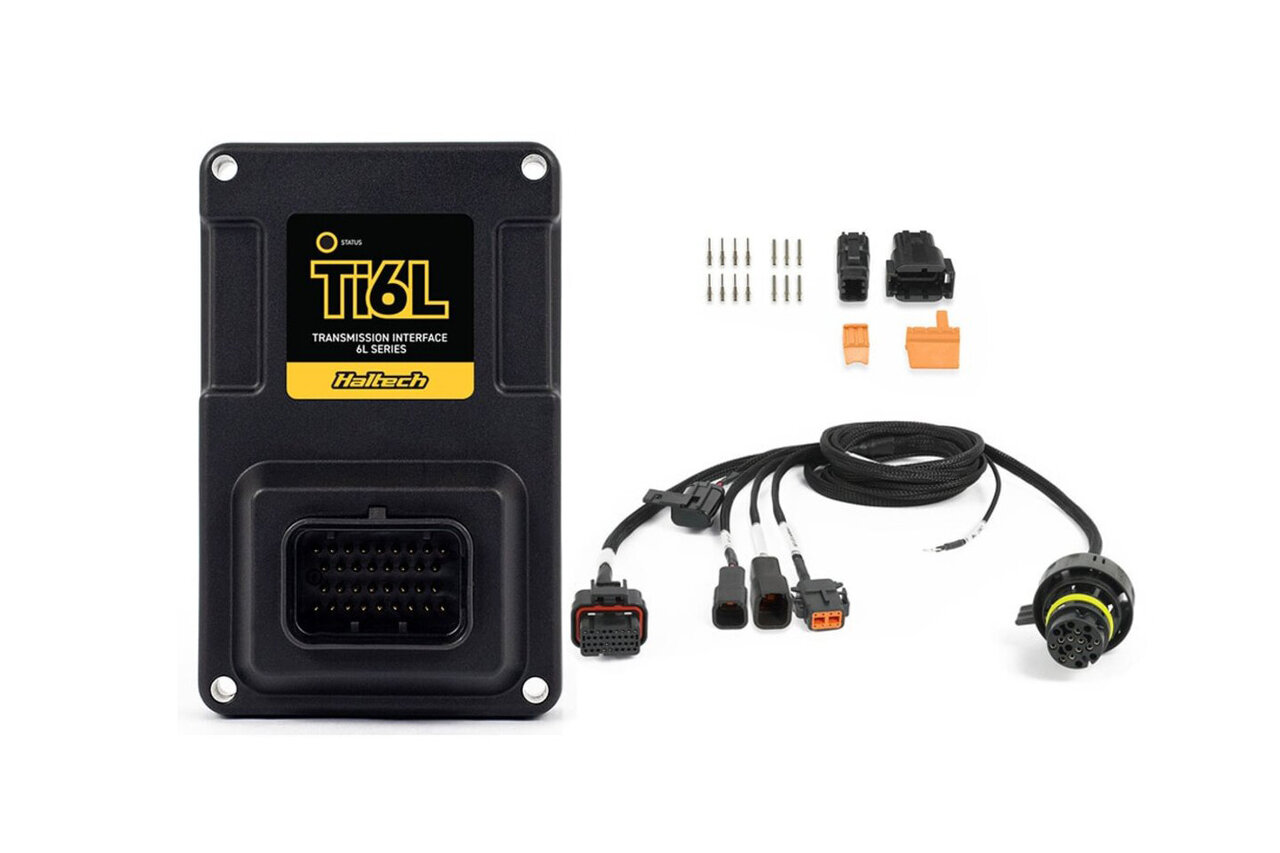

Kit Includes

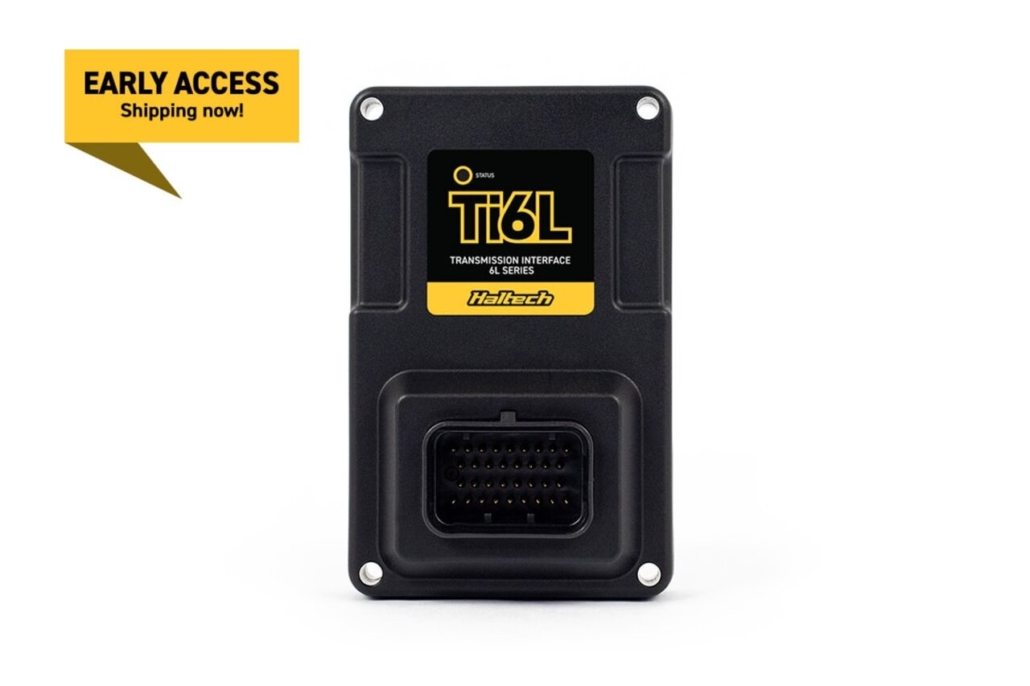

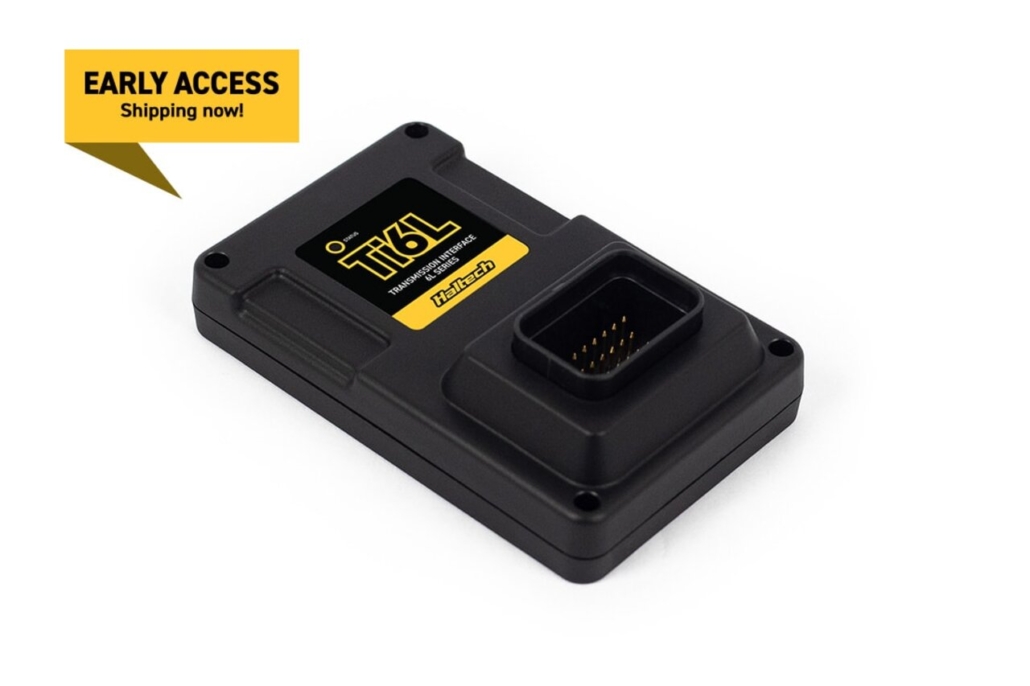

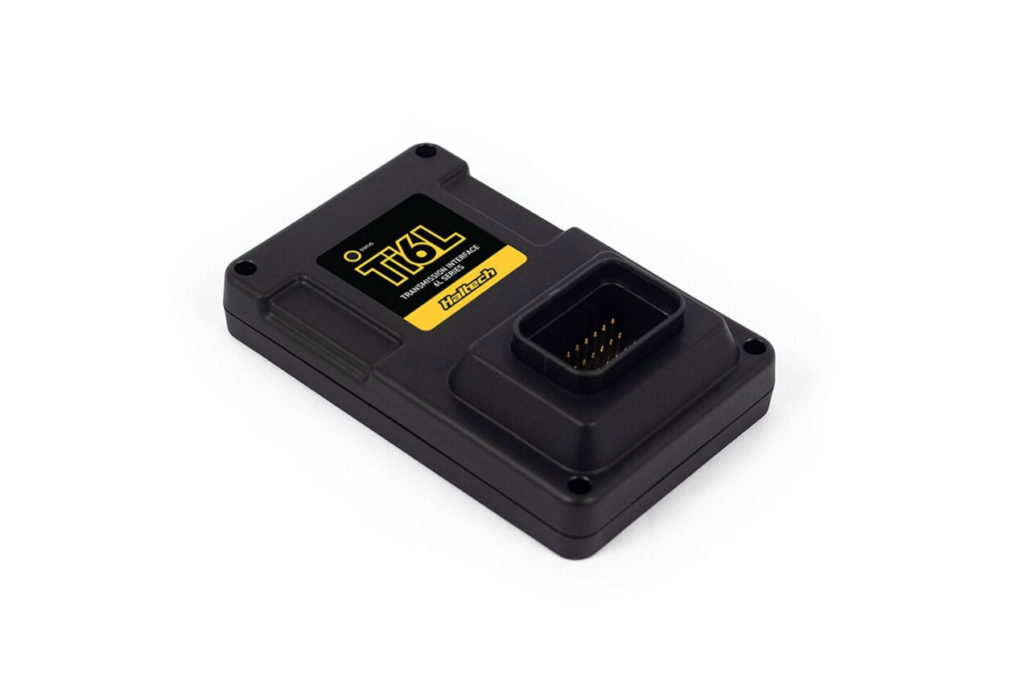

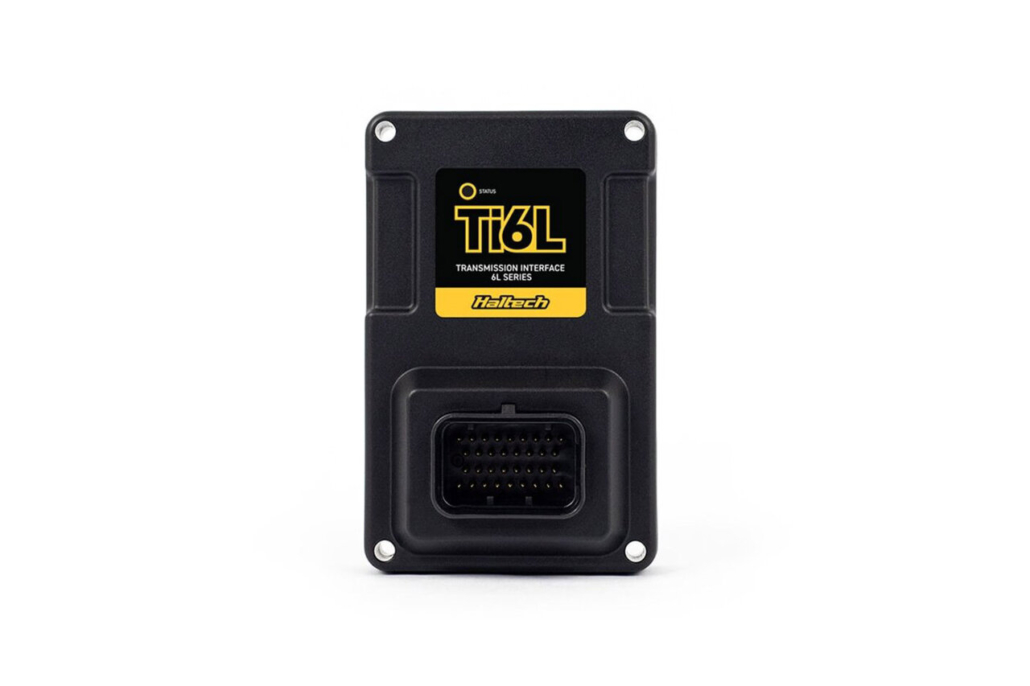

- HT-196002 Nexus Ti6L

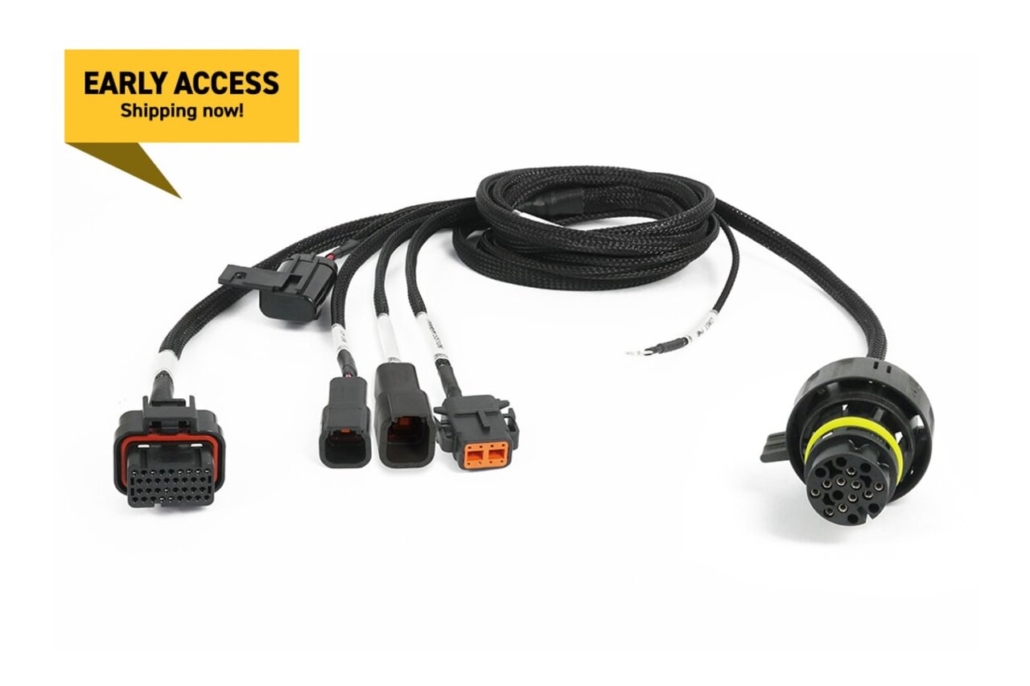

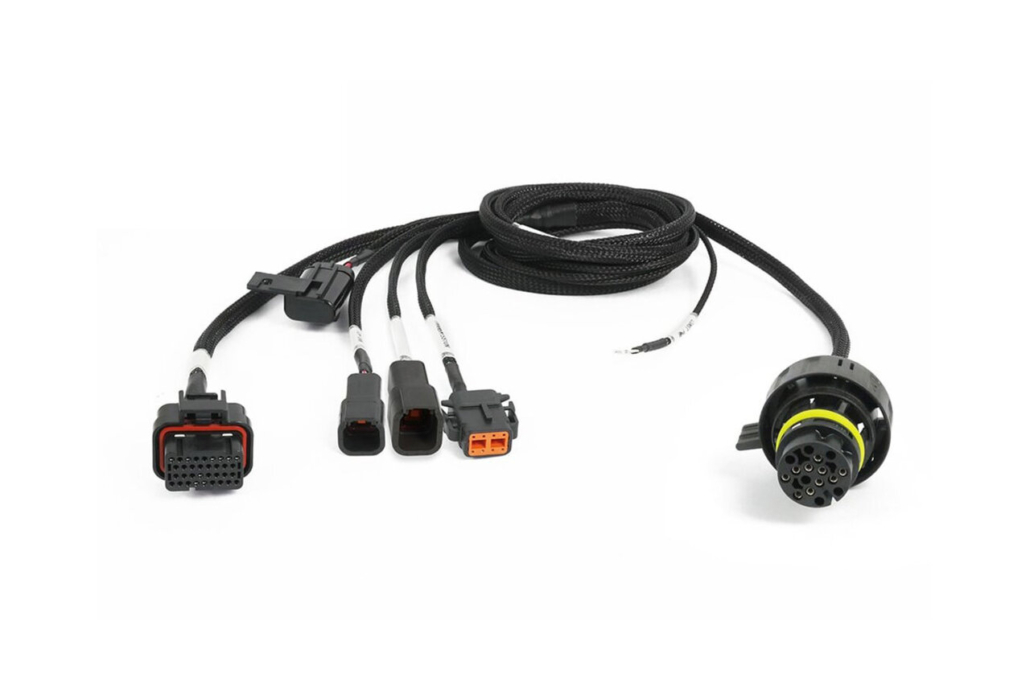

- HT-187007 Nexus Series 6Lx0 Transmission Harness
- Mounting hardware kit
- Opposing connectors
- Quick Start Guide
Features
- Fully terminated transmission harness to suit GM 6Lx0 transmissions
- Plug and Play with a Nexus Rebel LS ECU terminated harness
- Easy Rebel LS Setup Wizard using the Haltech NSP Software or Haltech Connect App
- Convenient TCM OS update support (see Knowledge Base article for more info)
Connector
- 34 pin AMP Superseal Keyway Type 2
Communications:
- CAN 1 (Haltech Protocol)
- CAN 2 (6L TCM Protocol)
Operating voltage:
- 8 – 22V
Ambient temperature
- 105°C / 221°F (max)
IP rating
- IP66
Supports
GM 6L80 / 6L90 Automatic Transmissions running a compatible OS version
Suits Nexus Series ECUs & VCUs including Rebel Does not support Elite / Platinum / Legacy ECUs.
Manufacturer Part Number: HT-196002
