Garrett GTX3582R Gen II 66mm Supercore suit BA BF FG Falcon Territory Turbo SY

Description

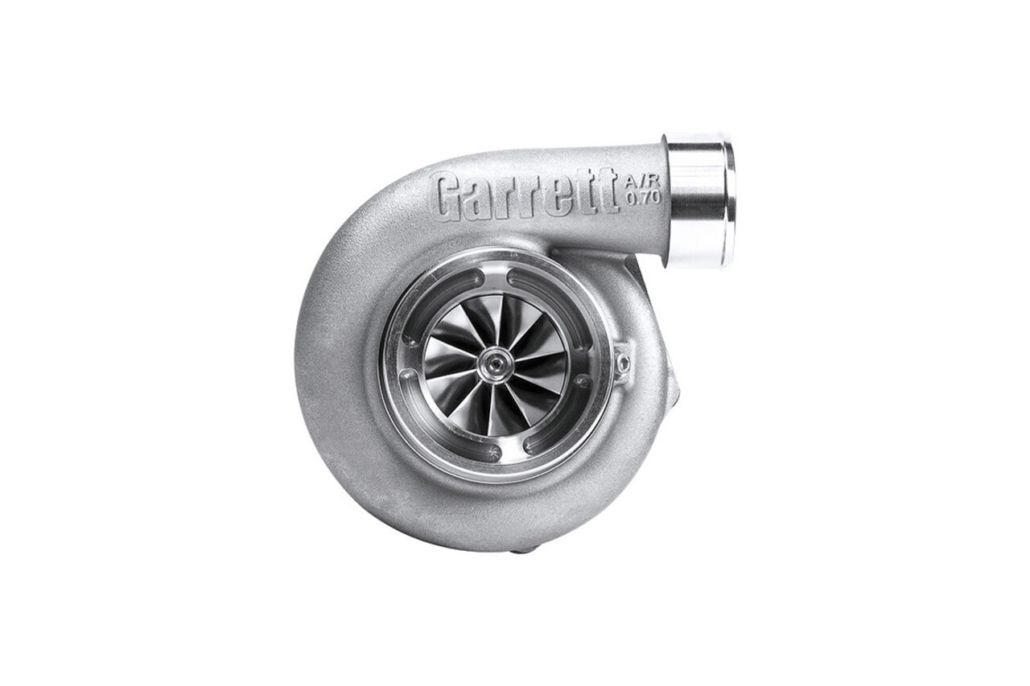

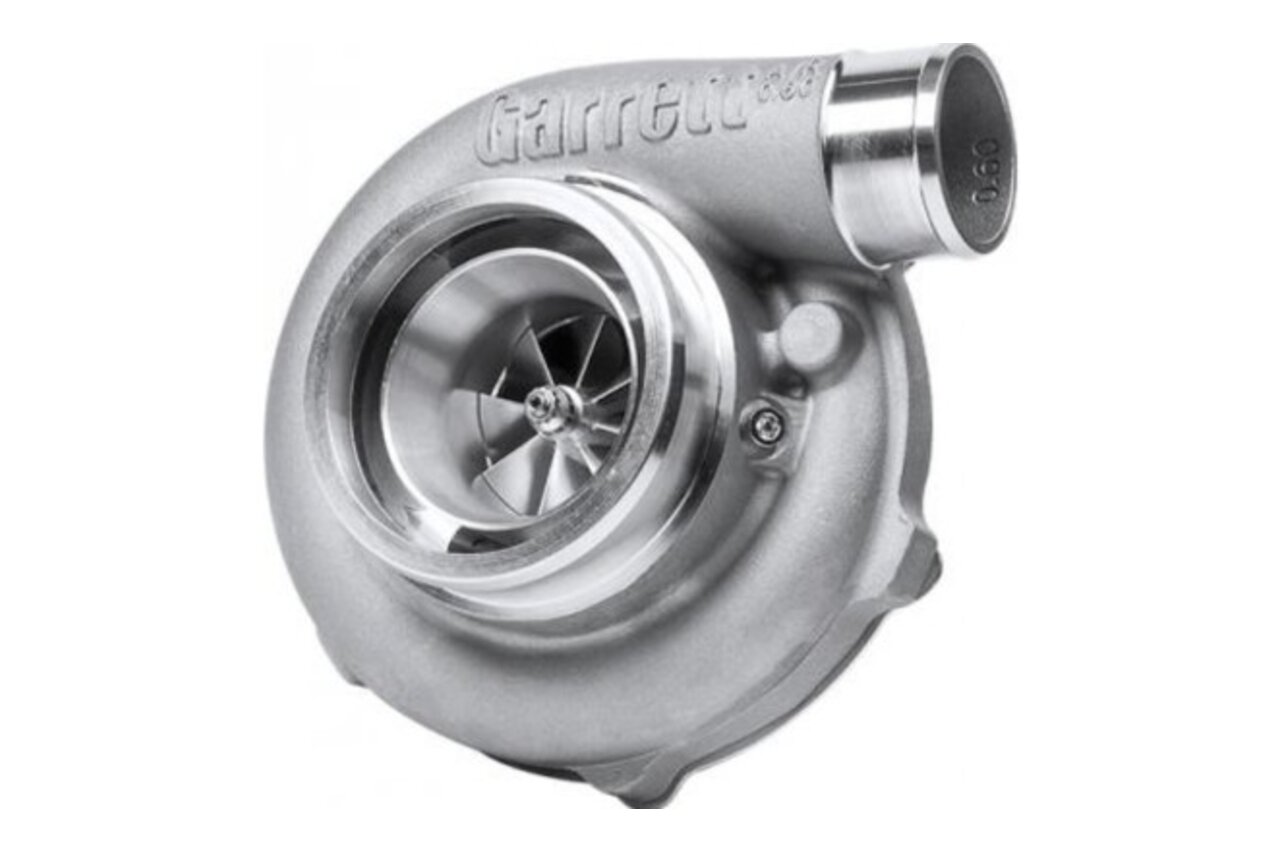

Garrett GTX3582R Gen II 66mm Supercore suit BA BF FG Falcon Territory Turbo SY.

GTX GenII Upgrade Super Core for BA BF FG Falcon. Includes front housing.

The Garrett GTX3582R GEN II turbocharger is the latest generation of the GTX Series, with enhanced compressor aerodynamics, expanded flow capacity, and increased horsepower potential. Garrett Motion designed this turbo for hardcore performance enthusiasts and tuners, with a big 66 mm compressor, two ceramic ball bearings, and a water-cooled centre housing for rapid spool response, increased efficiency, and long term dependability. GEN II aerodynamics increases the power range and airflow, while new entirely machined ports ensure exact fit and performance. This turbocharger, designed for powerful street, track, and competition engines, highlights Garrett’s newest induction technology.

Specifications:

• Part Number: GTX3582R GEN II
• MPN: 849001-5003S
• GEN II aerodynamics for increased horsepower range
• 66 mm turbocharger compressor option
• Ball bearing configuration
• Water-cooled centre housing
• Warranty: 1 year limited warranty from the date of purchase for faults in materials and workmanship
• Does not include rear housing – use stock rear housing or contact us

Vehicles:

• Ford Falcon BA, BF, FG
• Ford Territory Turbo SY

Performance:

• Horsepower range: 450–900 HP
• Engine displacement range: 2.0 L–4.5 L

Turbocharger Specifications:

• Compressor
  • Compressor inducer: 66 mm
  • Compressor exducer: 82 mm
  • Compressor trim: 64
  • Compressor A/R: 0.70
• Turbine
  • Turbine inducer: 68 mm
  • Turbine exducer: 62 mm
  • Turbine trim: 84

Manufacturer Part Number: 851154-5004S
