Flexigauge Plastigauge Blue Pack. 0.004-.009″ or 0.10 -.23mm.
Flexigauge is precision manufactured plastic strip, and can be used to check the clearance of connecting rod and main bearings where there is no access to
traditional measuring equipment such as micrometres. It is available in four sizes, and is suitable for Automotive, Marine and Industrial applications.
The four sizes available together can cover clearances ranging from .001 to .016, or .025mm to .406mm, sizes are as follows:
Reference Clearance Range
AG 1 ( Green Pack ) .001-003in or .025-.076mm
AR 1 ( Red Pack ) .002-006in or .050- .150mm
AB 1 ( Blue Pack ) .004-.009in or .10 -. 23mm
AY 1 ( Yellow pack ) .008 – .016in or .203 – .406mm

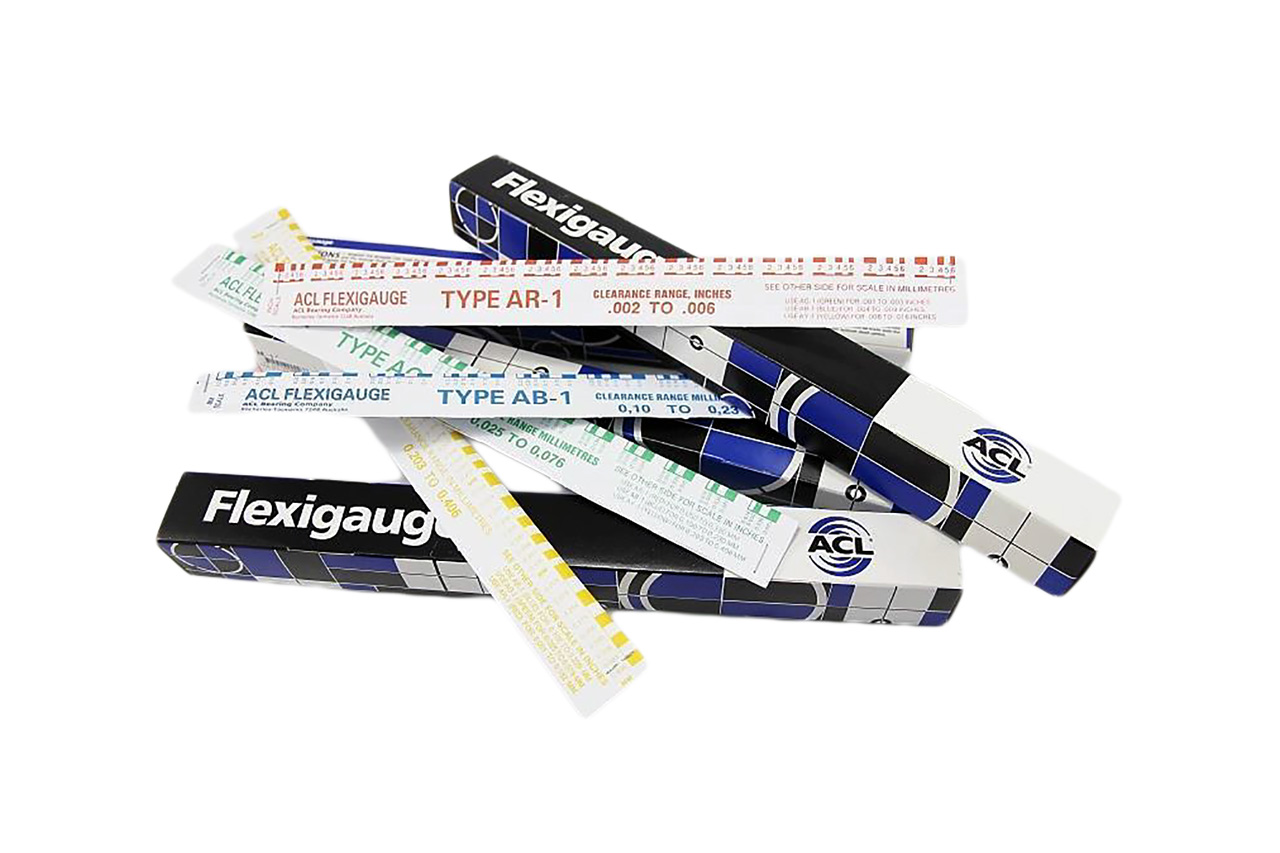

Flexigauge strips are 12 long and packed in individual envelopes, which are marked in appropriate graduations one side in thousandths of an inch and the other in millimetres. Ten strips in their envelopes are packed in their appropriate coloured carton. Directions for use, which are printed on
the outside of each carton for easy reference.
Manufacturer Part Number: AB1
