Crow Cams Valve Spring & Retainer Kit to suit BA BF FG FGX Falcon Barra XR6 Turbo 4L 6 Cylinder & NA.

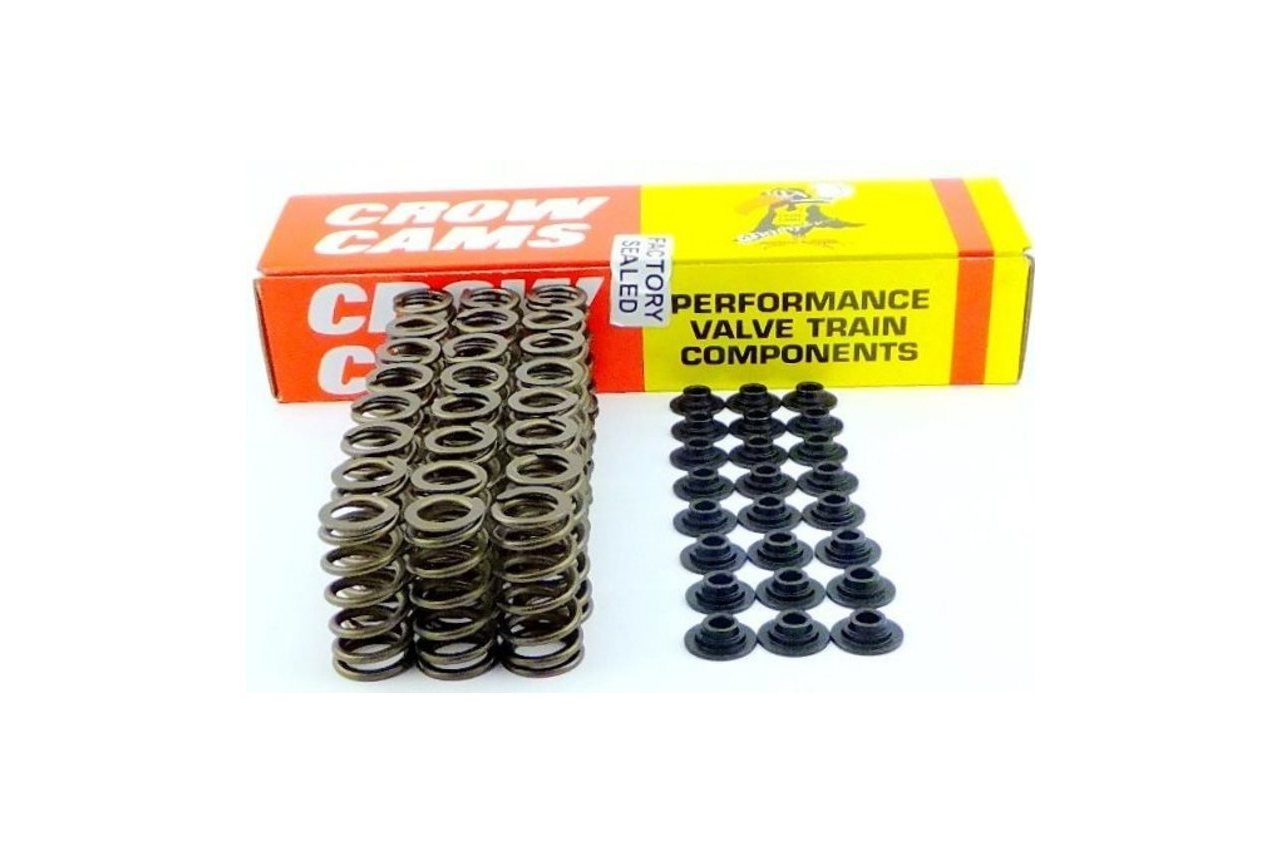

This high performance valve spring and retainer kit is designed to suit all Barra engines with high boost or larger camshafts, and includes heavy duty valve springs (1809-24) and chromoly retainers (10703-24). This is a high performance valve train and will see high power day in day out without issues.
110lb installed pressure, uses standard Ford valve locks. Suitable up to 2.5 bar boost or approx 40psi.
- Installed Height: 1.520″
- Installed Pressure: 110lb
- Pressure @ 0.050: 210lb
- Max Lift: 0.600″
- Solid Height: 0.900″
- Spring: 1809-24 (included)
- Spring Retainer: 10703 (included)
- Valve Locks: Standard
For the cheaper low boost set, see here.
Crow Cams part number: VTKBA6T-24
