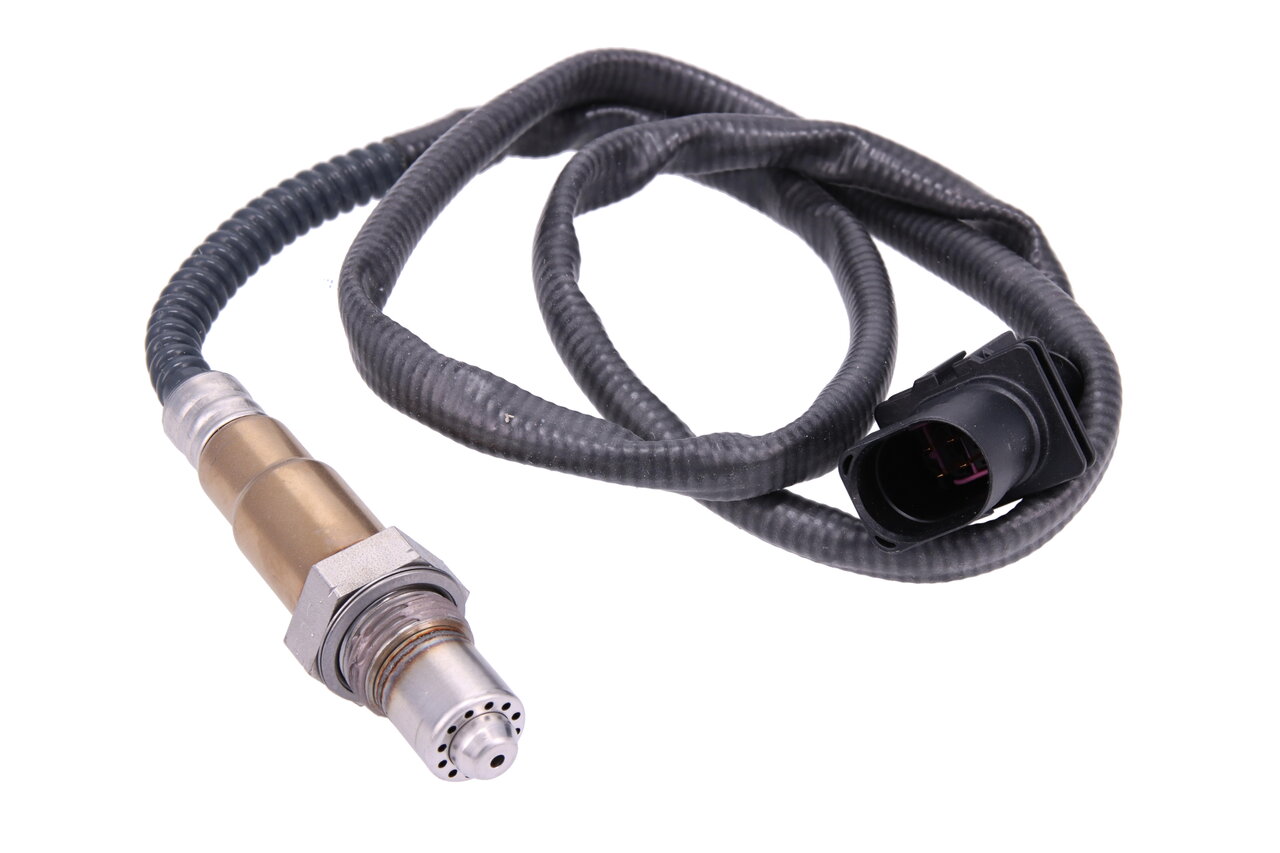

Bosch Exhaust Oxygen O2 LSU ADV Sensor

Description

Bosch Exhaust Oxygen O2 LSU ADV Sensor.

A finely tuned engine demands the most precise measuring equipment, and you can rely on T.I. Performance Sensors to provide the accurate data your ECU needs. Our range is built on premium original equipment brands like Bosch, Delco, VDO, Delphi and TI, ensuring consistent performance in all conditions, whatever your application. Datasheets available.

The Bosch LSU ADV is arguably the successor to the popular Bosch LSU 4.9 and brings many minor upgrades such as; ~15% increase in Lambda accuracy, slightly higher maximum temperature tolerance, more optimized vents for better exhaust flow into and out of the sensor, smaller heater and lower thermal mass. The biggest upgrade that the ADV sensor brings is that it does not require a calibration resistor for ~0.01 Lambda accuracy because the sensor is made precisely.

Specifications:

• Application lambda 0.65 to ∞
• Fuel compatibility gasoline/Diesel/E85
• Thread M18x1.5
• Exhaust gas pressure ≤ 2.5 bar (higher with decrease accuracy)
• Exhaust gas temperature (operating) ≤ 930°C
• Max. exhaust gas temperature for short time ≤ 1,030°C
• Hexagon temperature (operating) ≤ 650°C
• Max. hexagon temperature for short time ≤ 700°C
• Max. temperature difference between hexagon and weldingseam ≤ 330
• Wire and protective sleeve temperature ≤ 250°C
• Connector temperature ≤ 140°C
• Storage temperature range -40 to 100°C
• Max. vibration (stochastic peak level) 300 m/s2

Bosch Part Number: LS 27162 / 0 258 027 062 / 0 258 027 159 / 0 258 027 074
