Bosch 220 lph Ultra Compact Fuel Pump F000TE13X9 E85 Safe

Description

Bosch 220 lph Ultra Compact Fuel Pump F000TE13X9 E85 Safe.

New release high pressure ultra compact fuel pump from Bosch. These tiny little pumps measure 94mm long and 32mm round, but are capable of up to 195 lph at 4.5 bar at a low 11A. This pump is ideal in any compact fuel tank for high pressure turbo/supercharged applications.

Constantly evolving technologies and state-of-the-art manufacturing over the past 35 years allow Bosch to supply fuel pumps with tight tolerances and compact design, making way for the latest advancement — turbine pump technology. This revolutionary technology replaces older pump designs, providing improved drivability and reduced hot-start problems.

Specifications:

• Dimensions: 94mm length, 32mm diameter
• Maximum Pressure: 5 bar / 72.5 psi
• Fuel Type: Gasoline / E100 Rated
• Bosch Code: F 000 TE1 3X9 FP2

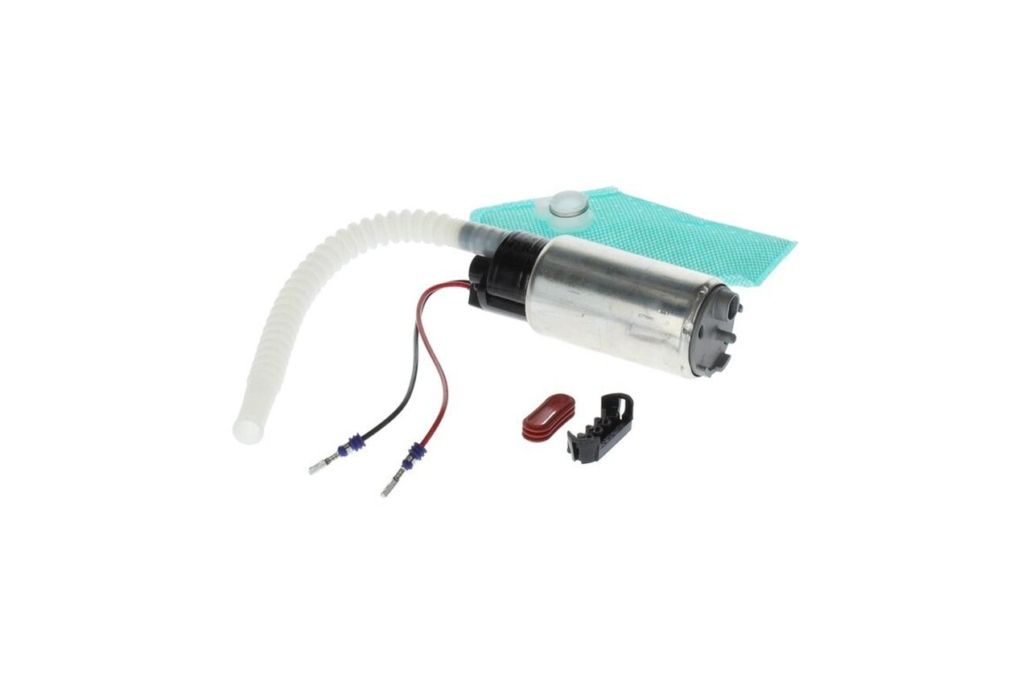

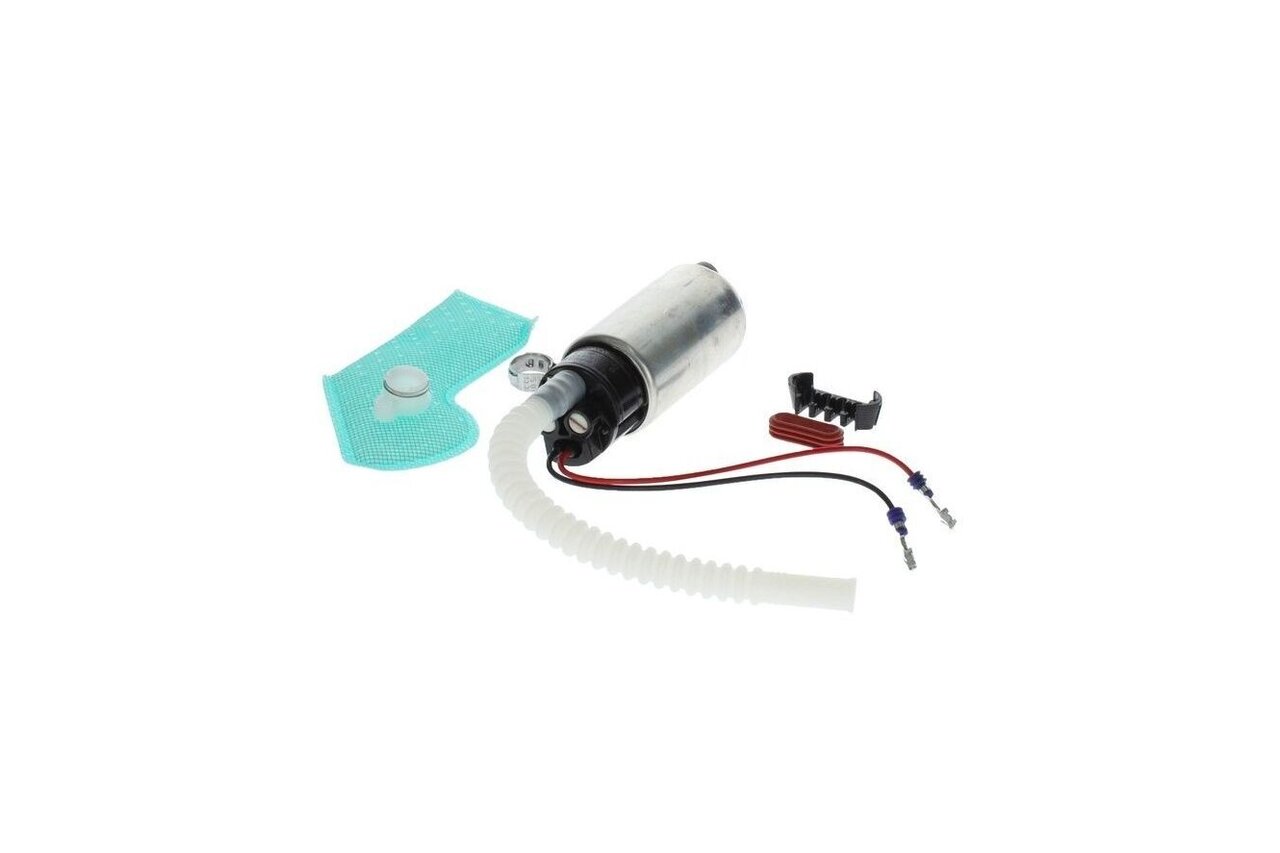

• Kit Includes: Fuel Pump, Tube, Pre-Filter Strainer and Wire Harness

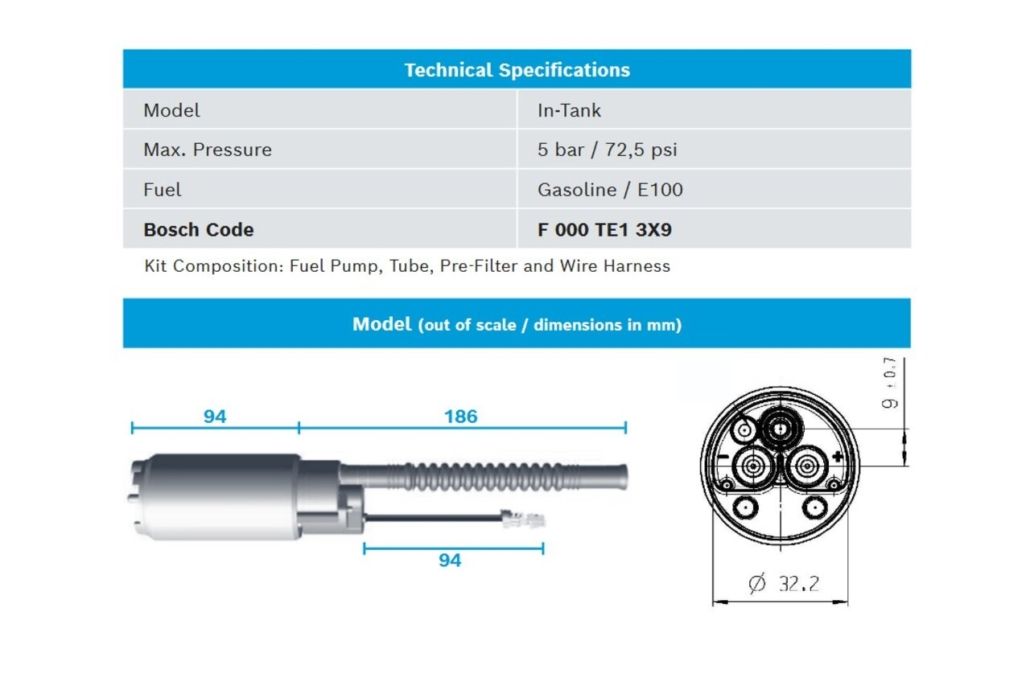

• See full pressure vs flow chart here

Manufacturer Part Number: F000TE13X9
