Description

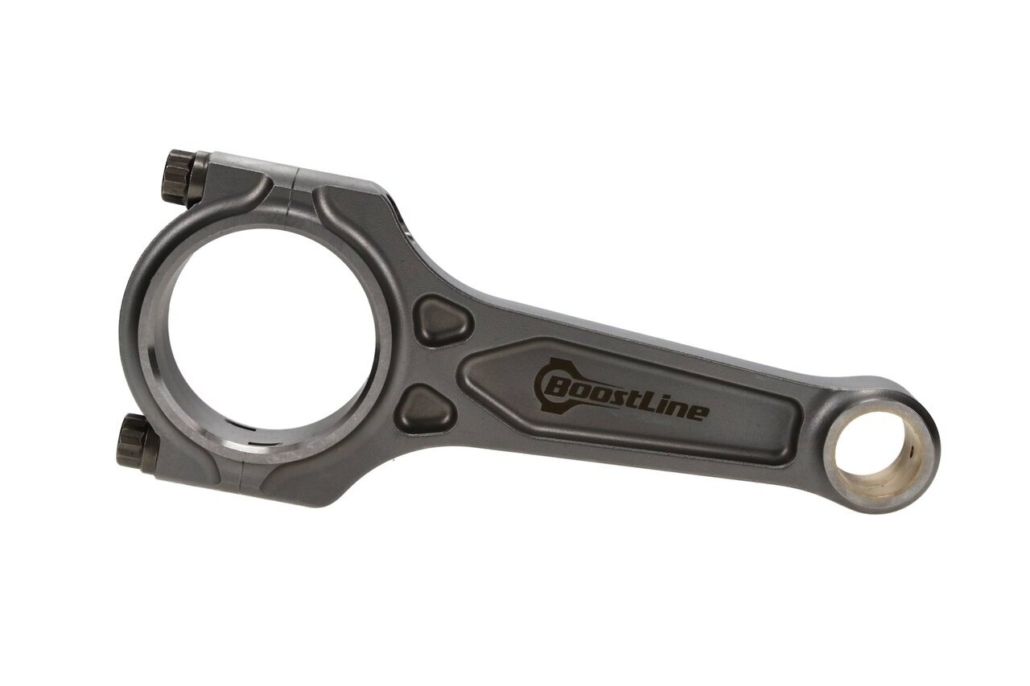

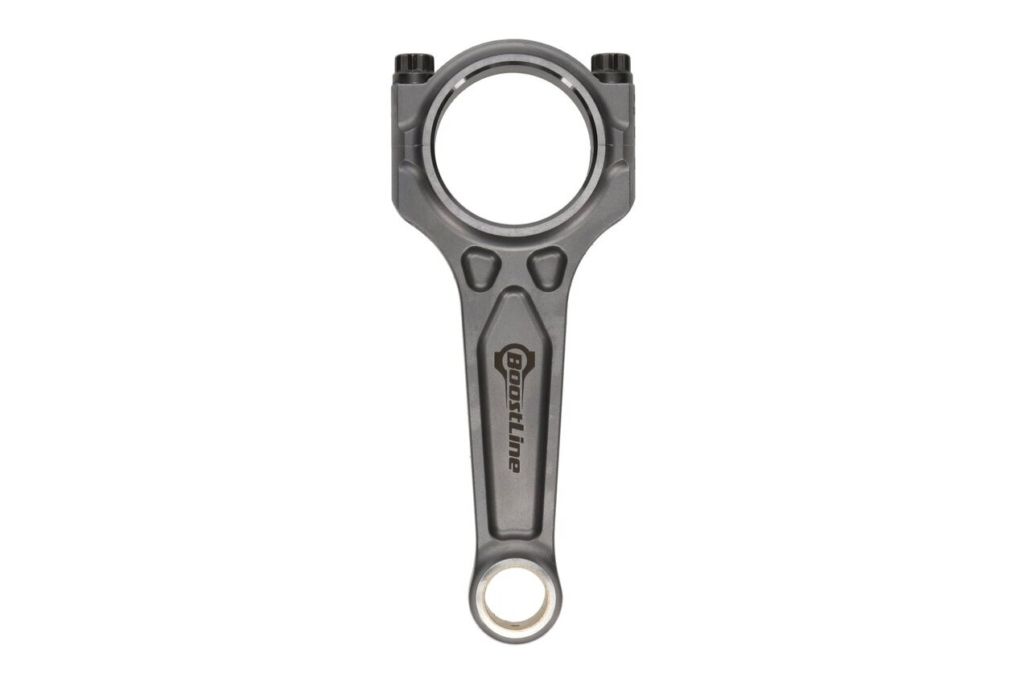

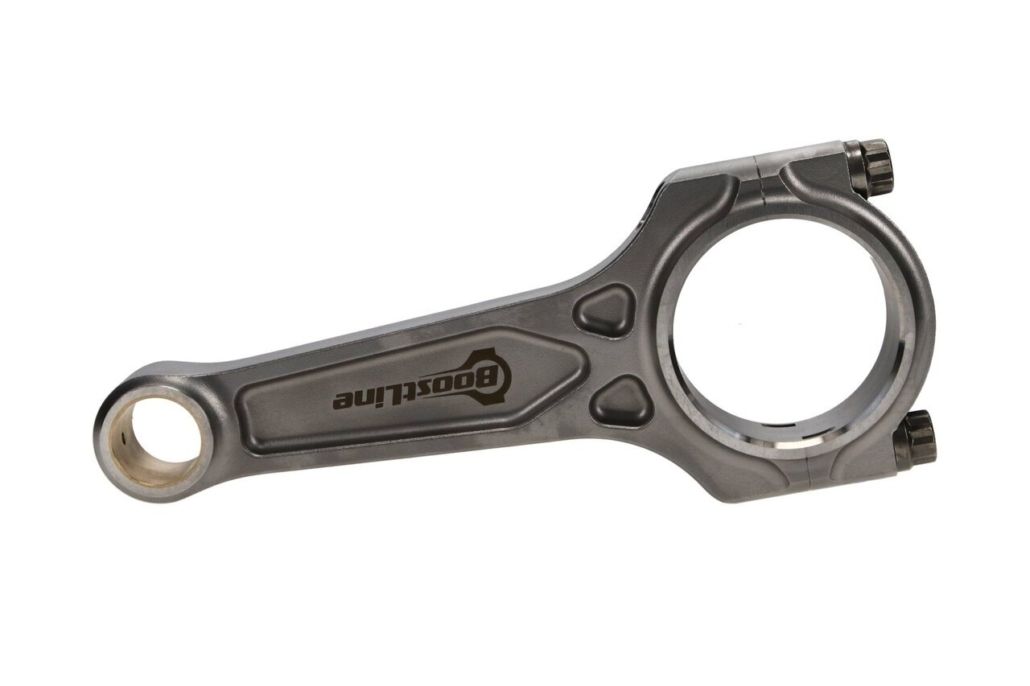

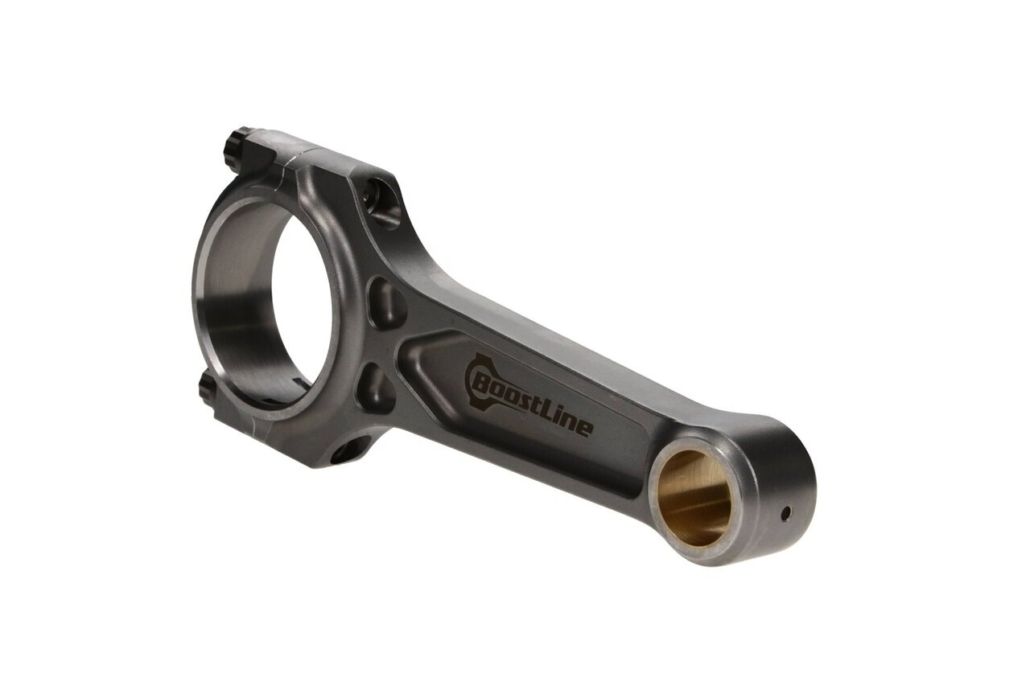

Boostline Ford Focus RS 5.63″ Connecting Rods.

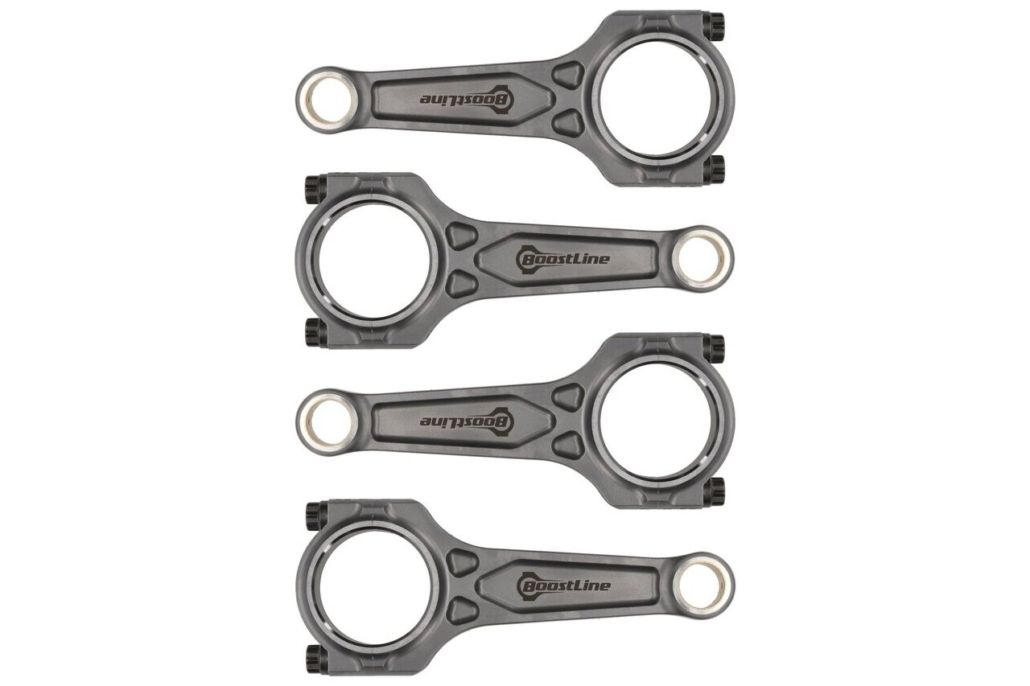

Boostline Ford Focus RS Connecting Rod Set, 5.63 in. Length, 23 mm Pin, 49.99 mm Journal, 3/8 in. ARP 2000 Bolts, 4340 Steel, Patented Three-Pocket Design, Set of 5.
BoostLine connecting rods are designed from the ground up for high-power forced induction and nitrous applications. A patented, 3-pocket design, forged from premium 4340 steel, maximises strength while minimising rotating weight. This revolutionary design dramatically improves the rod’s big-end stability under tensile loads and provides a 60% improvement in bending strength and 20% stress reduction in tension compared to H-beam designs. All of these benefits make BoostLine rods ideal for high-cylinder pressure engine combinations.
Purpose-Built For Boost High Boost and Ford Focus RS Applications
Forged From Ultra-Strong 4340 Steel
Patented Three-Pocket Design
Capable of 1000 HP
3/8 x 1.600 in. ARP 2000 Fasteners
High Quality APMCO Bronze Pin Bushing
26 Point Detailed CMM Inspection Report Included
BoostLine connecting rods are purpose-built for turbo, supercharged and nitrous-fed engines, with their unique 3 pocket design offering up to 60% more strength than typical H-beam rods. They’re finish-machined in the USA, and precision-checked to aerospace standards.
Specifications:
- Rod Type: I-Beam
- Material: Forged 4340 Steel
- Center To Center Length: 5.630 IN
- Pin End Bore: 23.00 MM
- Pin End Width: 21.95 MM
- Wrist Pin Journal Bushing Width:
- Journal Size: 49.99 MM
- Main Bearing Bore Diameter: 53.000 MM
- Average Gram Weight:
- Big End Width: 23.65 MM
- Bolt Part Number: BT61601-S
- Bolt Diameter: 3/8 IN
Manufacturer Part Number: BL-FD5630-905
