Description

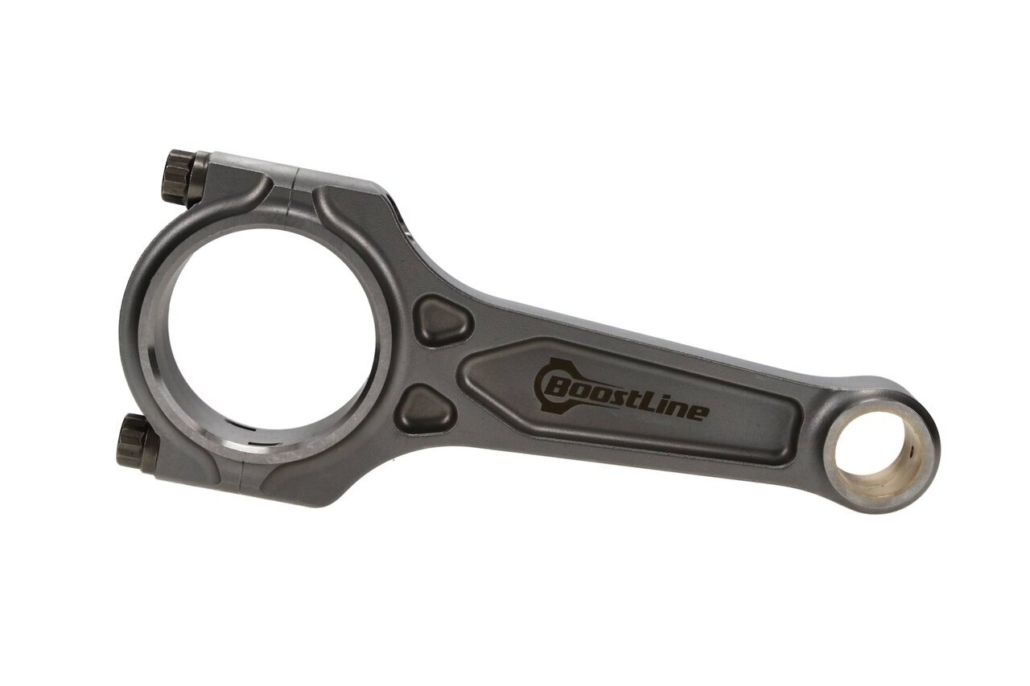

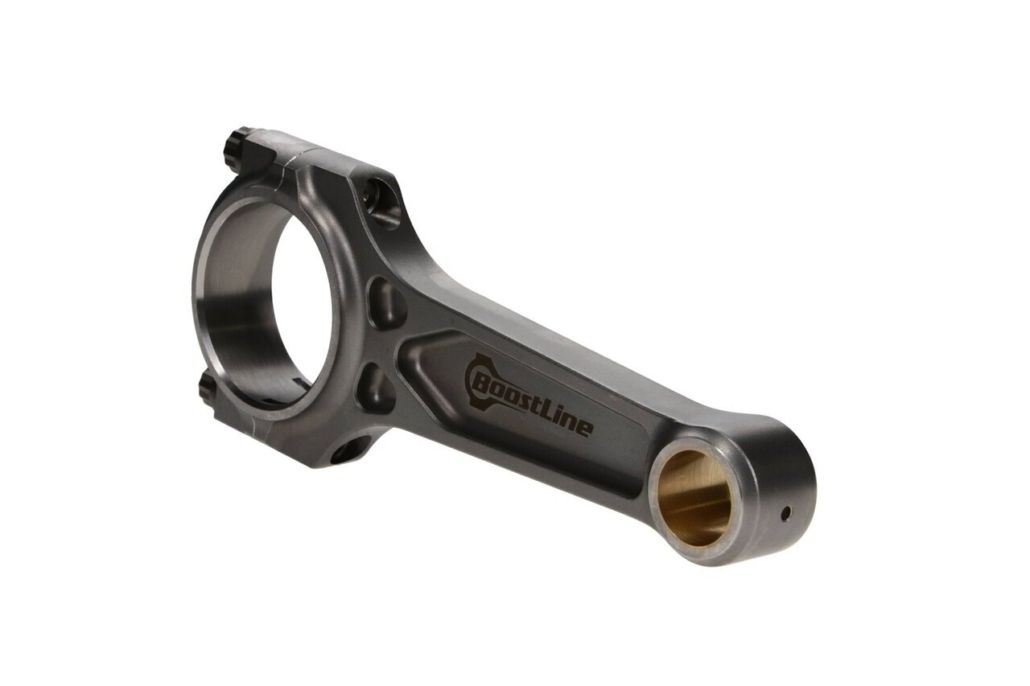

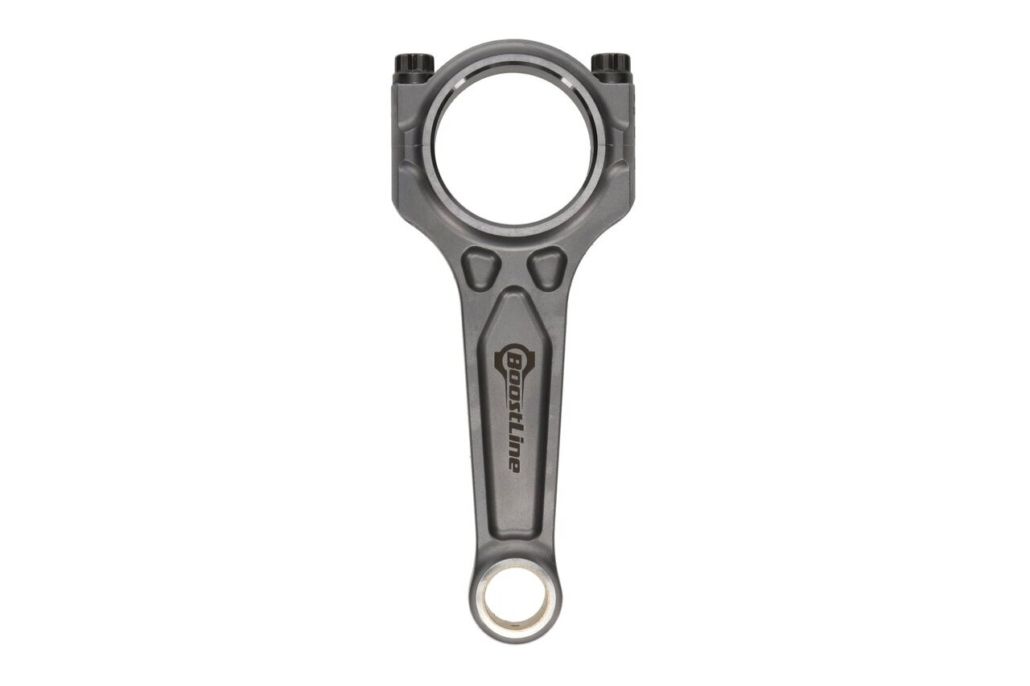

Boostline Chevrolet Small Block 6.000″ Connecting Rods.
Boostline Chevrolet Small Block Connecting Rod Set, 6.000 in. Length, 0.927 in. Pin, 2.100 in. Journal, 7/16 in. ARP 2000 Bolts, 4340 Steel, Patented Three-Pocket Design, Set of 8.
BoostLine connecting rods are designed from the ground up for high-power forced induction and nitrous applications. A patented, 3-pocket design, forged from premium 4340 steel, maximises strength while minimising rotating weight. This revolutionary design dramatically improves the rod’s big-end stability under tensile loads and provides a 60% improvement in bending strength and 20% stress reduction in tension compared to H-beam designs. All of these benefits make BoostLine rods ideal for high-cylinder pressure engine combinations.
Purpose-Built For Boost High Boost and Nitrous Small Block Chevy Applications
Forged From Ultra-Strong 4340 Steel
Patented Three-Pocket Design
Capable of 2000 HP
Stroker Clearance
7/16 x 1.400 in. ARP 2000 Fasteners
High Quality APMCO Bronze Pin Bushing
26 Point Detailed CMM Inspection Report Included
BoostLine connecting rods are purpose-built for turbo, supercharged and nitrous-fed engines, with their unique 3 pocket design offering up to 60% more strength than typical H-beam rods. They’re finish-machined in the USA, and precision-checked to aerospace standards.
Specifications:
- Rod Type: I-Beam
- Material: Forged 4340 Steel
- Center To Center Length: 6.000 IN
- Pin End Bore: 0.927 IN
- Pin End Width:
- Wrist Pin Journal Bushing Width: 1.010 IN
- Journal Size: 2.100 IN
- Main Bearing Bore Diameter: 2.225 IN
- Average Gram Weight: 686 GR
- Big End Width: 0.940 IN
- Bolt Part Number: BT71401-2S
- Bolt Diameter: 7/16 IN
Manufacturer Part Number: BL-SC6000-927
