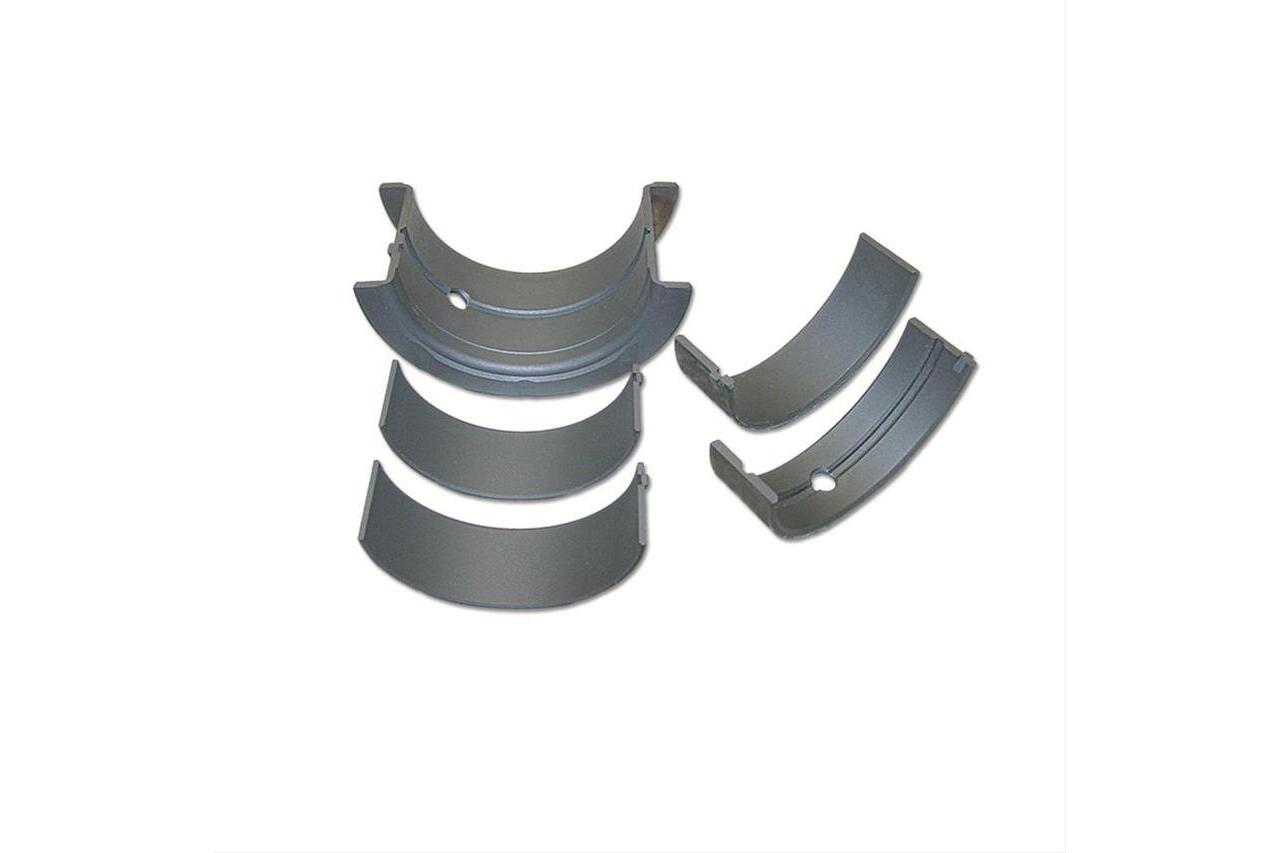

ACL Race Series Main Bearings Calico Coated suit XW-XE Falcon 302c 351c Cleveland V8

Description

ACL Race Series Main Bearings Calico Coated suit XW-XE Falcon 302c 351c Cleveland V8. Available in STD, 001, 010 sizes. We ship STD unless specified at checkout.

Founded in Tasmania, Australia in 1922, ACL is a globally recognised manufacturer specialising in high-performance engine bearings and components. Known for precision and durability, ACL Bearings are widely used in motorsports and high-performance applications, especially within engines that require reliable support under intense loads. View the full catalogue here

Specifications:

• Calico Coated
• Material: Race Series (Tri-Metal)
• Position: 1,2,4,5
• Std Shaft Diam: 2.7484″/2.7492″ (69.809mm/69.830mm)
• Maximum Wall: 0.0962″ (2.443mm)
• Housing Bore: 2.9417″/2.9425″ (74.719mm/74.740mm)
• Max Length: 0.8800″ (22.350mm)
• Position: 3
• Std Shaft Diam: 2.7484″/2.7492″ (69.809mm/69.830mm)
• Maximum Wall: 0.0962″ (2.443mm)
• Housing Bore: 2.9417″/2.9425″ (74.719mm/74.740mm)
• Max Length: 1.1180″ (28.400mm)

Suits the following engines:

• Ford 302 Cleveland 4944cc V8 OHV 16V Carb Lead
• Ford 351 Cleveland 5768cc V8 OHV 16V Carb Lead

Manufacturer Part Number: 5M1010HC-STD
