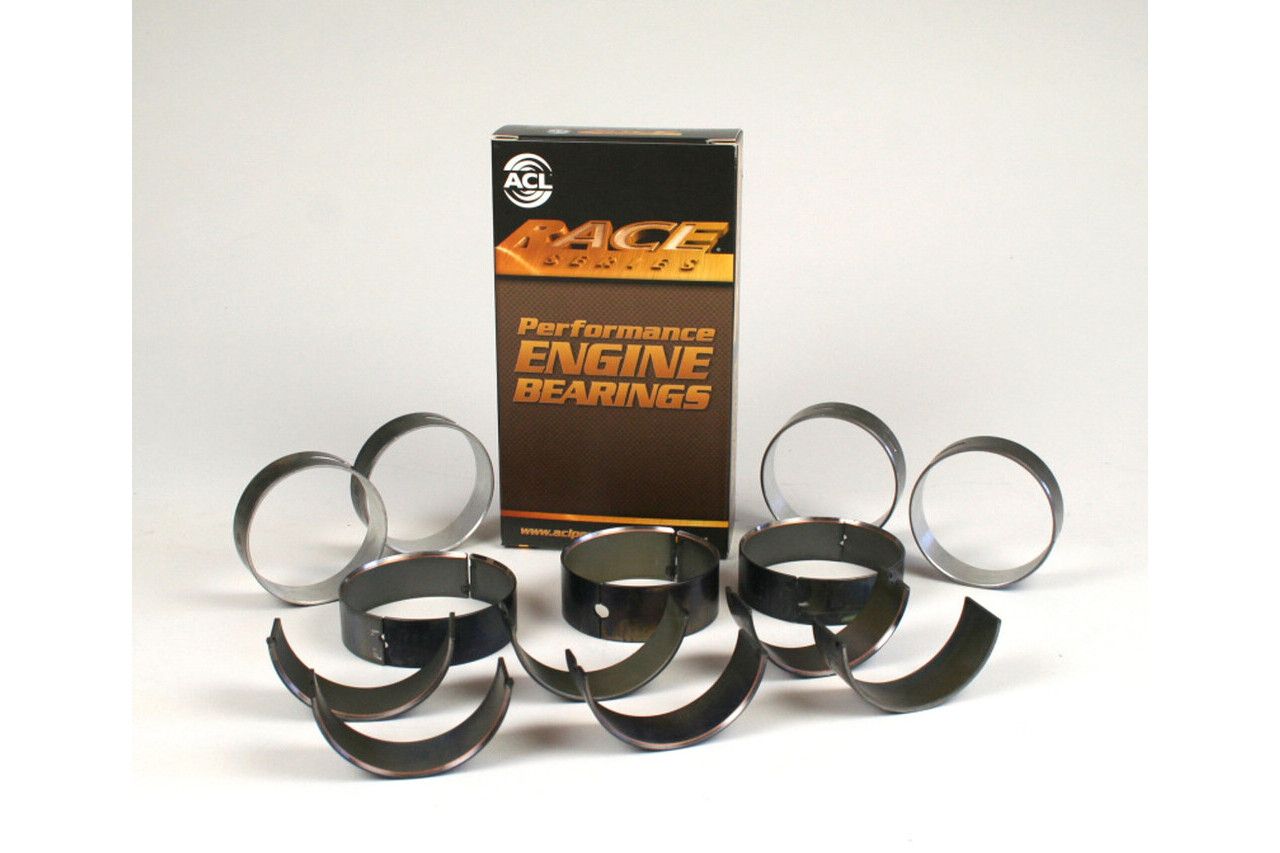

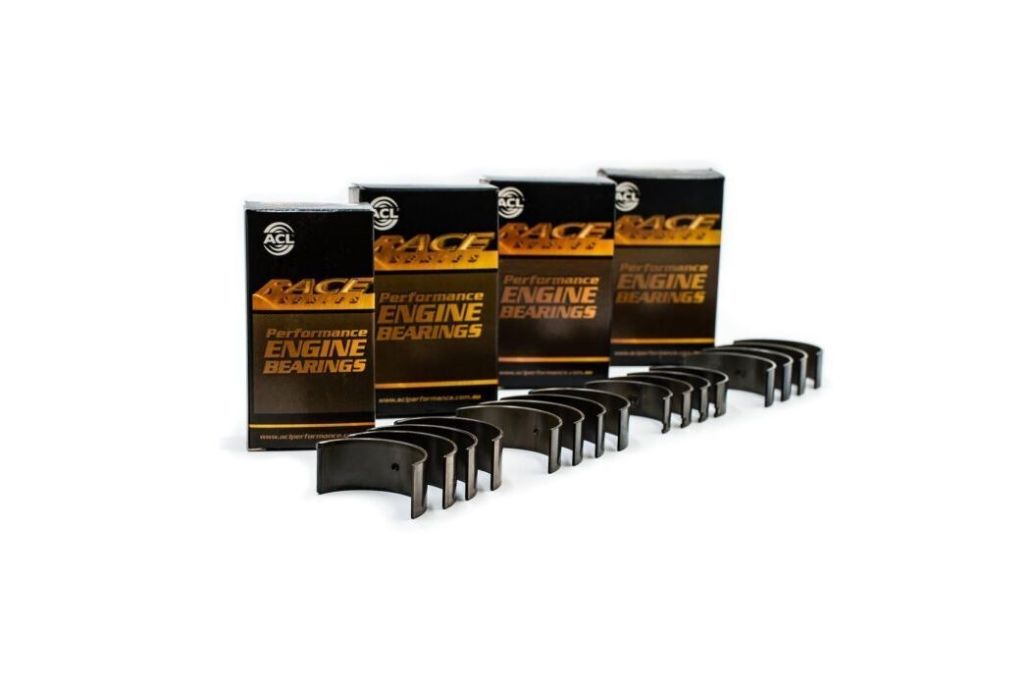

ACL Race Series Conrod Big End Bearings suit XW-XE Falcon 302c 351c Cleveland, 400 FE V8

Description

ACL Race Series Conrod Big End Bearings suit XW-XE Falcon 302c 351c Cleveland, 400 FE V8. Available in STD, 001, 010, 020 sizes. We ship STD unless specified at checkout.

Founded in Tasmania, Australia in 1922, ACL is a globally recognised manufacturer specialising in high-performance engine bearings and components. Known for precision and durability, ACL Bearings are widely used in motorsports and high-performance applications, especially within engines that require reliable support under intense loads. View the full catalogue here

Specifications:

• Material: Race Series (Tri-Metal)
• Position: All
• Std Shaft Diam: 2.3103″/2.3111″ (58.682mm/58.702mm)
• Maximum Wall: 0.0624″ (1.585mm)
• Housing Bore: 2.4361″/2.4369″ (61.877mm/61.897mm)
• Max Length: 0.7160″ (18.180mm)

Suits the following engines:

• Ford 302 Cleveland 4944cc V8 OHV 16V Carb Lead
• Ford 351 Cleveland 5768cc V8 OHV 16V Carb Lead
• Ford 400 6592cc V8 OHV 16V Carb Lead

Manufacturer Part Number: 8B927H-STD
