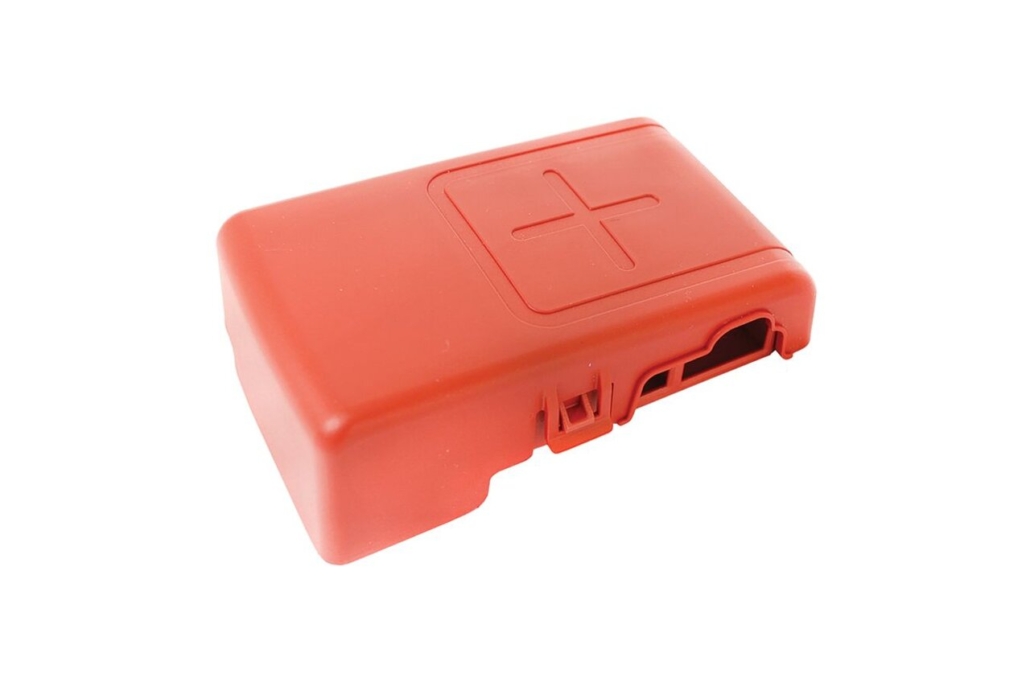

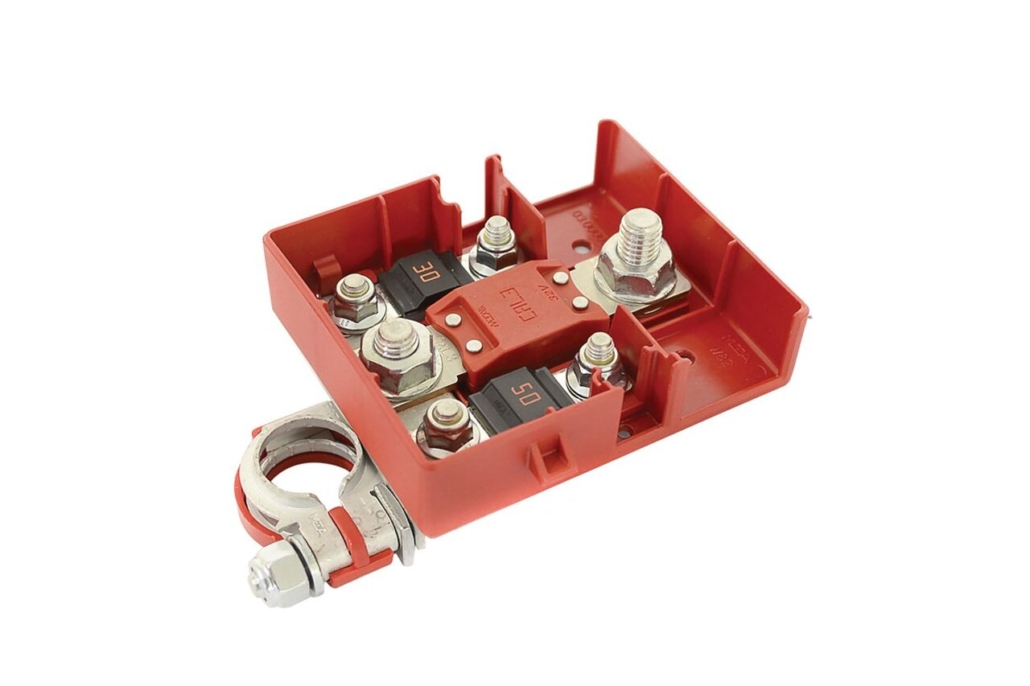

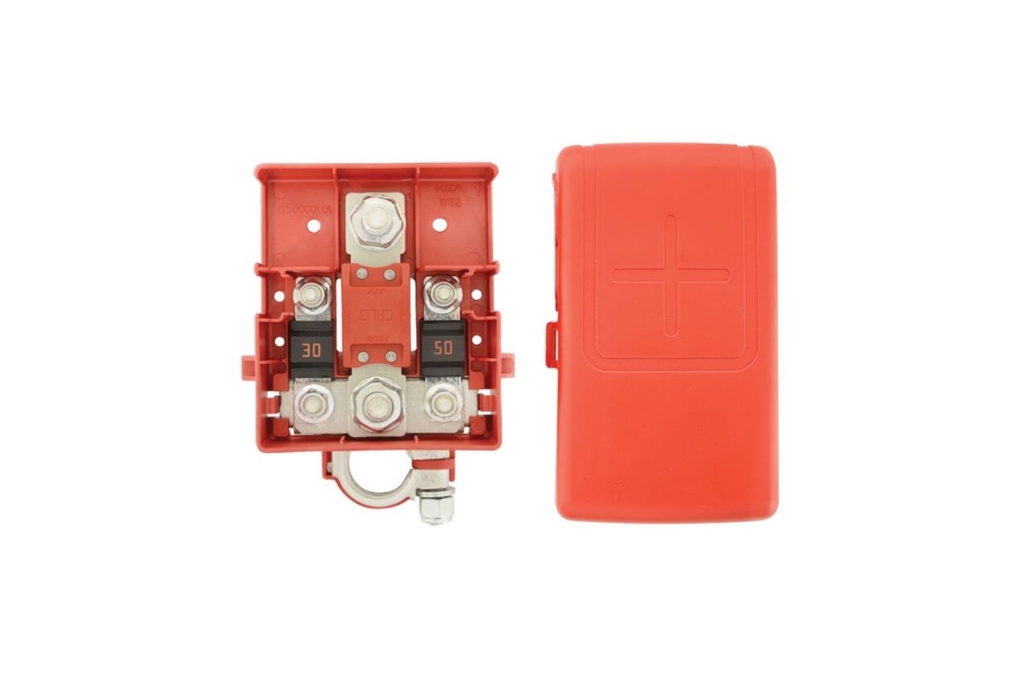

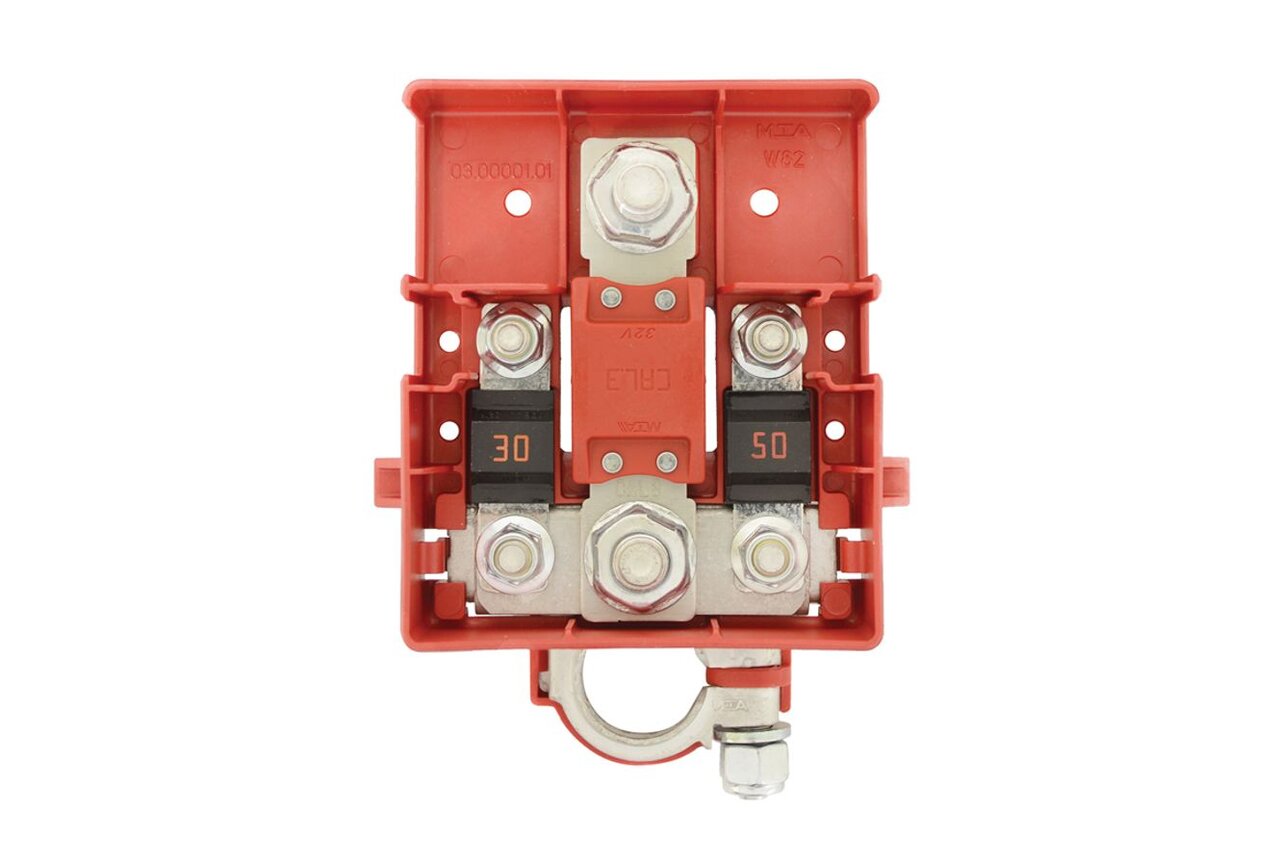

3 Way Fused Battery Distribution Terminal (like BT950-P1)

Description

3 Way Fused Battery Distribution Terminal.

3 way distribution battery terminal block with 1x Mega Fuse and 2x midi fuses. Ideal for use in camping, 4×4, caravan and automotive applications where you want to keep the layout neat and tidy by hiding the fuse in the terminal. Fuses available in other items.

Similar to Projecta BT950-P1.

Specifications:

• Voltage: up to 58V
• Current: 750A max.
• Stud terminal: 2 x M8 & 4 x M5
• Housing material: PA66
• Busbar material: Zinc plated steel
• Stud material: Zinc plated steel
• Fuses to suit: 2 x midi & 1 x mega
• Ideal for dual battery systems
• Operating temperature: -40°C to 125°C
• Applications: 4WD; motorhomes

Also Known As: LV5480, Projecta BT950-P1, MAF3P, AF49-4058
