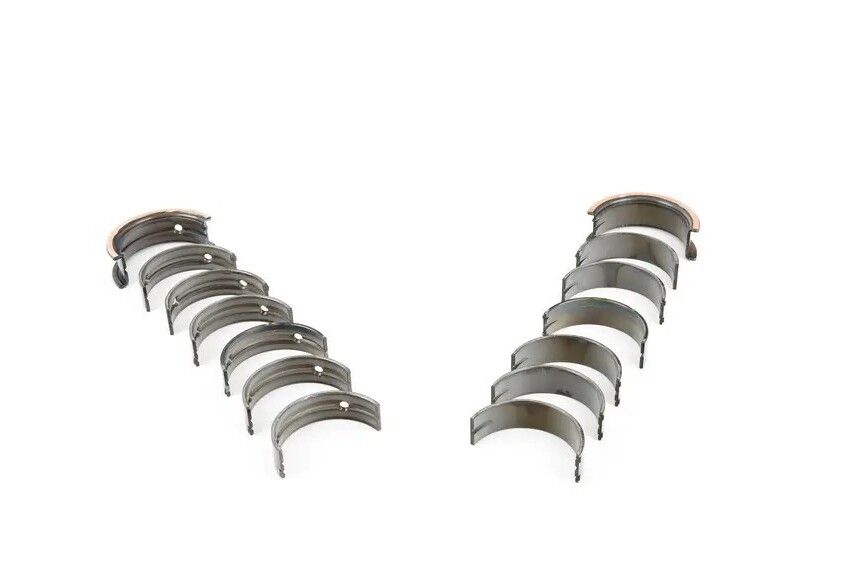

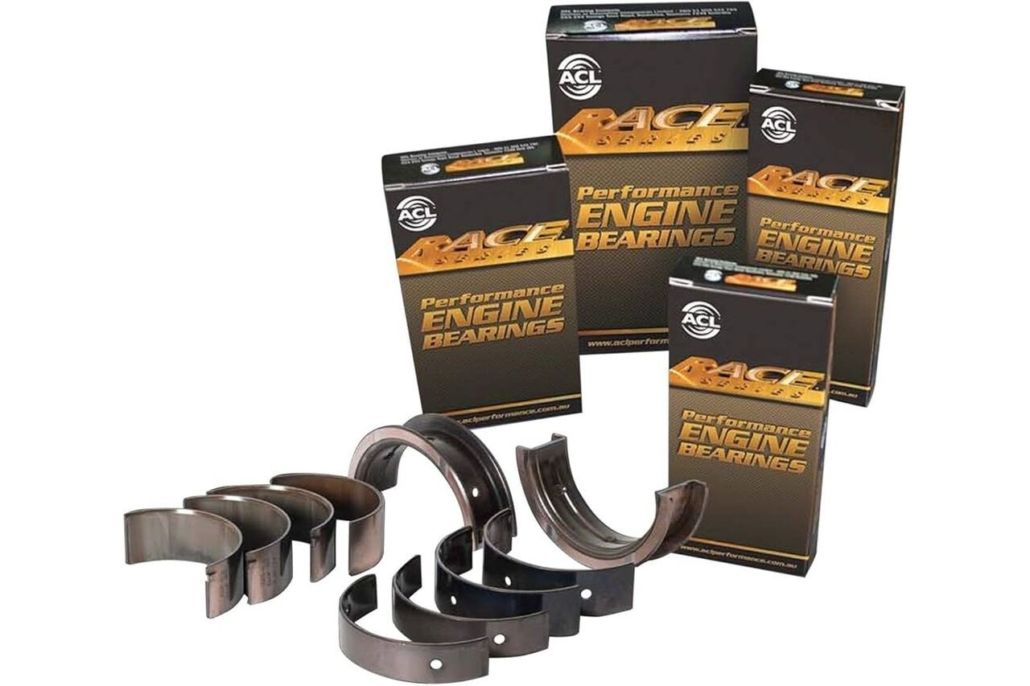

ACL Race Main Bearing Set suit BMW E36 E46 M20 SOHC, M50 M52 M54 DOHC

Description

ACL Race Main Bearing Set suit BMW E36 E46 M20 SOHC, M50 M52 M54 DOHC. Available in STD, .25, .025 sizes. We ship STD unless specified at checkout.

Founded in Tasmania, Australia in 1922, ACL is a globally recognised manufacturer specialising in high-performance engine bearings and components. Known for precision and durability, ACL Bearings are widely used in motorsports and high-performance applications, especially within engines that require reliable support under intense loads. View the full catalogue here

Specifications:

• Half Grooved Set, Lower Half Has 2 Notches
• Material: Race Series (Tri-Metal)
• Position: 1,2,3,4,5 & 7
• Std Shaft Diam: 2.3611″/2.3618″ (59.971mm/59.990mm)
• Oil Clearance: TBA
• Maximum Wall: 0.0980″ (2.488mm)
• Housing Bore: 2.5591″/2.5598″ (65.000mm/65.019mm)
• Max Length: 0.7870″ (20.000mm)
• Position: 6
• Std Shaft Diam: 2.3611″/2.3618″ (59.971mm/59.990mm)
• Oil Clearance: TBA
• Maximum Wall: 0.0980″ (2.488mm)
• Housing Bore: 2.5591″/2.5598″ (65.000mm/65.019mm)
• Max Length: 0.9820″ (24.940mm)

Suits the following engines:

• BMW M50B20 1991cc 6 Cyl DOHC 24V EFI ULP
• BMW M50B25 2495cc 6 Cyl DOHC 24V EFI ULP
• BMW M50B27 2694cc 6 Cyl DOHC 24V EFI ULP
• BMW M52B20 1991cc 6 Cyl DOHC 24V EFI ULP
• BMW M52B25 2495cc 6 Cyl DOHC 24V EFI ULP
• BMW M52B28 2794cc 6 Cyl DOHC 24V EFI ULP
• BMW M20B20 1991cc 6 Cyl SOHC 12V EFI ULP
• BMW M20B25 2495cc 6 Cyl SOHC 12V EFI ULP
• BMW M20B27 2694cc 6 Cyl SOHC 12V EFI ULP
• BMW M54B25 2495cc 6 Cyl DOHC 24V EFI ULP
• BMW M20B23 2317cc 6 Cyl SOHC 12V EFI
• BMW S50B30 2992cc 6 Cyl DOHC 24V EFI ULP
• BMW S50B32 3201cc 6 Cyl DOHC 24V EFI ULP
• BMW S54B32 3247cc 6 Cyl DOHC 24V EFI ULP

Suits the following vehicles:

• 2000 BMW 323Ci Base L6.2494cc
• 1998-2000 BMW 323i Base L6.2494cc
• 1998-1999 BMW 323is Base L6.2494cc
• 1986-1988 BMW 325 Base L6.2693cc
• 2001-2006 BMW 325Ci Base L6.2494cc
• 1984-1987 BMW 325e Base L6.2693cc
• 1986-1987 BMW 325es Base L6.2693cc
• 1987-1995 BMW 325i Base L6.2494cc
• 2001-2005 BMW 325i Base L6.2494cc
• 1987-1995 BMW 325is Base L6.2494cc
• 1988-1991 BMW 325iX Base L6.2494cc
• 2001-2005 BMW 325xi Base L6.2494cc
• 2000 BMW 328Ci Base L6.2793cc
• 1996-2000 BMW 328i Base L6.2793cc
• 1996-1999 BMW 328is Base L6.2793cc
• 2001-2006 BMW 330Ci Base L6.2979cc
• 2001-2005 BMW 330i Base L6.2979cc
• 2001-2005 BMW 330xi Base L6.2979cc
• 1985-1986 BMW 524td Base L6.2443cc
• 1989-1995 BMW 525i Base L6.2494cc
• 2001-2005 BMW 525i Base L6.2494cc
• 1993 BMW 525iT Base L6.2494cc
• 1982-1988 BMW 528e Base L6.2693cc
• 1997-2000 BMW 528i Base L6.2793cc
• 2001-2005 BMW 530i Base L6.2979cc
• 1996-1999 BMW M3 Base L6.3152cc
• 2001-2006 BMW M3 Base L6.3246cc
• 2004-2005 BMW X3 2.5i L6.2494cc
• 2004-2006 BMW X3 3.0i L6.2979cc
• 2001-2006 BMW X5 3.0i L6.2979cc
• 1999-2000 BMW Z3 Coupe L6.2793cc
• 2001-2002 BMW Z3 Coupe L6.2979cc
• 1999-2000 BMW Z3 M Coupe L6.3152cc
• 2001-2002 BMW Z3 M Coupe L6.3246cc
• 1998-2000 BMW Z3 M Roadster L6.3152cc
• 2001-2002 BMW Z3 M Roadster L6.3246cc
• 1999-2002 BMW Z3 Roadster L6.2494cc
• 1997-2000 BMW Z3 Roadster L6.2793cc
• 2001-2002 BMW Z3 Roadster L6.2979cc
• 2003-2005 BMW Z4 2.5i L6.2494cc
• 2003-2005 BMW Z4 3.0i L6.2979cc
• 2006-2008 BMW Z4 M Coupe L6.3246cc
• 2006-2008 BMW Z4 M Roadster L6.3246cc

Manufacturer Part Number: 7M1532H-STD
