Description

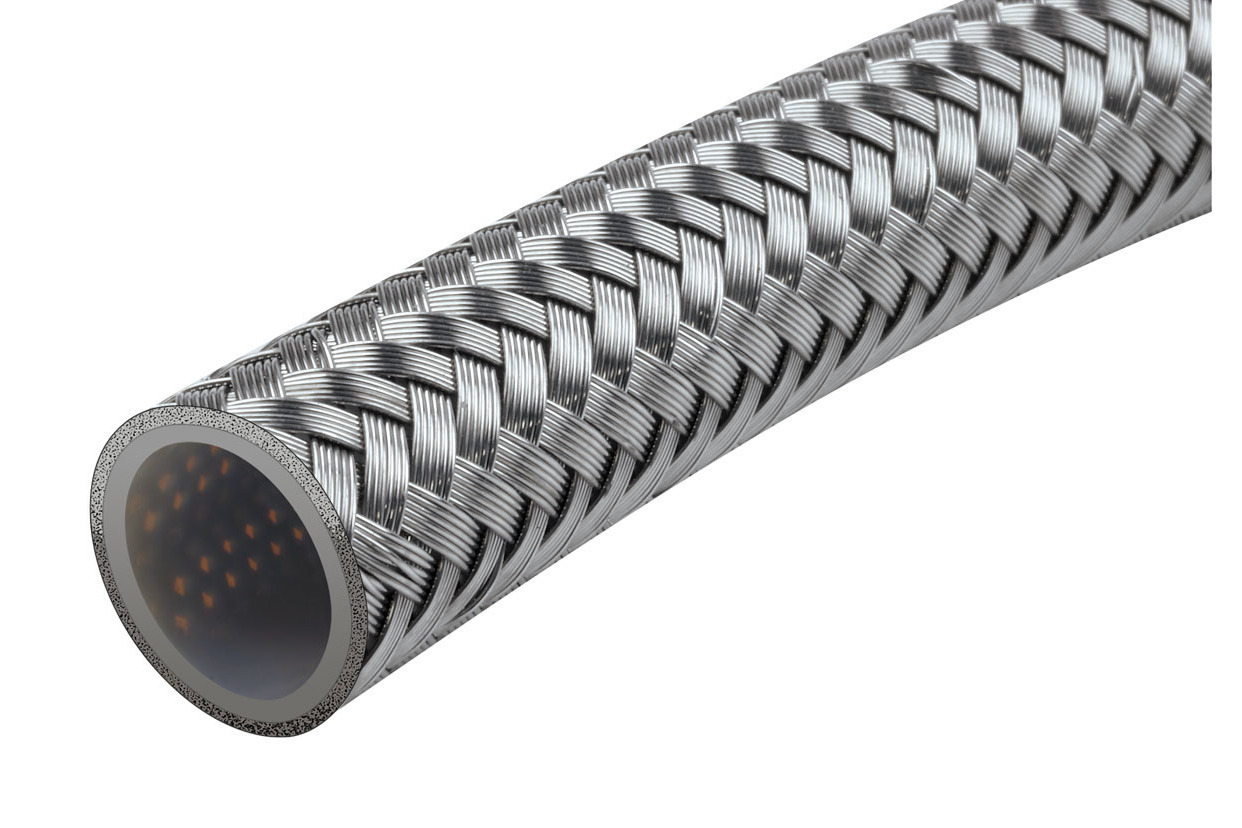

Raceworks AN-6 200 Series Stainless Braided Teflon Hose – 5m.
Raceworks 200 Series Teflon Braided Hose is constructed from a PTFE (Teflon) inner tube that is compatible with all fuels, oils and nitrous, including brake and clutch fluids. The PTFE (Teflon) tube is covered by a stainless steel outer cover that is durable, abrasion and expansion resistant. The Raceworks 200 Series Hose is the best option for use on fuel systems as it wont allow the permeation of fuel smell, and has the highest pressure and temperature rating in the range of Raceworks hoses.
Specifications:
- Temperature Range: -70°C to 250°C
- Fuel type: Ethanol & Methanol Safe
- Inside Diameter: 5/16″ / 7.9mm
- Outside Diameter: 15/32″ / 11.8mm
- Burst Pressure: 2500psi
- Weight per Metre: 139g
- Radius bend: 1.30″ / 33mm
All Raceworks products come with a 2 year warranty.
Raceworks Part Number: RWH-200-06-5M
Also Known As: AF200-06-4.5M
